Question:
- Epson TM-88 Dipswitch Settings
- Epson TM-88 Printer Configuration
- Epson TM-88 Calibration
- How do I see my Epson TM-88 printer settings
Environment:
- Epson TM-88 Printer
Answer:
The Epson TM-88 has physical dip switches that control some of the printers settings. Some of these dip switch settings are used for serial communication to the meters. These communication settings need to match the printer communication settings that are set on the meter (Handshaking, Parity Check, Parity Selection, Baud Rate).
*Note: Sometimes the default printer settings do not match the meter's default settings Or the printer communication settings may have been changed on your meter.

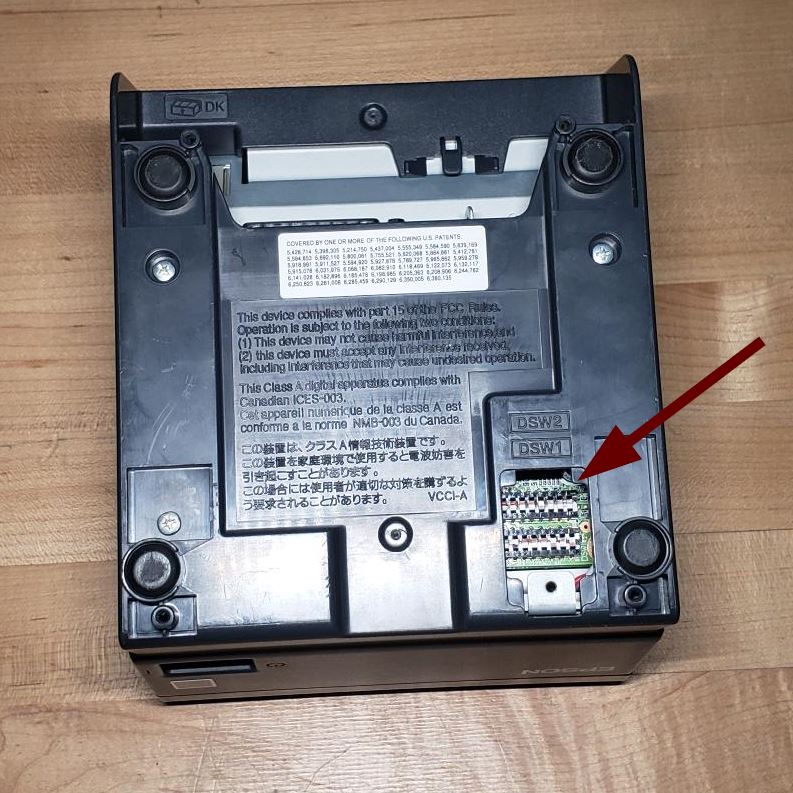

The dip switches are located on the bottom of the printer under a service cover.

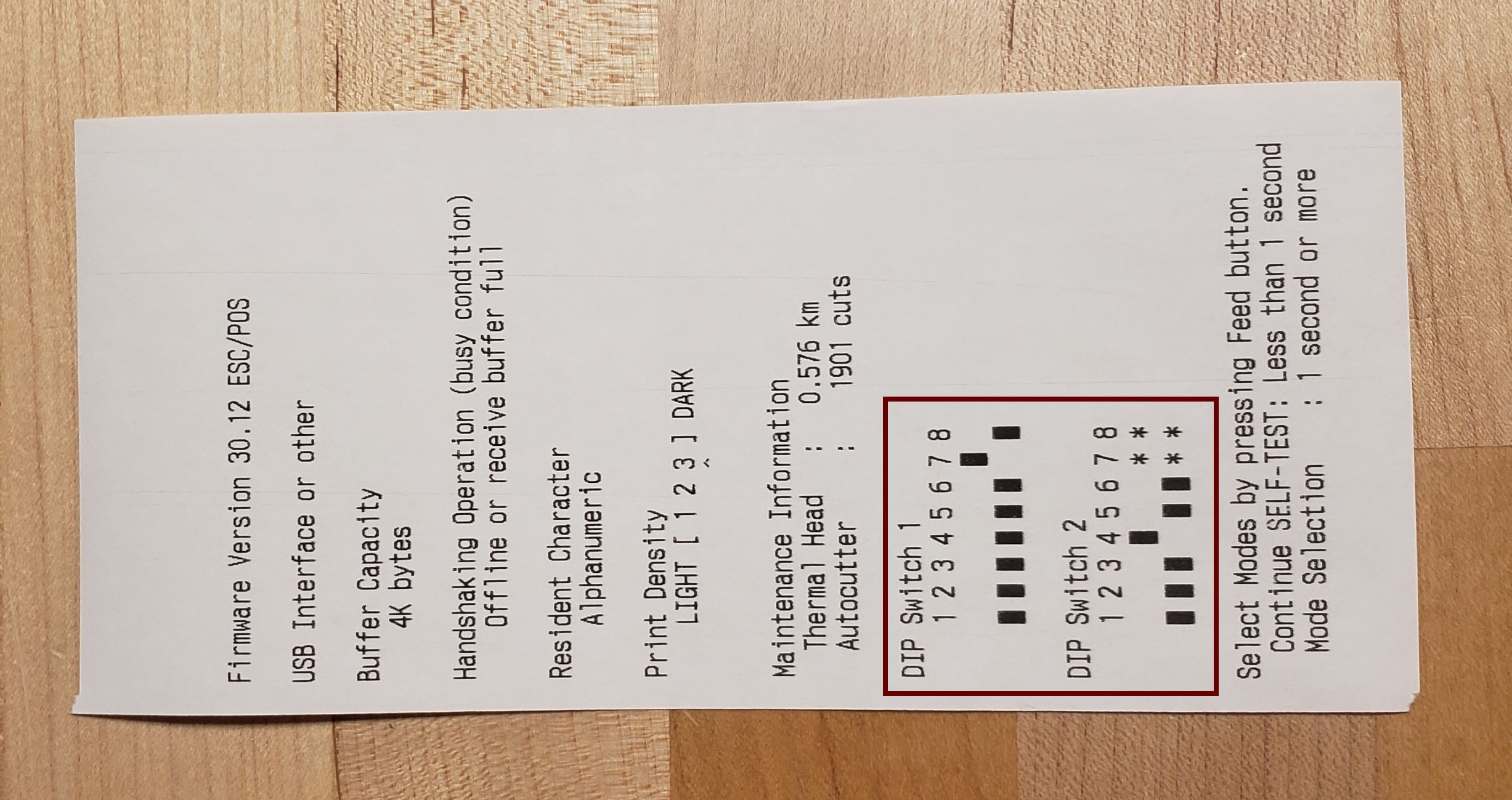

These dip switches can be difficult to see what position they are in. You can print a Configuration Ticket to see exactly what position the dip switches are on.
How To Print An Epson TM-88 Configuration Ticket
Here are the recommended dip switch settings below.
Dip Switch Bank 1
| Dip Switch | Function | ON | OFF | Recommended |
| 1 | Data Reception Error | Ignored | Prints a "?" | *Optional |
| 2 | Receive Buffer Capacity | 45 bytes | 4 KB | OFF |
| 3 | Handshaking | XON/XOFF | DTR/DSR | OFF |
| 4 | Word Length | 7 bits | 8 bits | OFF |
| 5 | Parity Check | Yes | No | OFF |
| 6 | Parity Selection | Even | Odd | OFF |
| 7 | Baud Rate | See Grid Below | See Grid Below | ON |
| 8 | Baud Rate | See Grid Below | See Grid Below | OFF |
Dip Switch 7 & 8 work together to set the Baud Rate.
| Baud Rate | Dip Switch 7 | Dip Switch 8 |
| 4800 | OFF | ON |
| 9600 (Default) *Recommended | ON | OFF |
| 19200 | OFF | OFF |
| Depends on memory switches (Customized Value) | ON | ON |
Dip Switch Bank 2
| Dip Switch | Function | ON | OFF | Recommended |
| 1 | Handshaking (Busy condition) | Buffer Full | Offline | OFF |
| 2 | Reserved (Do NOT Change) | OFF | OFF | OFF |
| 3 | Print Density | See Grid Below | See Grid Below | *Optional |
| 4 | Print Density | See Grid Below | See Grid Below | *Optional |
| 5 | Release condition buffer Busy | 138 bytes | 256 bytes | OFF |
| 6 | Reserved (Do NOT Change) | OFF | OFF | OFF |
| 7 | I/F pin 6 reset signal | Enabled | Disabled | OFF |
| 8 | I/F pin 25 reset signal | Enabled | Disabled | OFF |
Dip Switch 3 & 4 work together to set the
| Print Density | Dip Switch 3 | Dip Switch 4 |
| Do Not Set Density | ON | ON |
| Print density (standard) | OFF | OFF |
| Print density (darker than standard) | ON | OFF |
| Print density (dark) | OFF | ON |
