How to print a calibration ticket on a Neptune E4000 meter

Question:

How do I print a calibration ticket on a Neptune E4000 meter?


Environment:

  • New Mobile Delivery
  • Neptune E4000

Answer:

Please follow the steps below to print a calibration ticket on a Neptune E4000 register.

  1. First navigate to the main menu. You can press Stop/Cancel button several times to back all the way out to the main menu.


  2. On the main menu use the Arrow > button to select Route until it is flashing and press the Start/Enter button.

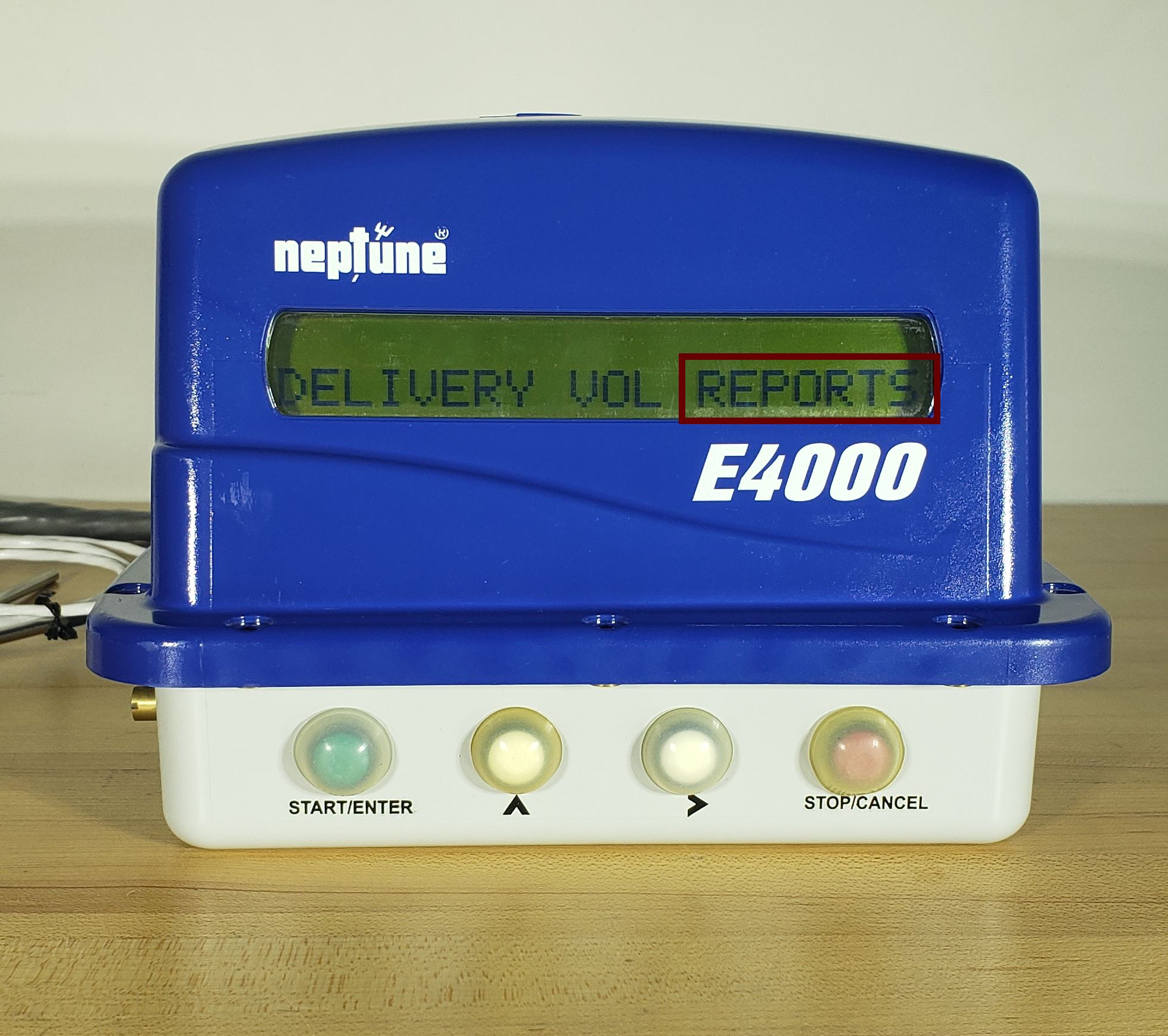

  3. Then use the Arrow > button to select Reports and press the Start/Enter button.

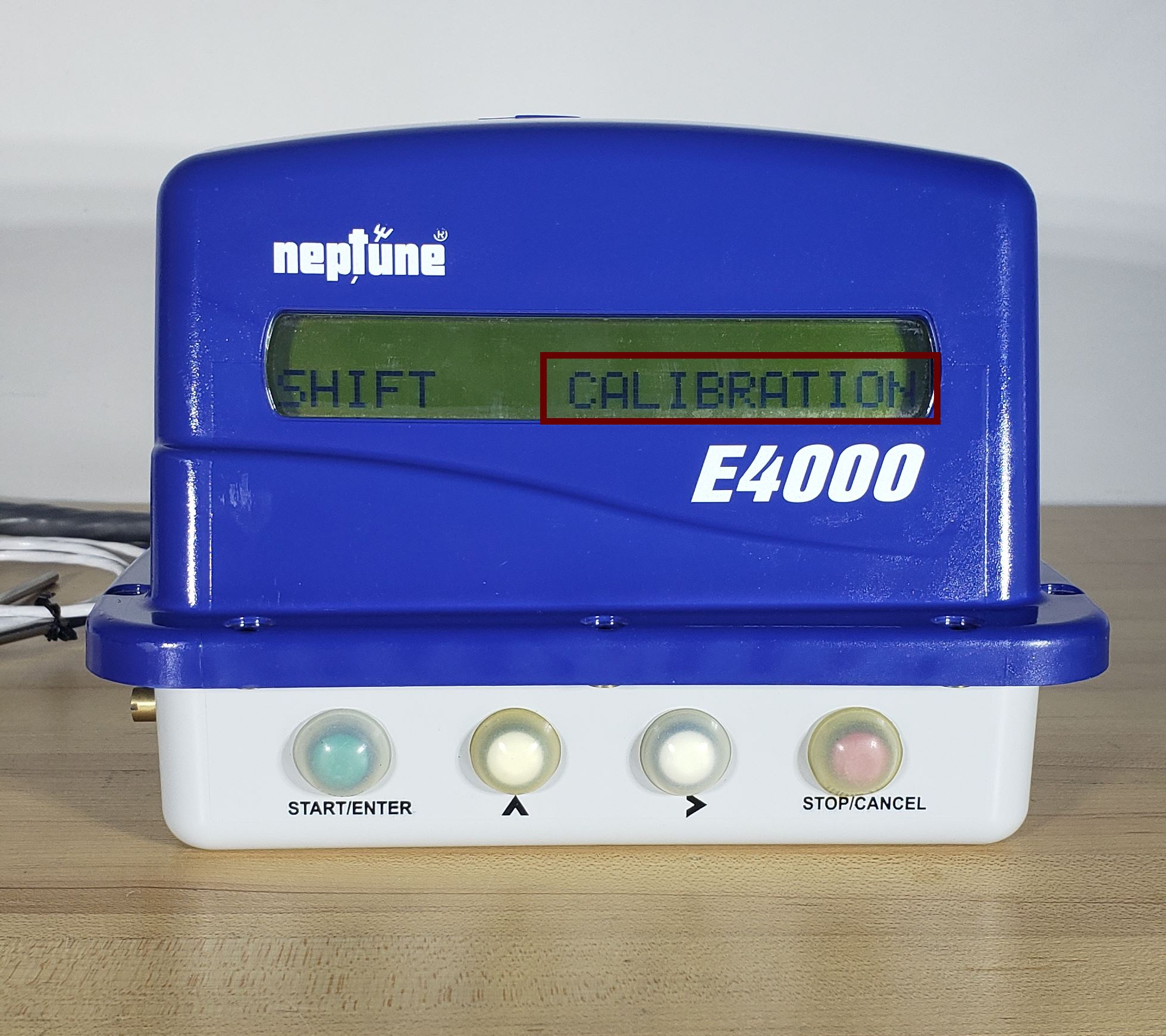

  4. Then use the Arrow > button to select Calibration and press the Start/Enter button.

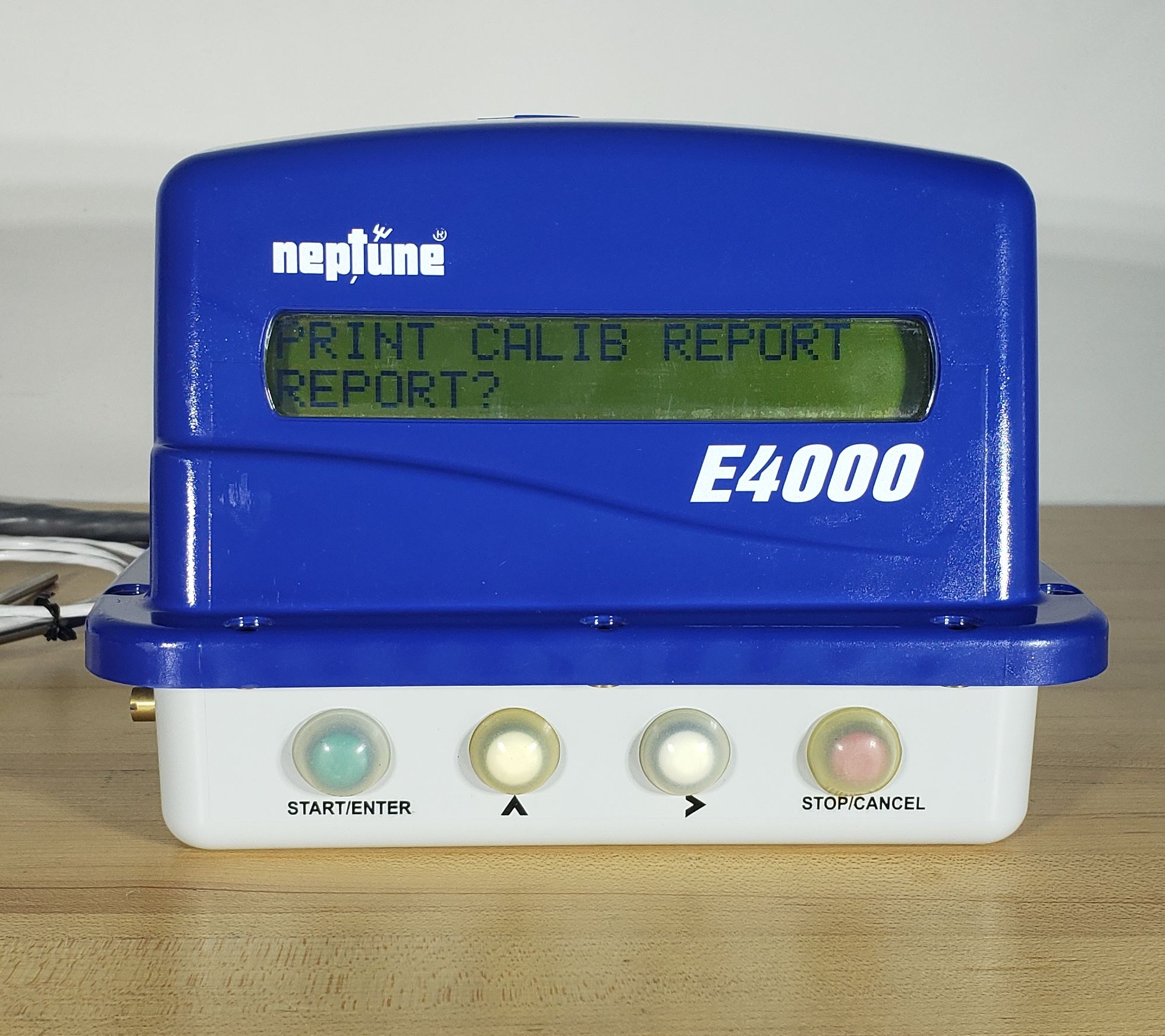

  5. Press the Start/Enter button when you are prompted with "Print Calib Report Report?" to print the calibration ticket.

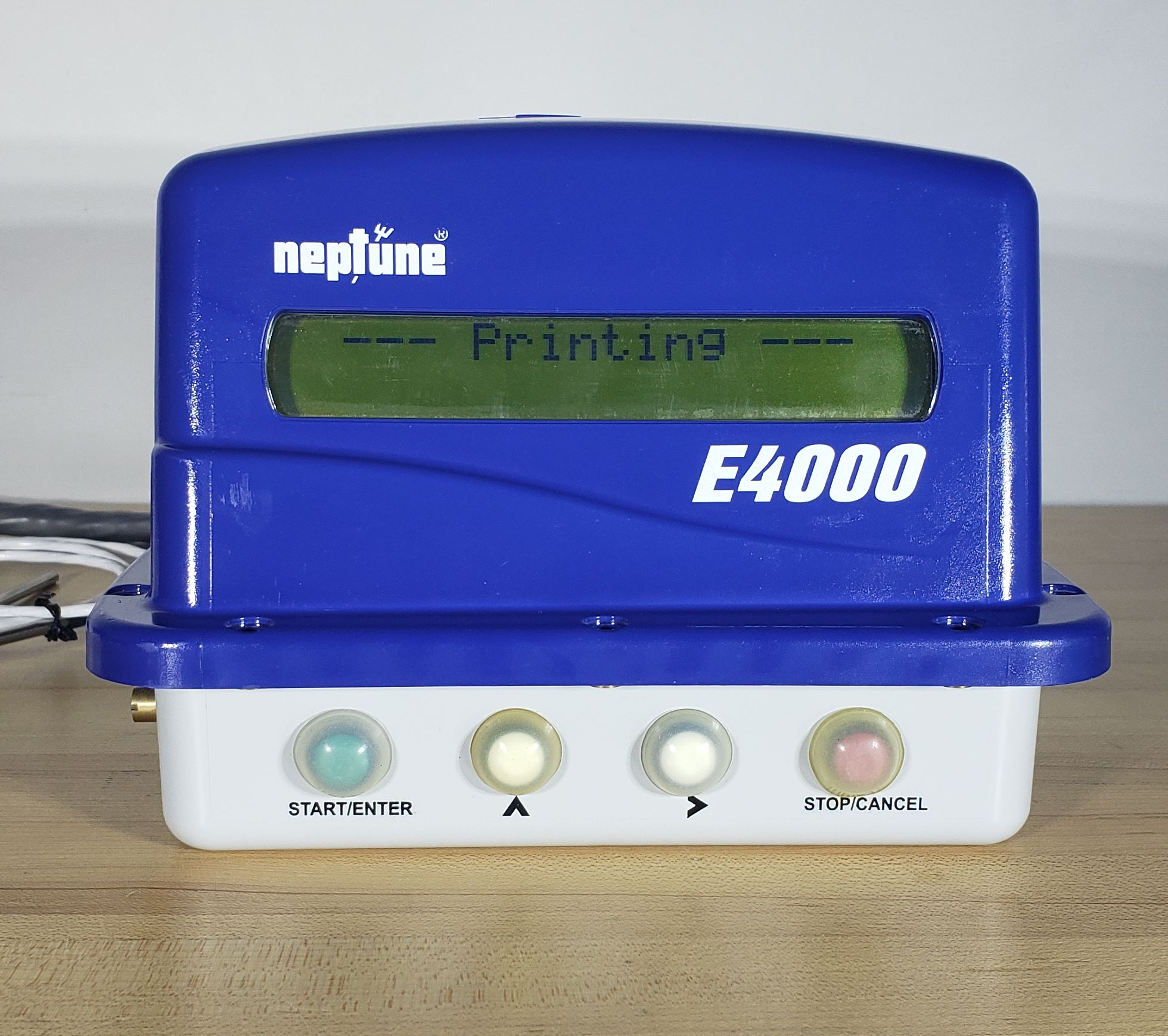

  6. You should see "--- Printing ---" on the screen and the calibration ticket should start printing within a few seconds.


  7. Here is an example of an E4000 calibration ticket.


  8. Press the Stop/Cancel button a few times to back out to the main screen.
