Article Summary:
This article shows you the I/O configuration for the dual LCR.iQ network setup.
Environment:
- Cargas Energy
- New Mobile Delivery
- Liquid Controls LCR.iQ register
Step 1:
- Put the LCR.iQ in configuration mode. Here is an article that shows you how to.
How do I put the LCR iQ meter in configuration mode?

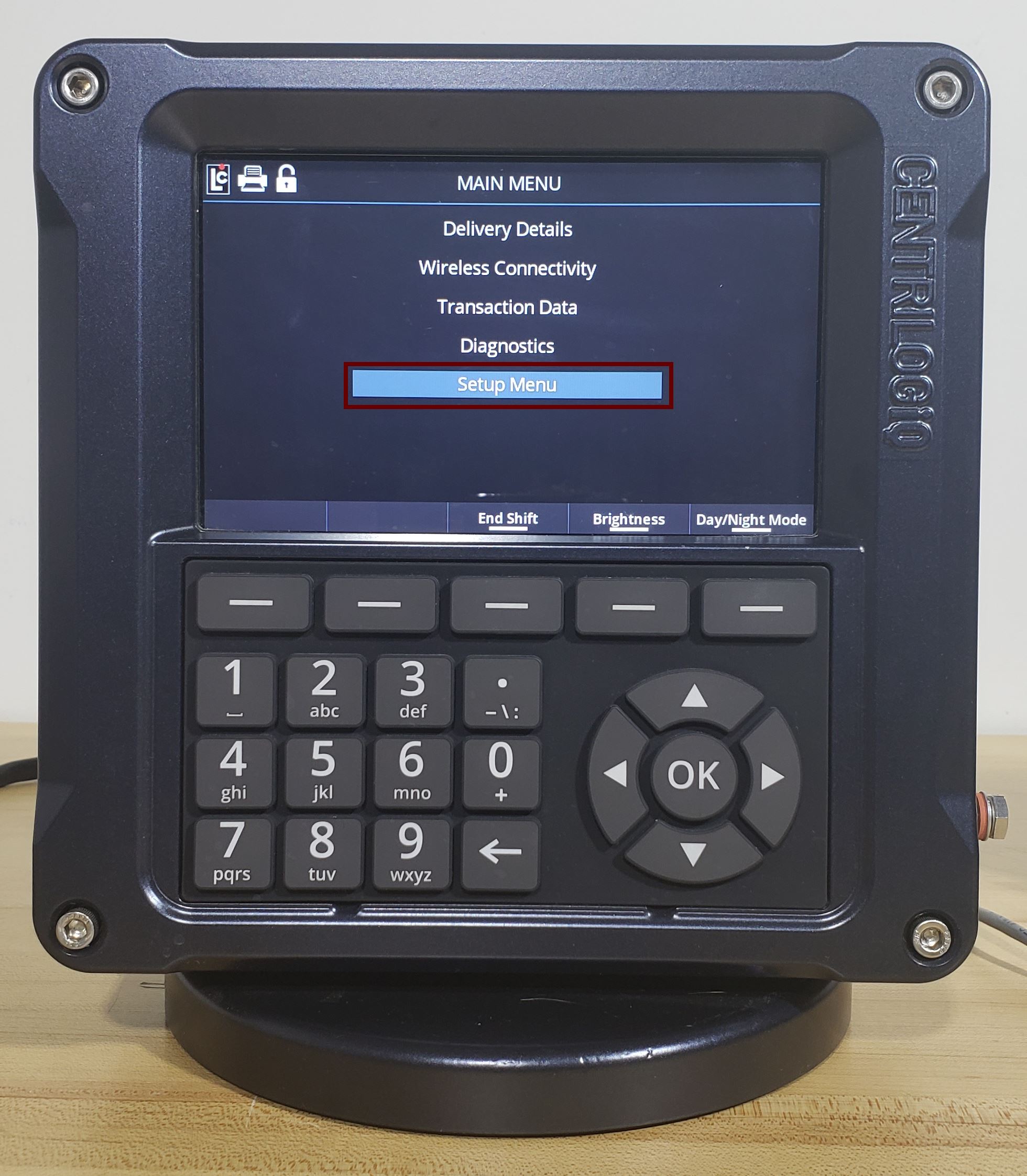

- Use the OK & Arrow buttons to navigate to Setup Menu

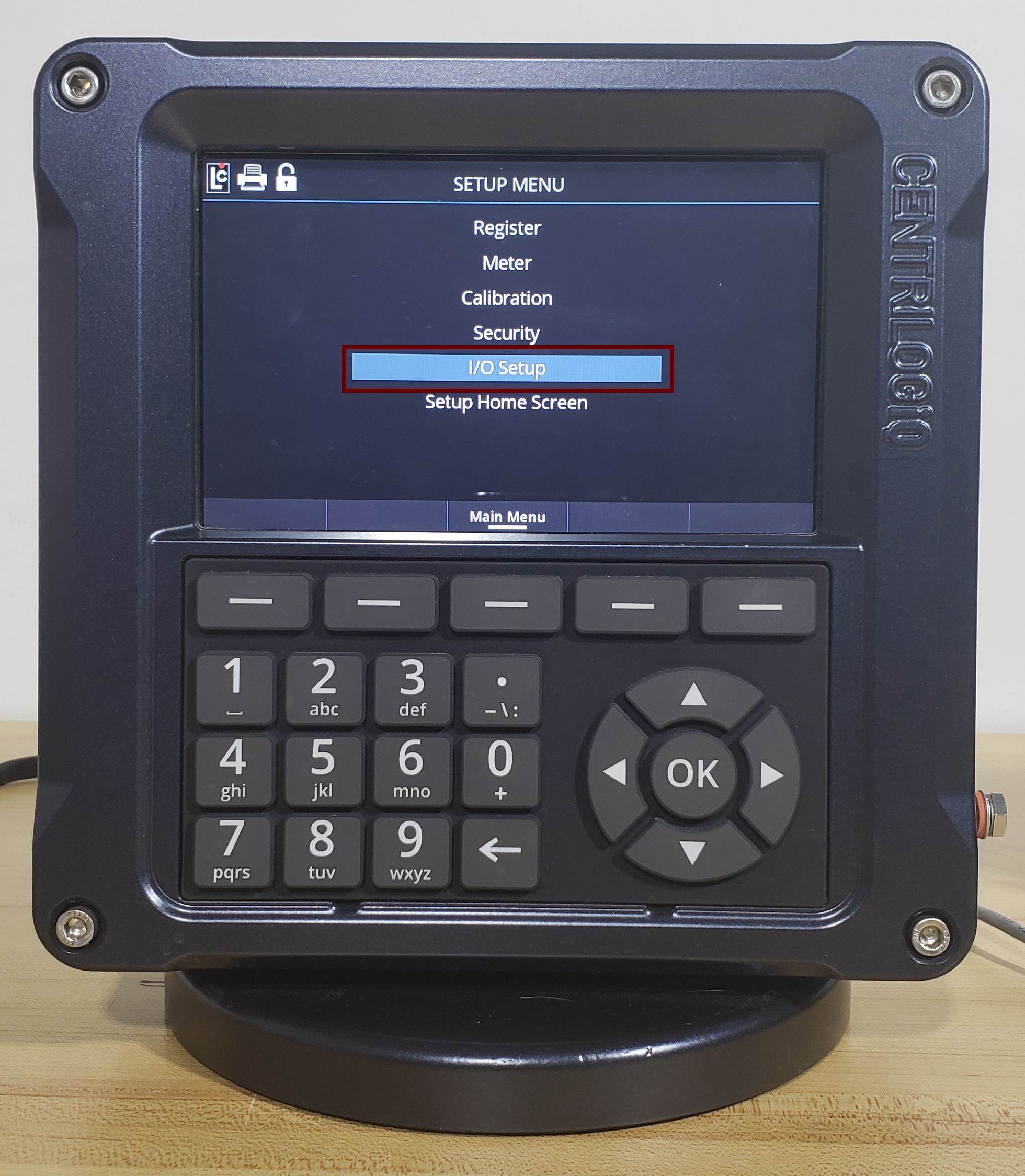

- Then Navigate to I/O Setup
Meter 1:

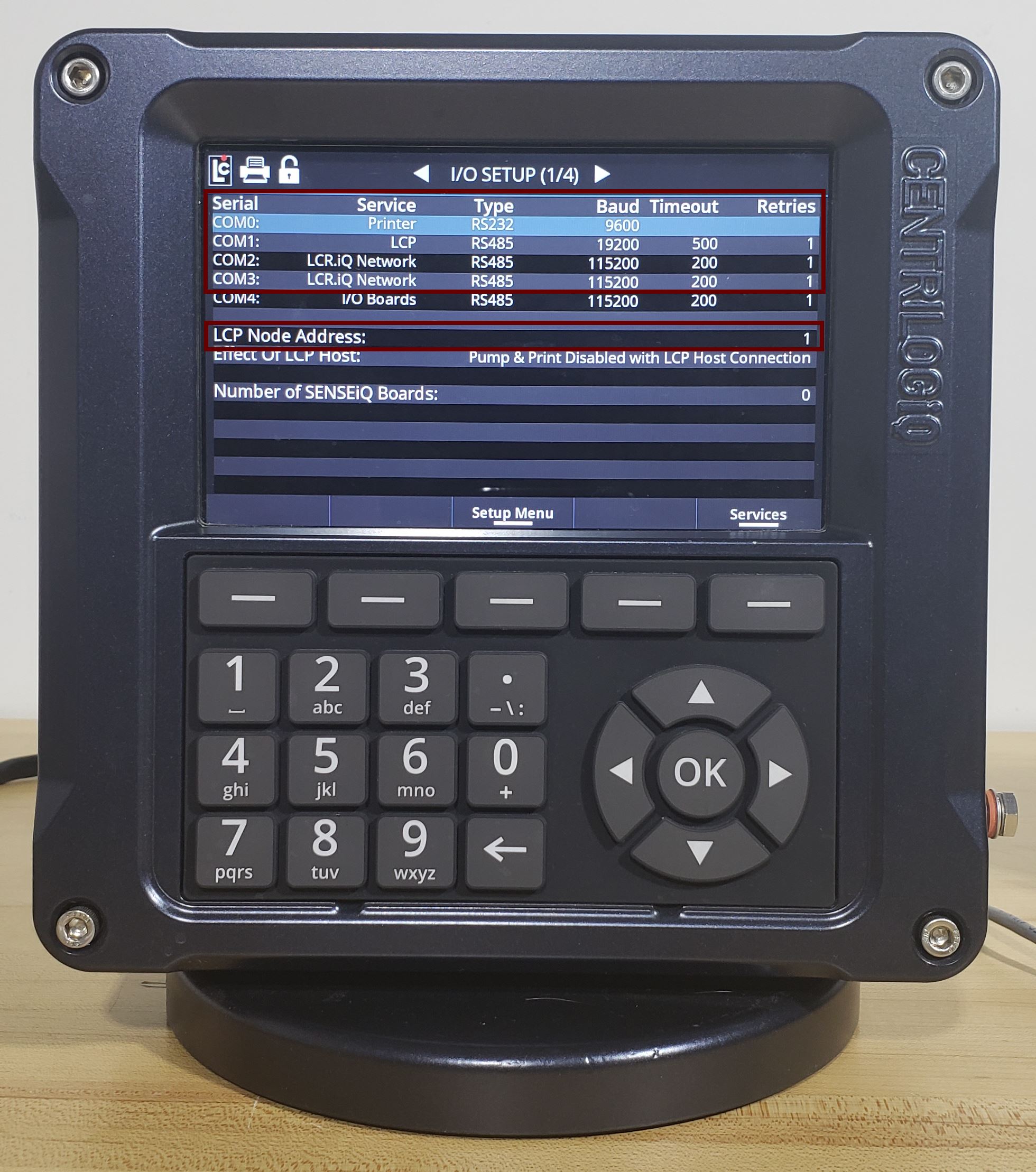

I/O SETUP(1/4) Screen
| Serial | Service | Type | Baud | Timeout | Retries |
| COM0: | Printer | RS232 | 9600 | ||
| COM1: | LCP | RS485 | 19200 | 500 | 1 |
| COM2: | LCR.iQ Network | RS485 | 115200 | 200 | 1 |
| COM3: | LCR.iQ Network | RS485 | 115200 | 200 | 1 |
| LCP Node Address: |
1 |

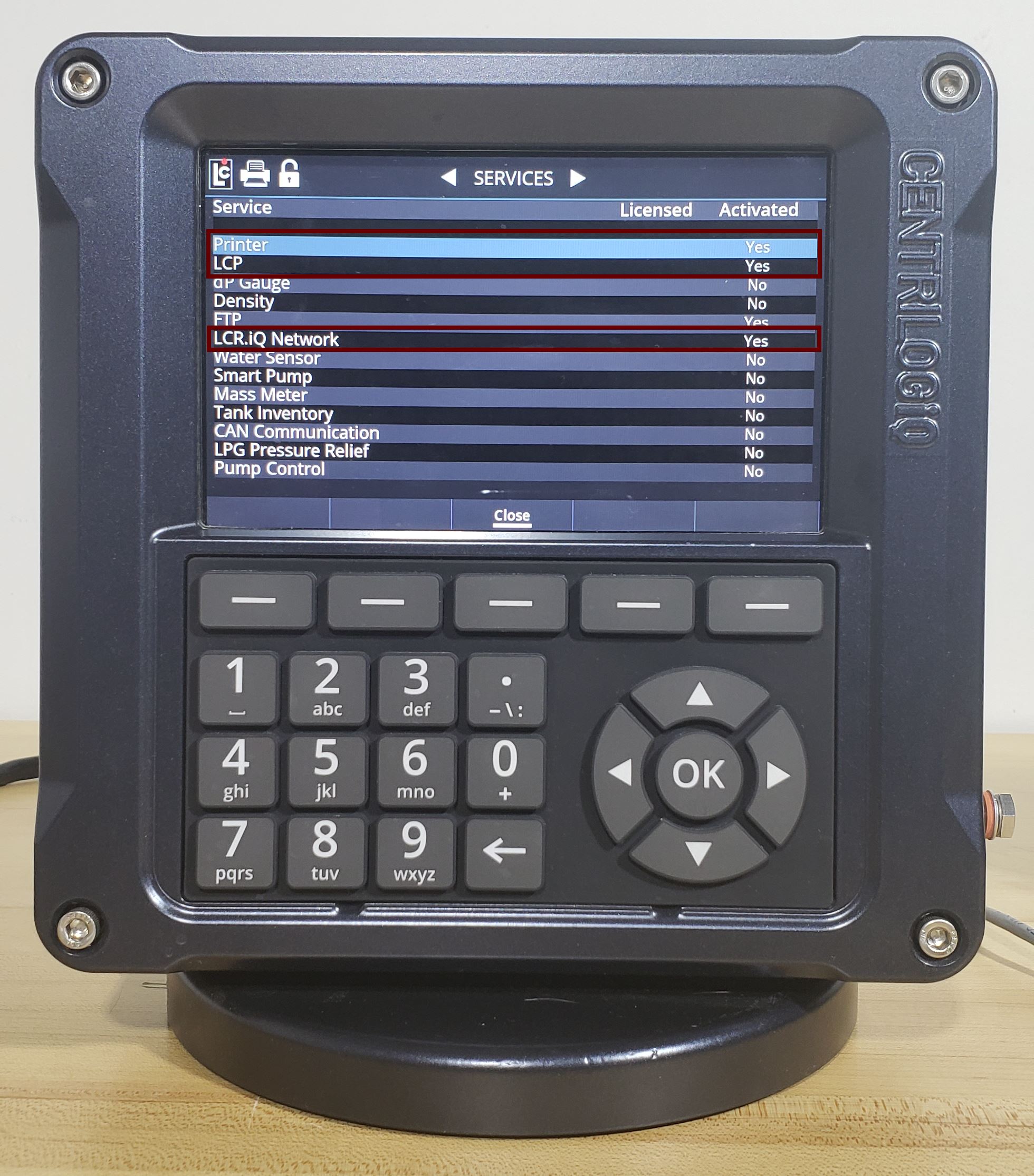

Services Screen

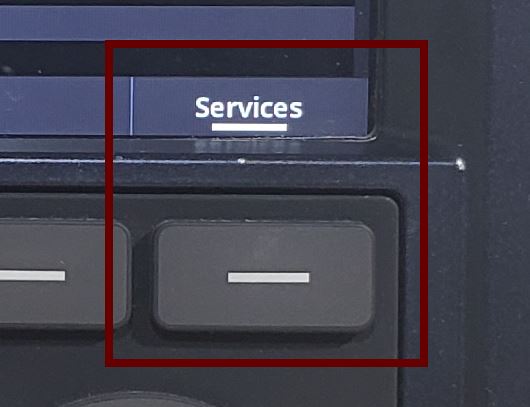

- Press the Services button on I/O SETUP(1/4) screen
| Service | Activated |
| Printer | Yes |
| LCP | Yes |
| LCR.iQ Network | Yes |

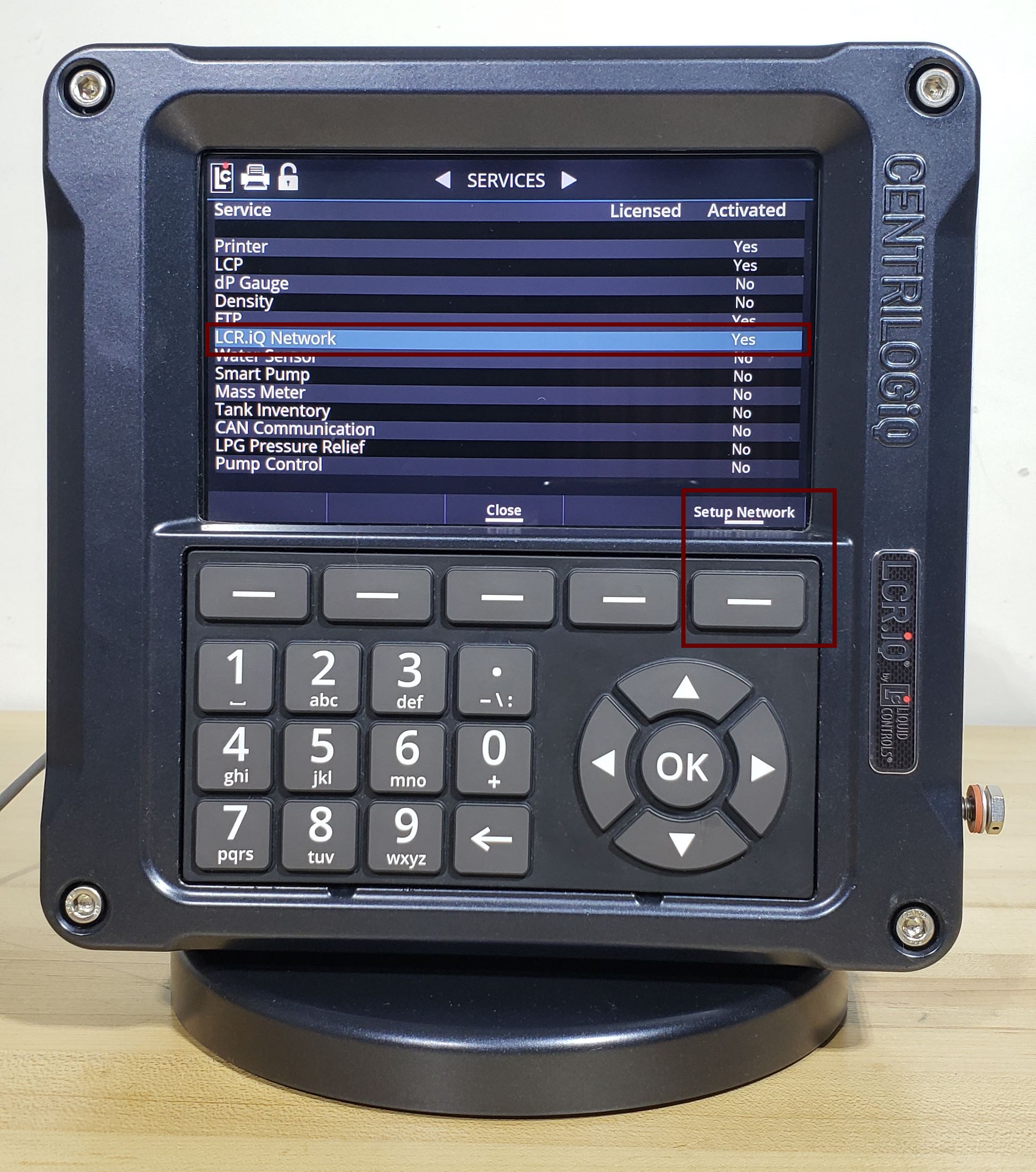

- Highlight LCR.iQ Network and press the Setup Network button

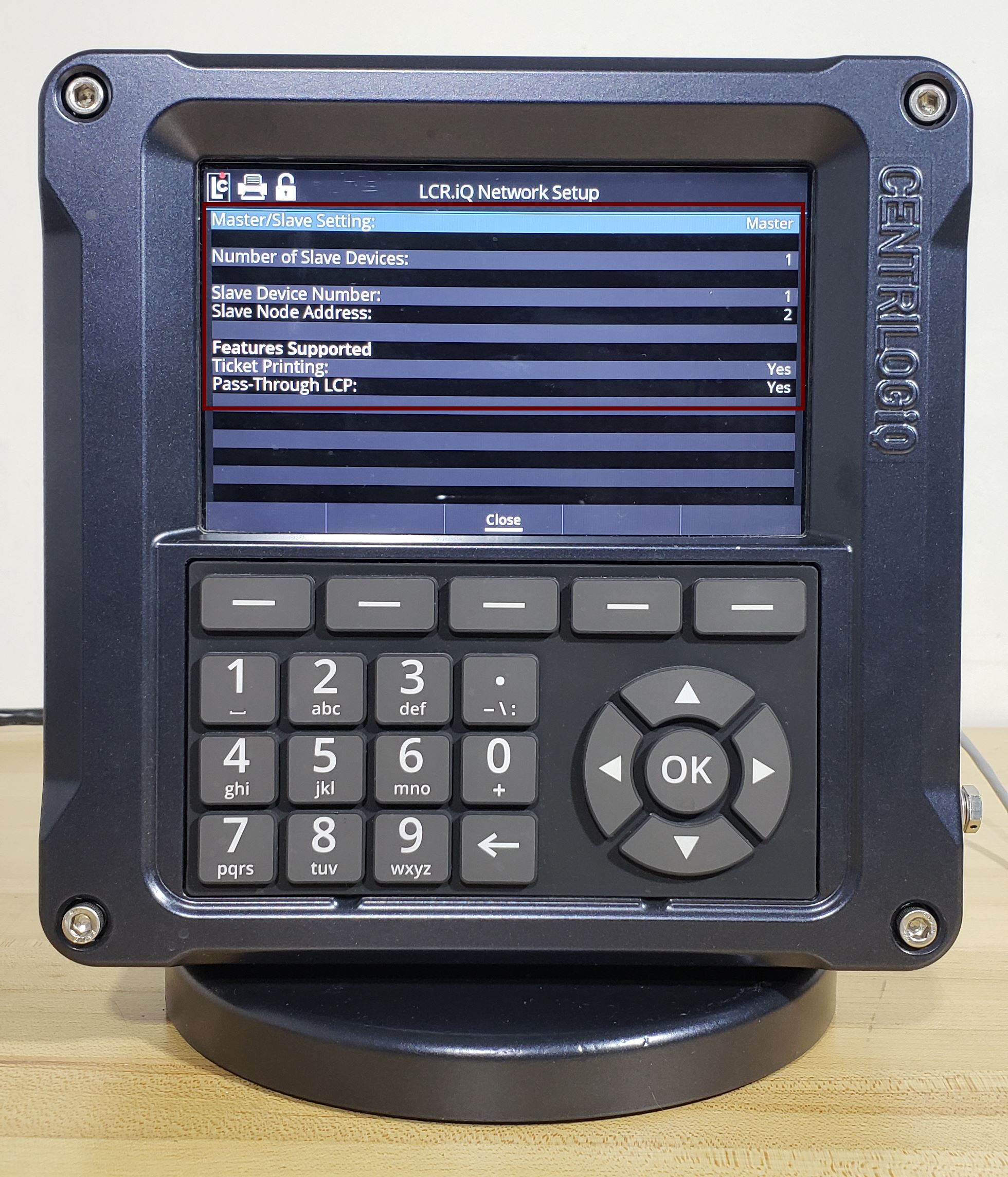

Network Setup Screen
| Master/Slave Setting: | Master |
| Number of Slave Devices: |
1 |
| Slave Device Number: | 1 |
| Slave Node Address: | 2 |
| Ticket Printing: | Yes |
| Pass-Through LCP: | Yes |
Meter 2:

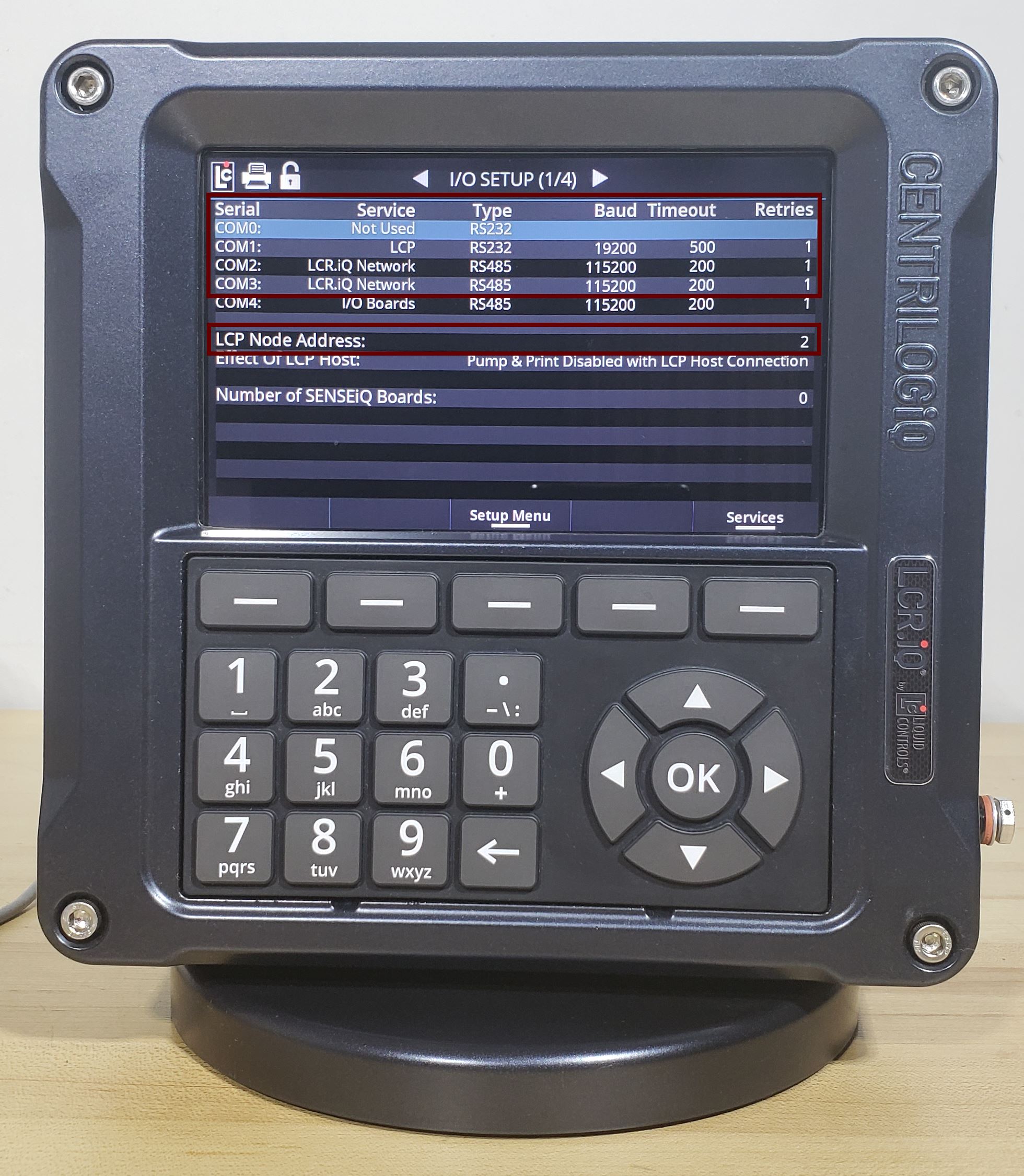

I/O SETUP(1/4) Screen
| Serial | Service | Type | Baud | Timeout | Retries |
| COM0: | Not Used | RS232 | |||
| COM1: | LCP | RS485 | 19200 | 500 | 1 |
| COM2: | LCR.iQ Network | RS485 | 115200 | 200 | 1 |
| COM3: | LCR.iQ Network | RS485 | 115200 | 200 |
1 |
| LCP Node Address: |
2 |

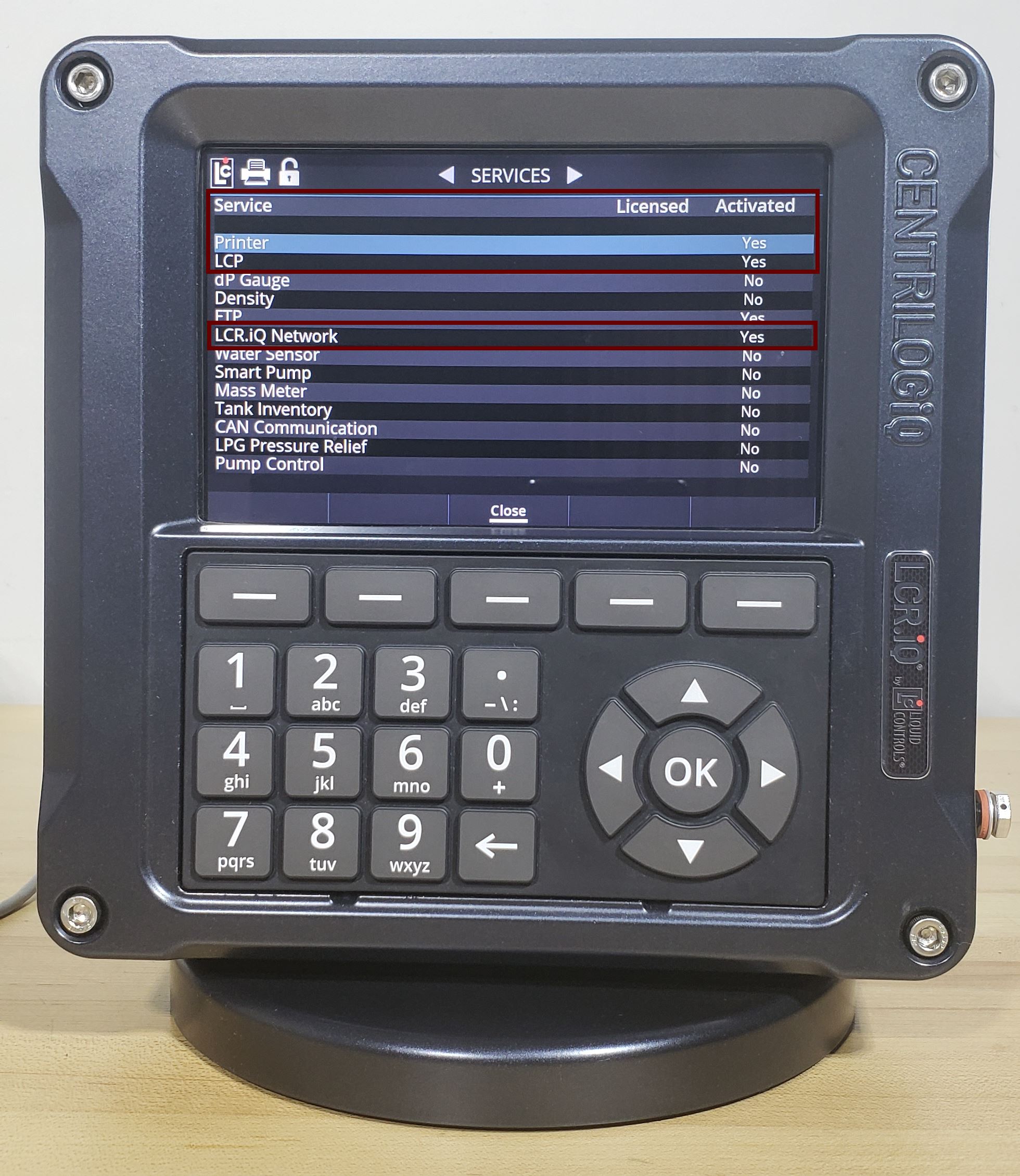

Services Screen
- Services button on I/O SETUP(1/4) screen
| Service | Activated |
| Printer | Yes |
| LCP | Yes |
| LCR.iQ Network | Yes |

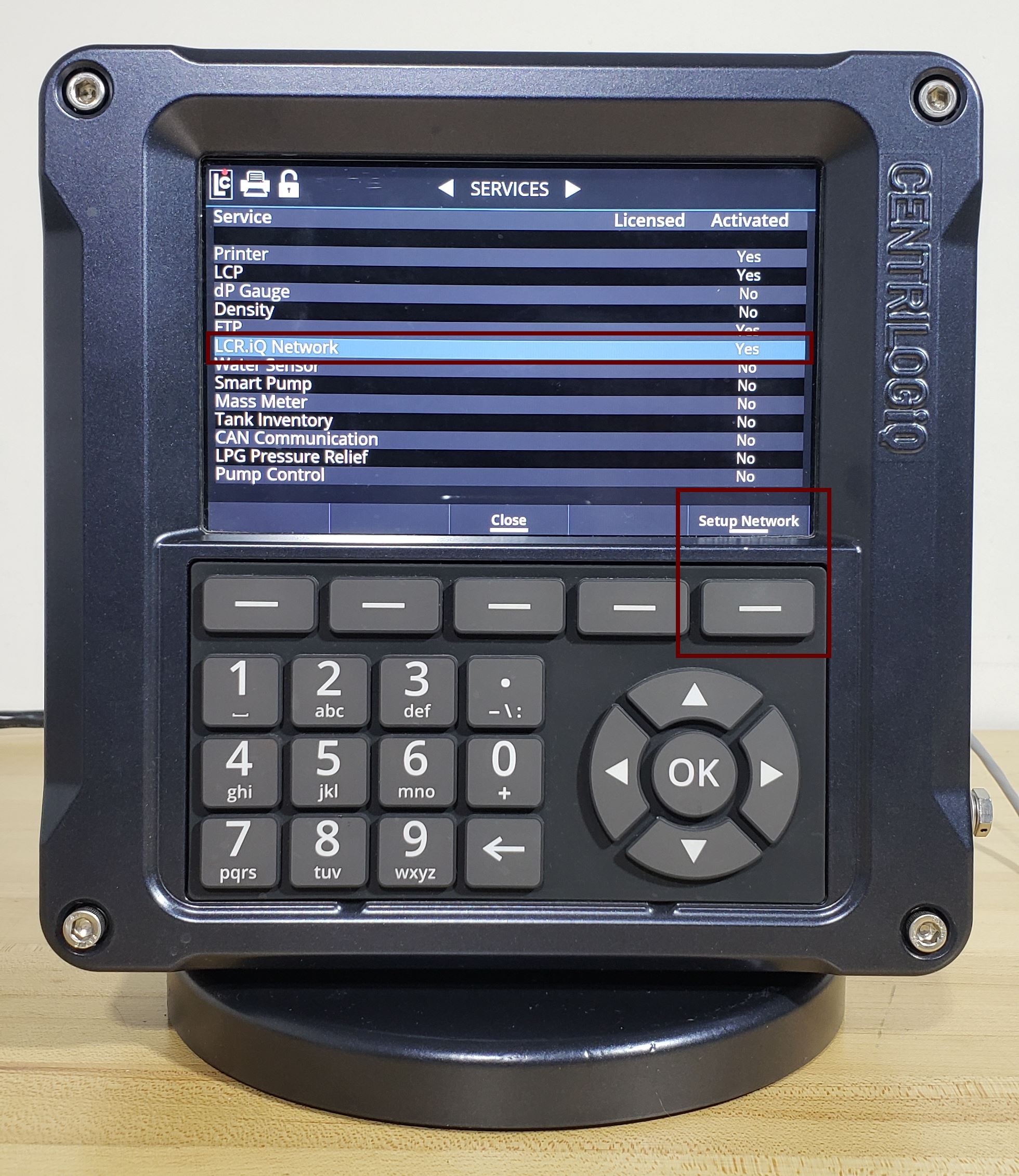

- Highlight LCR.iQ Network and press the Setup Network button

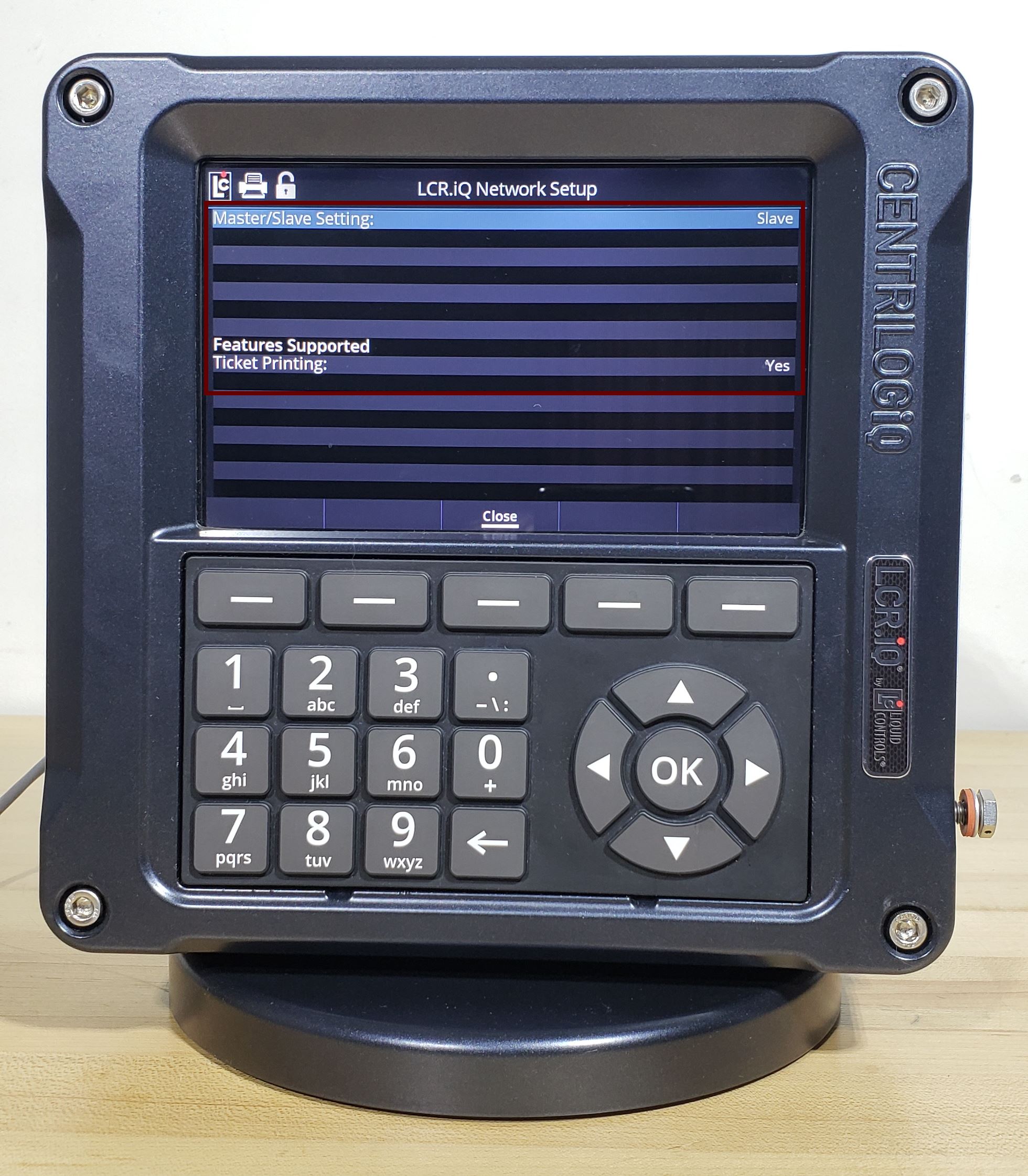

Network Setup Screen
| Master/Slave Setting: | Slave |
| Ticket Printing: | Yes |
Additional Info:
- Back to the beginning - Dual LCR-iQ Meter Configuration Guide - LCR.iQ Network
