Android Tablet with A Single Liquid Controls LCR iQ and Epson TM-T88 Thermal Printer Wiring Setup

Question:

How do I wire an Android tablet with a Liquid Controls LCR iQ meter and Epson TM-88 Printer?


Environment:

  • New Mobile Delivery
  • Android Tablet
  • Liquid Controls LCR.iQ Meter
  • Epson TM-88V Thermal Printer
  • Epson TM-88VI Thermal Printer
  • Epson TM-88VII Thermal Printer

Answer:

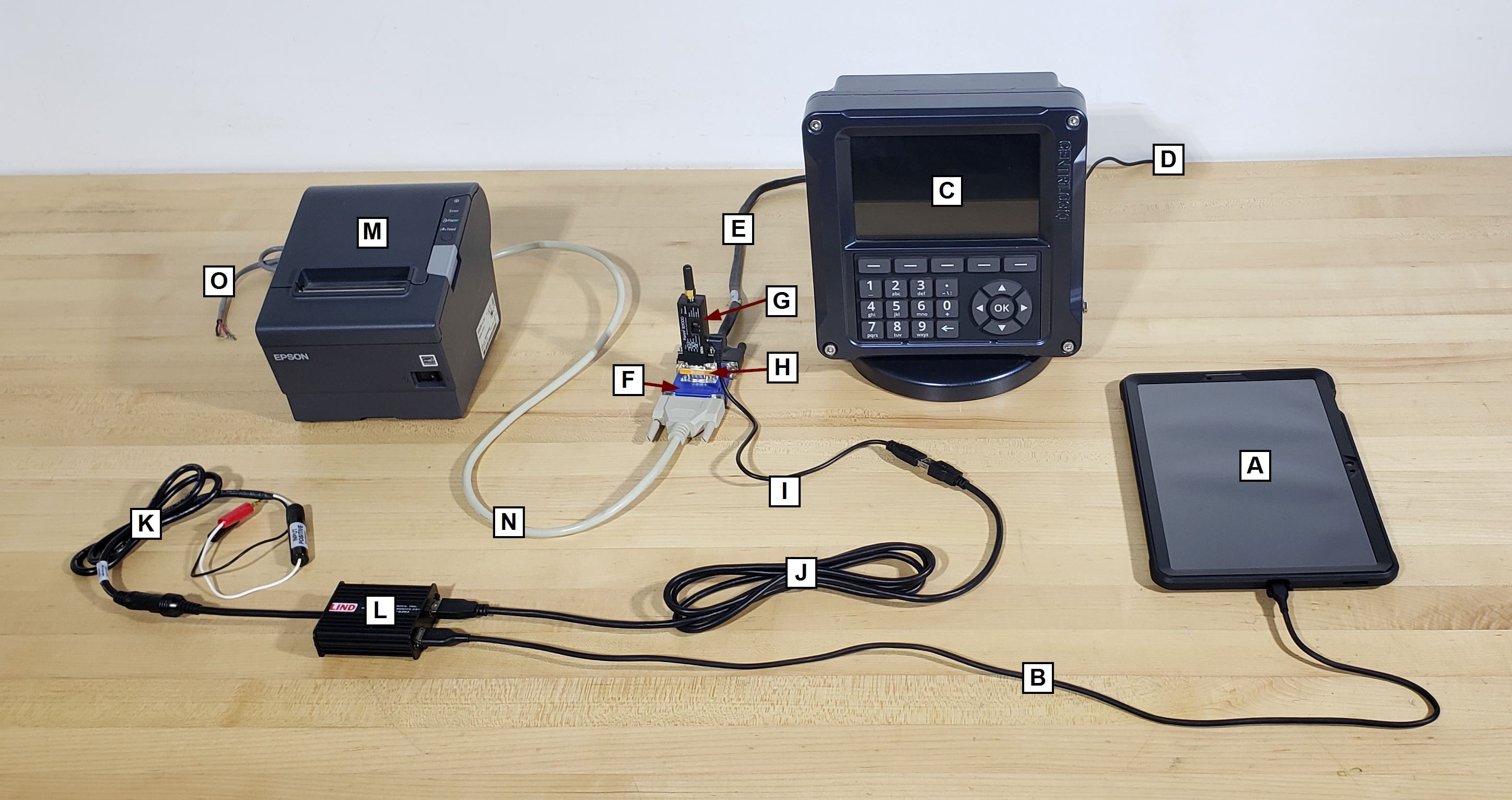

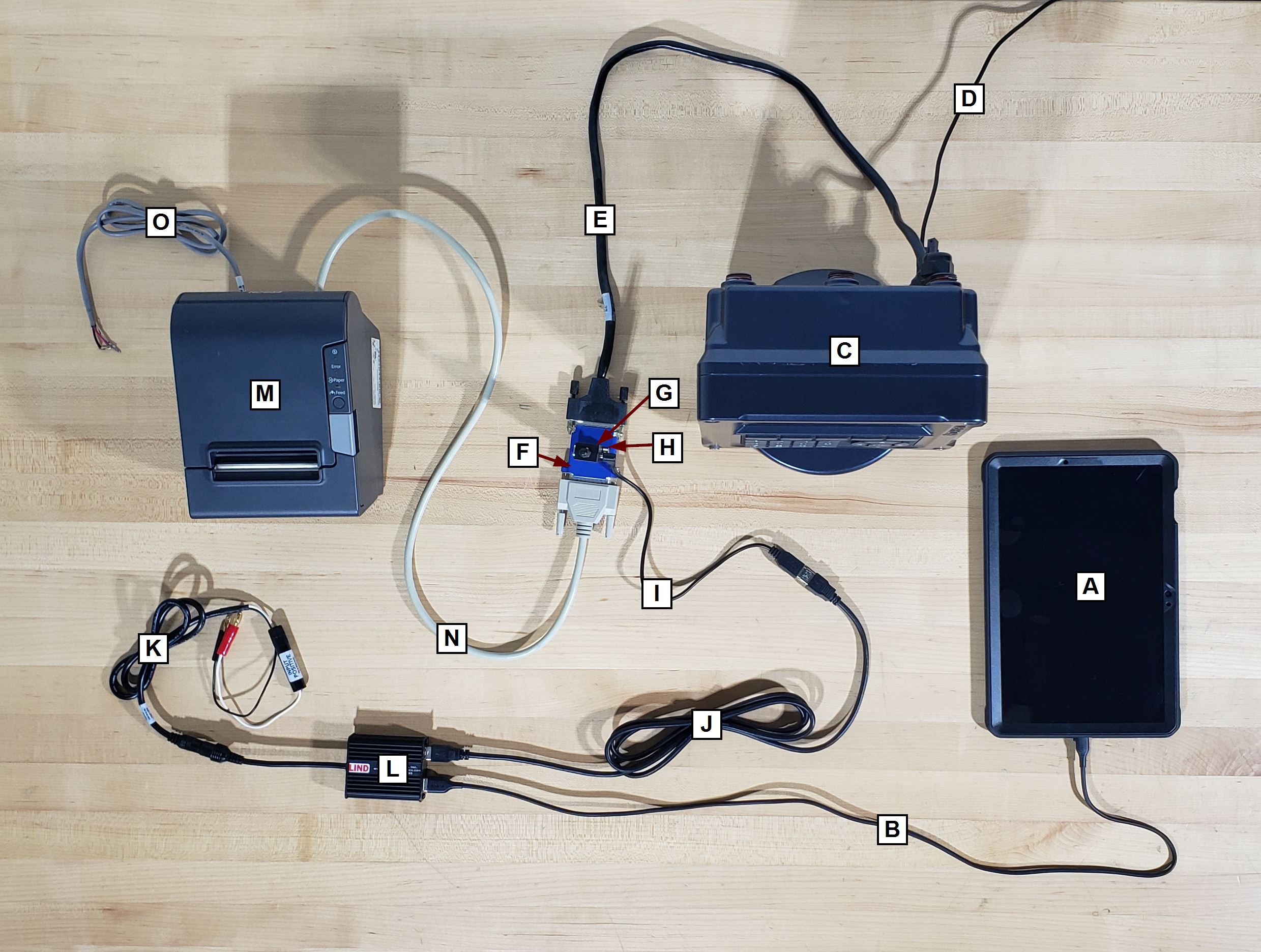

A  Android Tablet I  Parani USB Power Cable
B  Android USB Charging Cable J  USB A 6ft Extension Cable
C  Liquid Controls LCR.iQ Meter K  Lind Power Adapter Power Cable
 (to fused truck power)
D  Liquid Controls LCR.iQ Power Cable L  Lind Power Adapter
E  Liquid Controls LCR.iQ Communication Cable M  Epson TM-T88 Thermal Printer
F  Liquid Controls Lap Pad Adapter N  DB25 25Pin Serial Male/Female RS232 Cable
 Click Here For Amazon Link
G  Parani Bluetooth Adapter O  Epson TM-T88 Power Cable
 (to fused truck power)
H  Parani DB9 Null Modem Adapter M/M



Click Here to enlarge picture


Click Here to enlarge picture

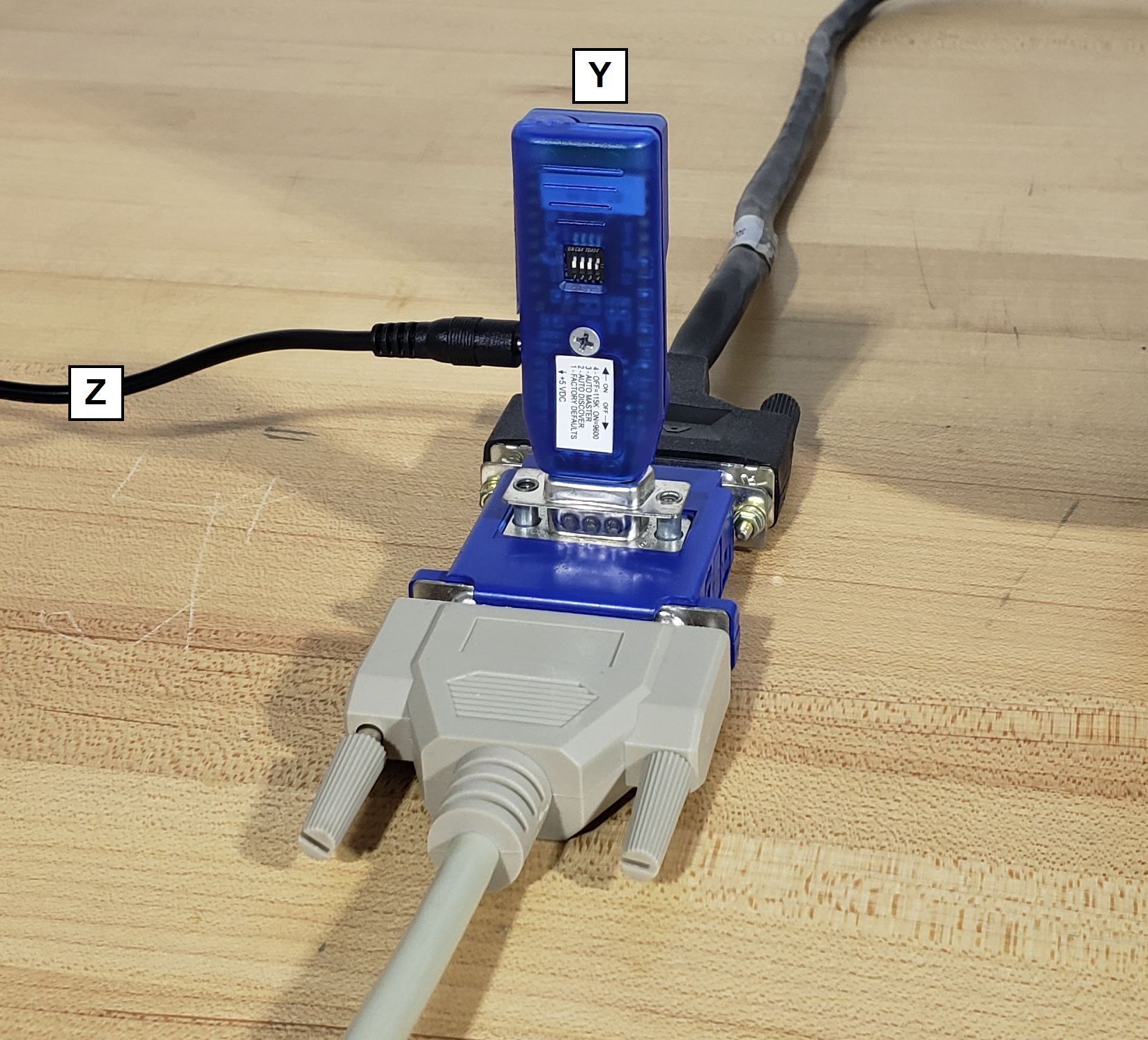

Firefly Bluetooth Adapter users:

If you are using a Firefly Bluetooth Adapter instead of the Parani Bluetooth Adapter then you will not be using G - H - I - or J in the above pictures. You will be using the configuration below instead.

Y  Firefly Bluetooth Adapter
Z  Firefly USB Power Cable



Click Here to enlarge picture
