(Old Way) - How to flash a logo onto a TM-T88 printer

Question:

  • How do I upload a logo to a TM-T88 printer?
  • How do I flash a logo to a TM-T88 printer?

Environment:

  • Cargas Mobile Delivery
  • Epson TM-T88v printer
  • Epson TM-T88vi printer
  • Epson TM-T88vii printer

Summary:

This article shows you how to upload/flash logos to an Epson TM-T88 printer using the OLD WAY. Epson has depreciated the Old Way but many of you may still be using it. If you have already uploaded/flashed logos to your TM-T88 printers and had logo customizations to your delivery ticket format with Old Mobile Delivery or prior to April 2024 then you are using the Old Way.

If you do not already have logos uploaded to your printers using the old way and you are doing this for the first time then we recommend you use the New Way. Please follow the article below for the New Way.

(New Way) - How to flash a logo onto a TM-T88 printer


Steps:

*Note*   -  The Epson TM-T88v, Epson TM-T88vi, and Epson TM-T88vii all have different Utility Software. Please make sure that you are downloading and installing the correct one for your model printer. The software for each is similar but does look slightly different.

  1. First connect the TM-T88 printer to a computer and launch the Epson Utility software. Please follow this article below if you have not installed the Epson Utility software and setup the connection port yet.

    How to connect an Epson TM-T88 to a computer using USB

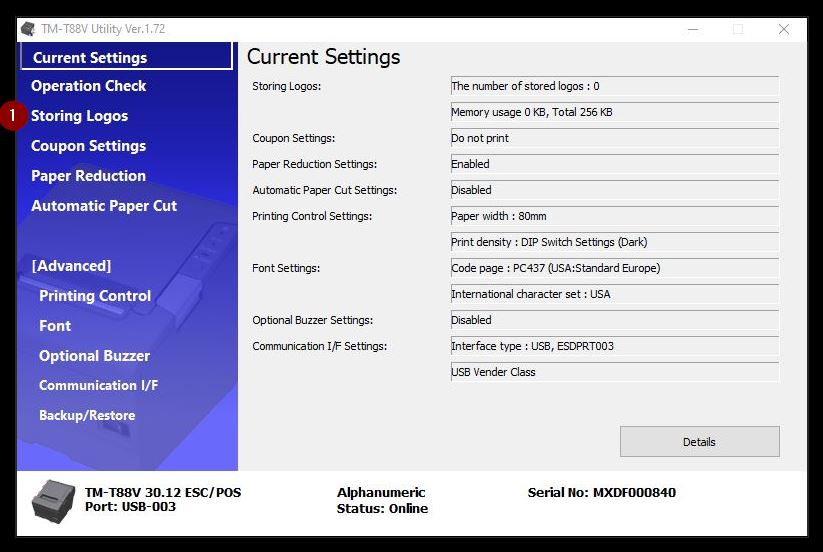

  2. Epson TM-T88v - Select Storing Logos from the main menu.

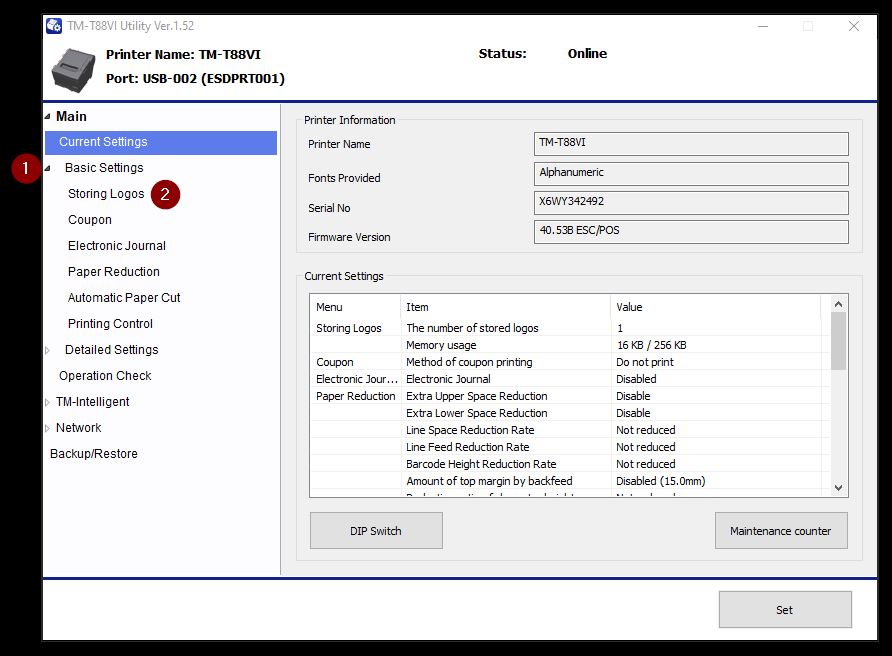

    Epson TM-T88vi  -  Expand Basic Settings > then select Storing Logos from the menu.

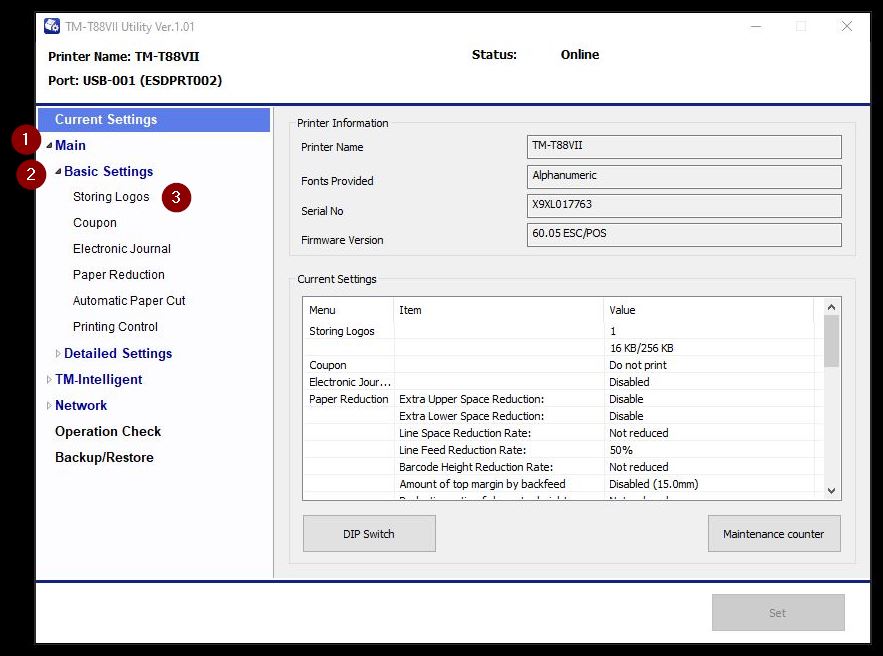

    TM-T88vii  -  Expand Main > Basic Settings > then select Storing Logos from the menu.

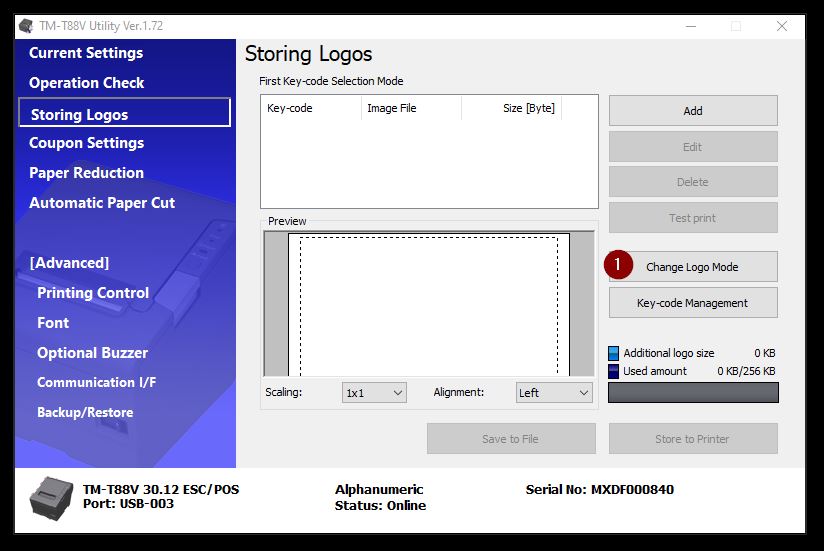

  3. Click Change Logo Mode

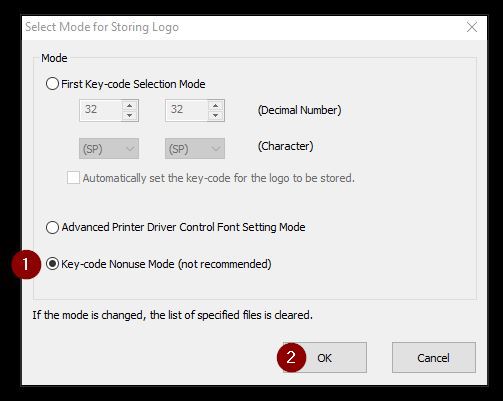

  4. Select Key-Code Nonuse Mode (Not Recommended) and click OK.

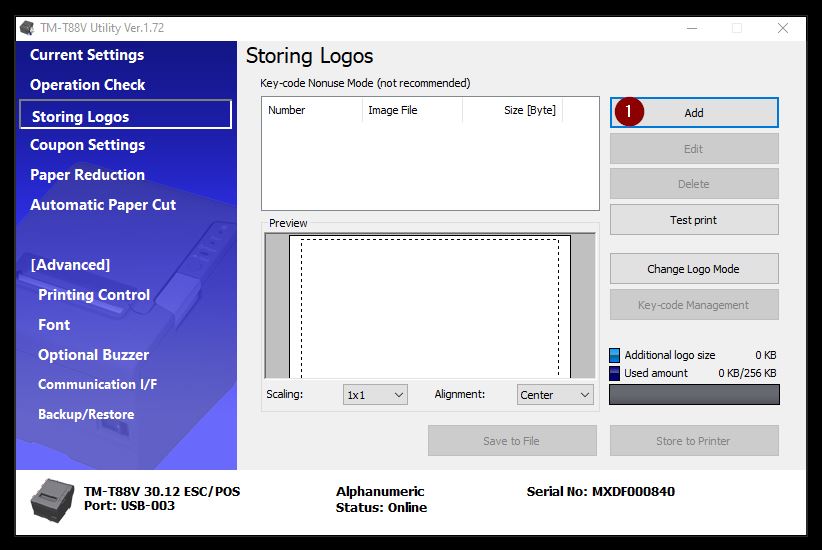

  5. Click the Add button to add a logo.

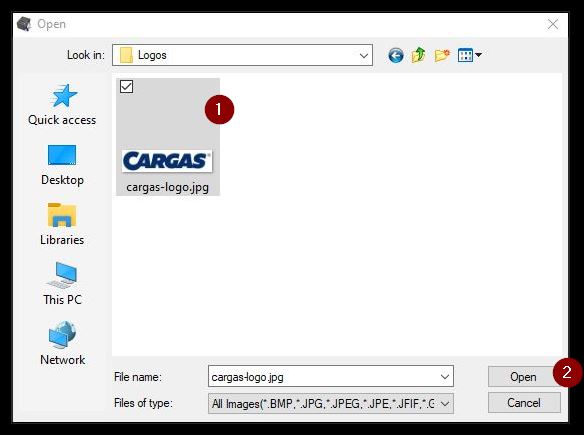

  6. Navigate to your logo and select it. Then click Open.

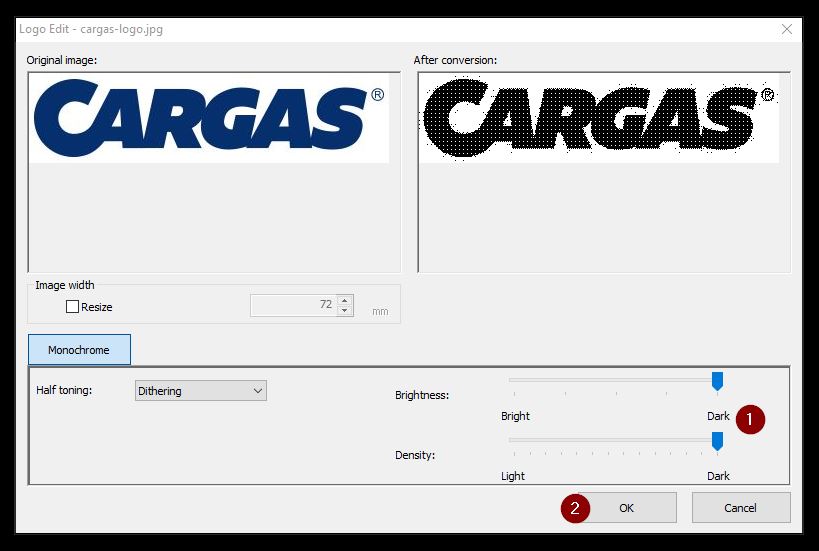

  7. Adjust your logo to your preference and click ok.

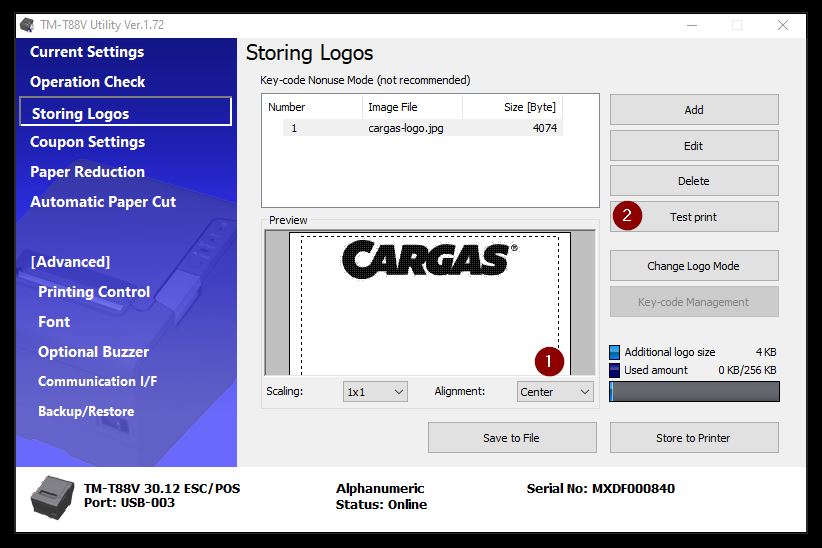

  8. *Optional*  -  Set the Alignment to Center and press Test Print. If you do not like it you can delete and add a logo again before saving it to the printer. Please keep in mind of the Key Codes if you are trying again.

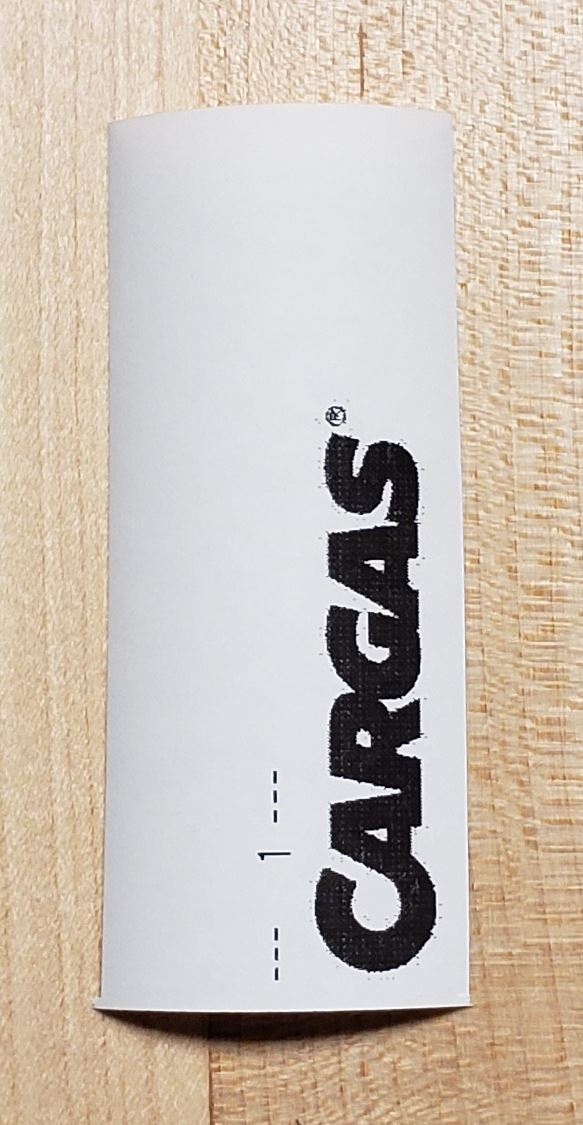

    *Note* The test print will not be centered.

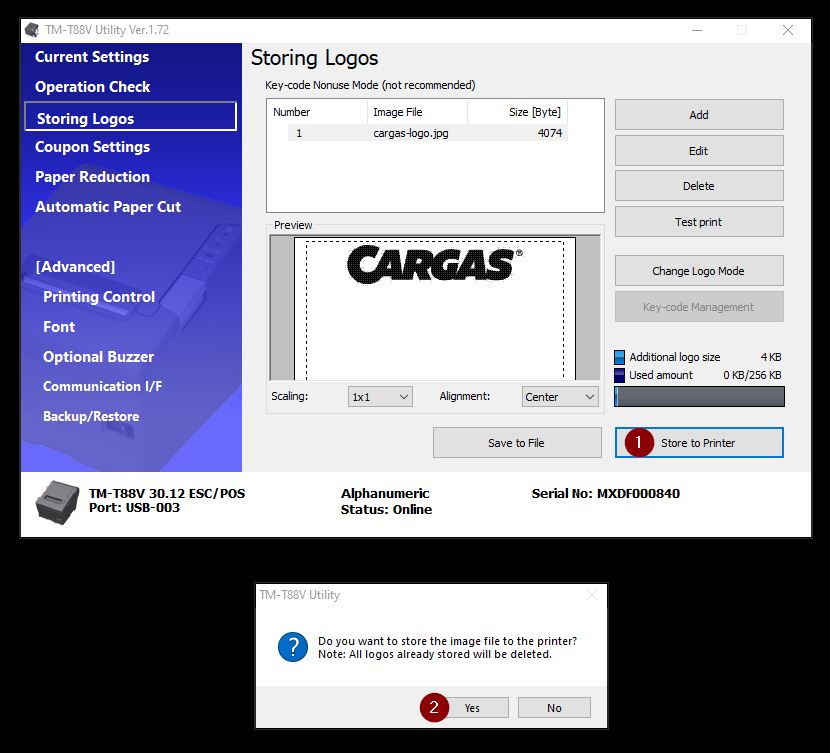

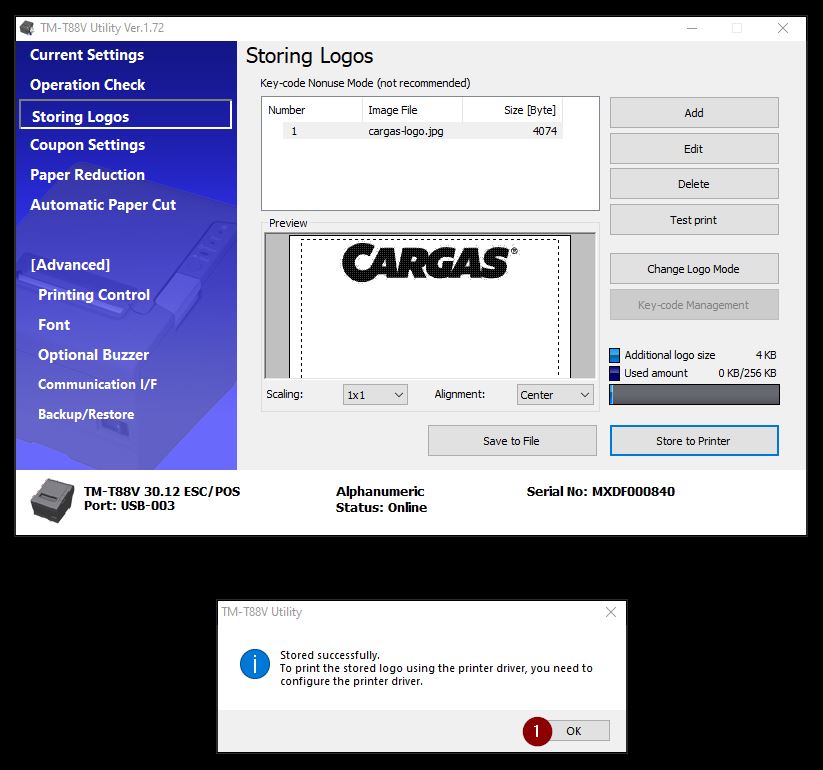

  9. After you are satisfied with the logo and settings then you can click the Store to Printer button and the Yes button to upload/flash the logo to the printer. *Note* this will delete any previous stored logos.


  10. You should receive a successful message.


  11. Finally you should be able to validate that the logo is saved to your printer by the blue Check Mark. Now you can exit out of the Epson Utility software.

    *Note*  -  If you try test printing after you just stored a logo then it might print two logos. This is because it is printing the one stored on the printer and the one stored in cache in the software. This is normal and relaunching the software and retest printing it will only print one logo.
