Article Summary:
This article shows you the External wiring and configuration for the dual LCR.iQ meters using a Multiplexer or "Mux Box". This is a depreciated setup. These articles are only for pre-existing trucks that already setup with a Mux Box. The dual LCR.iQ registers are setup in a RS485 configuration. Both registers have a 25 pin serial cable that connects to the back of the Mux Box. The Printer and Bluetooth adapter will connect to the front of the Mux Box.
Environment:
- Cargas Energy
- New Mobile Delivery
- Liquid Controls LCR.iQ register
Overview:

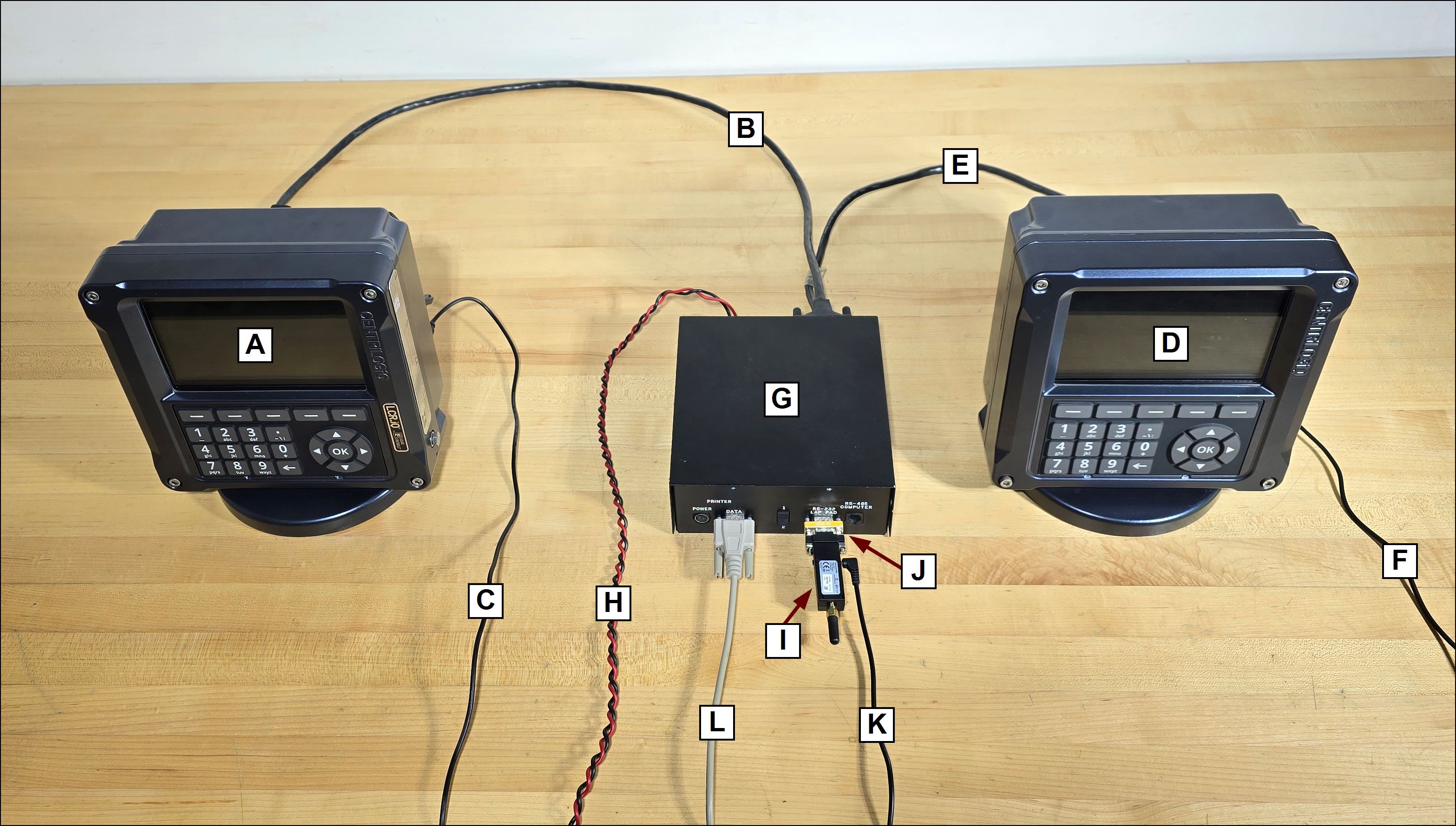

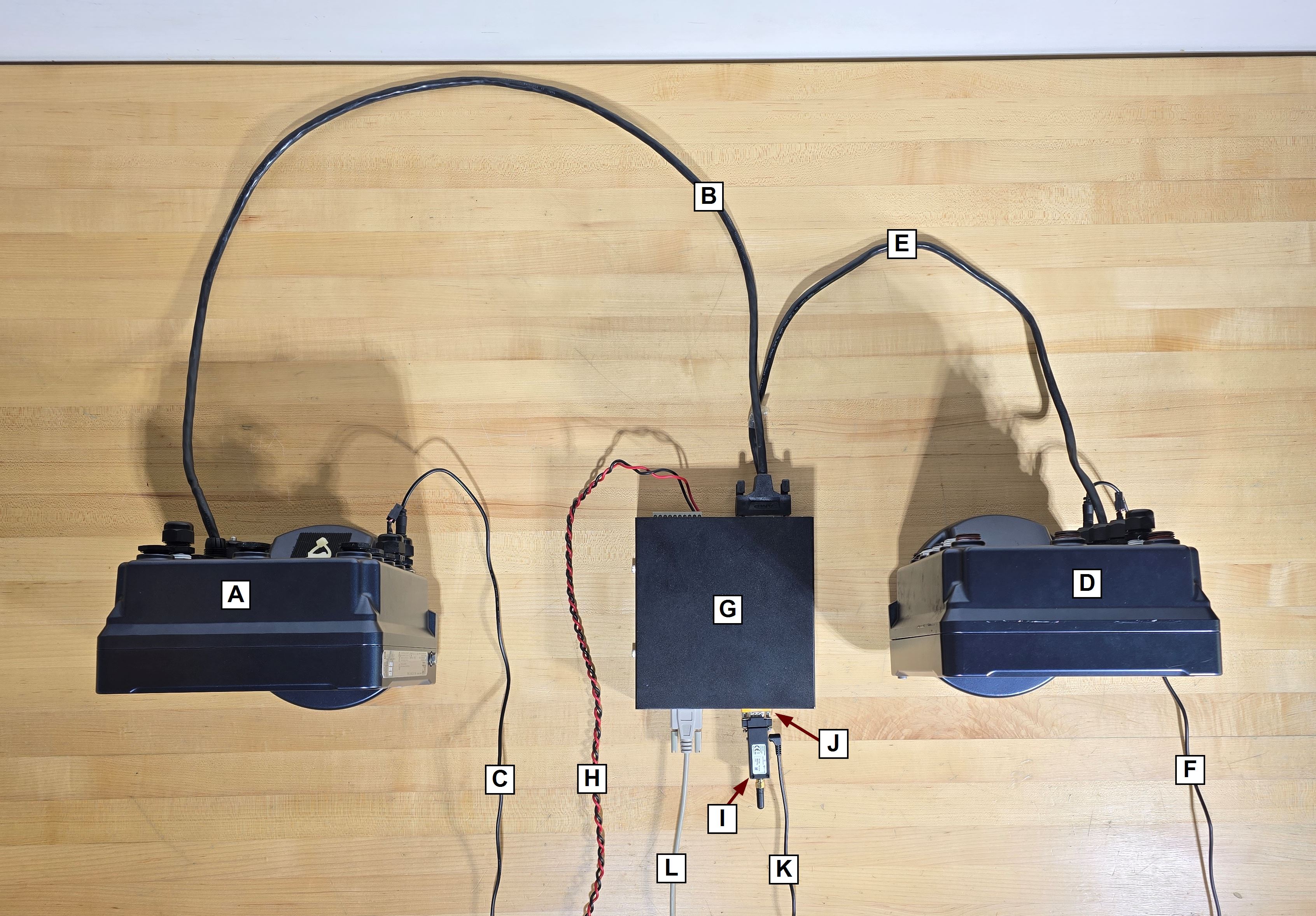

| A | LCR.iQ Register 1 | G | LC Multiplexer Box "Mux Box" |
| B | LCR.iQ 25pin COM0 & COM1 cable | H | LC Multiplexer power wire |
| C | LCR.iQ Register power wire | I | Parani Bluetooth Adapter |
| D | LCR.iQ Register 1 | J | Parani DB9 M/M Null Modem Adapter |
| E | LCR.iQ 25pin COM0 & COM1 cable | K | Parani power wire |
| F | LCR.iQ Register power wire |
Next Step:
Additional Info:
- Back to the beginning - Dual LCR-iQ Meter Configuration Guide - Mux Box
