Dual LCR.iQ Mux Box - I/O Configuration

Article Summary:

This article shows you the I/O configuration for the dual LCR.iQ meters using a Multiplexer or "Mux Box". This is a depreciated setup. These articles are only for pre-existing trucks that already setup with a Mux Box.




Environment:

  • Cargas Energy
  • New Mobile Delivery
  • Liquid Controls LCR.iQ register

Step 1:

  1. Put the LCR.iQ in configuration mode. Here is an article that shows you how to.
    How do I put the LCR iQ meter in configuration mode?

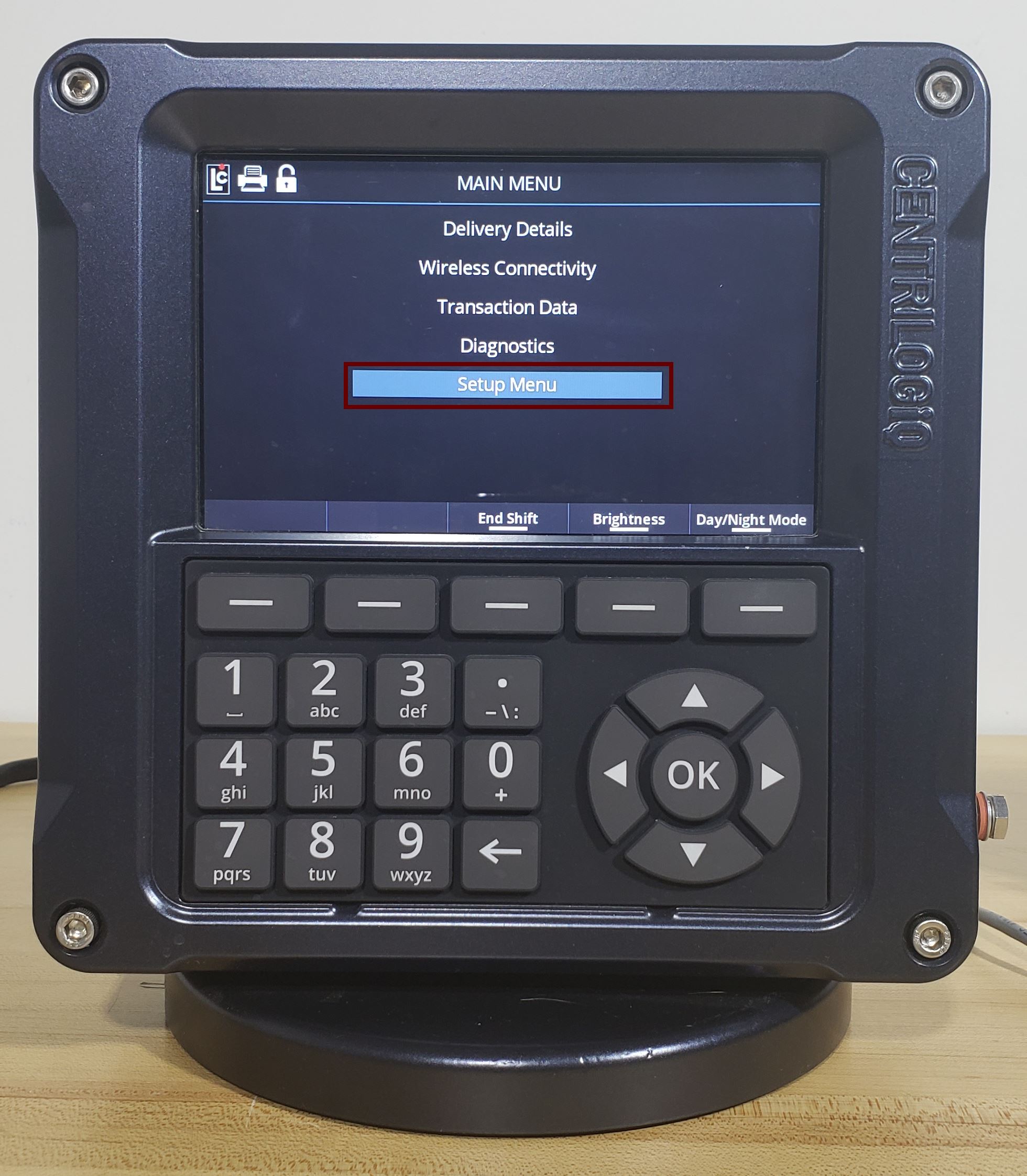

  2. Use the OK & Arrow buttons to navigate to Setup Menu
    LCR-iQ dual meter - Main Menu - Setup.jpg

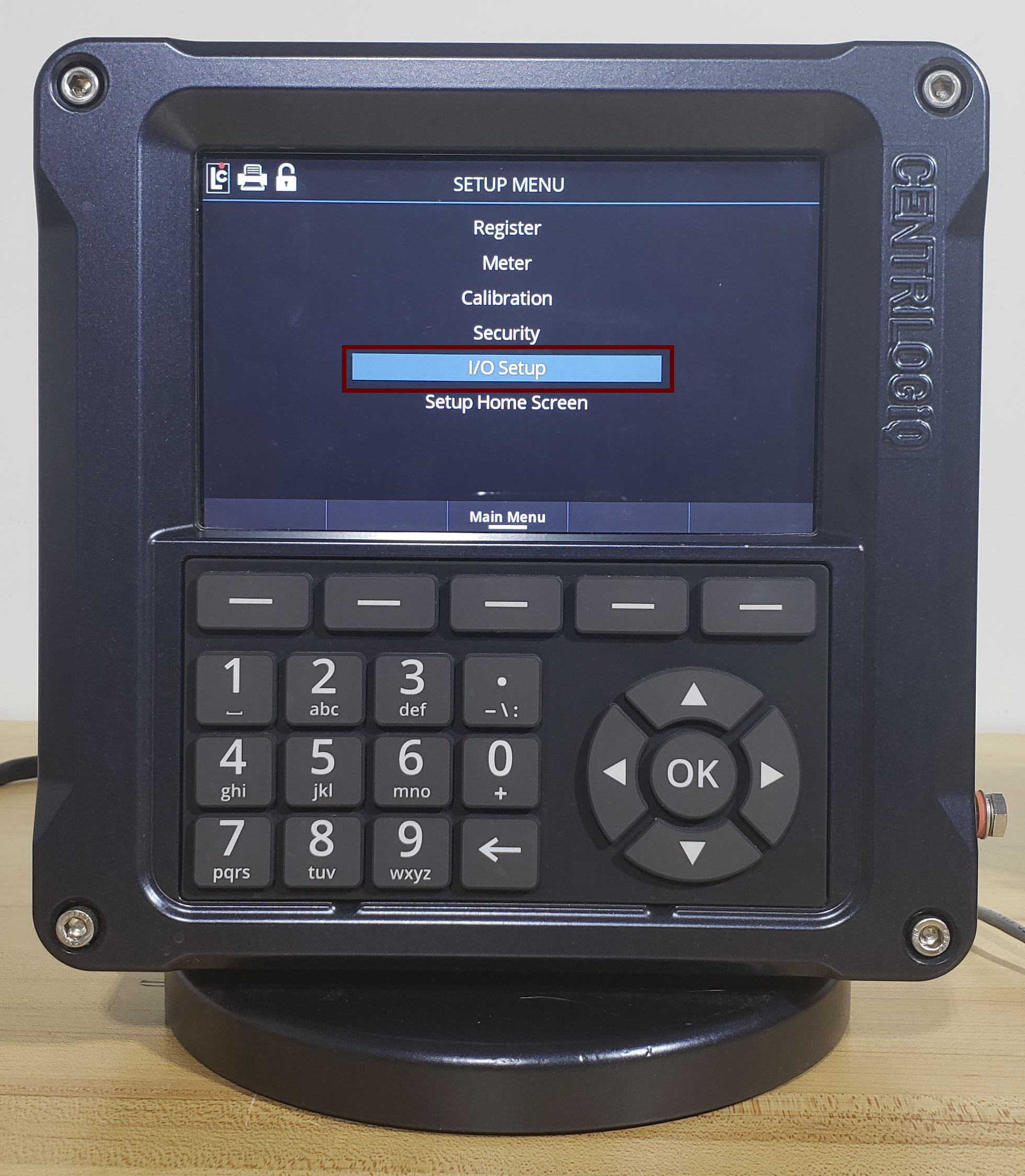

  3. Then Navigate to I/O Setup
    CR-iQ dual meter - Setup Menu - IO.jpg




Meter 1:

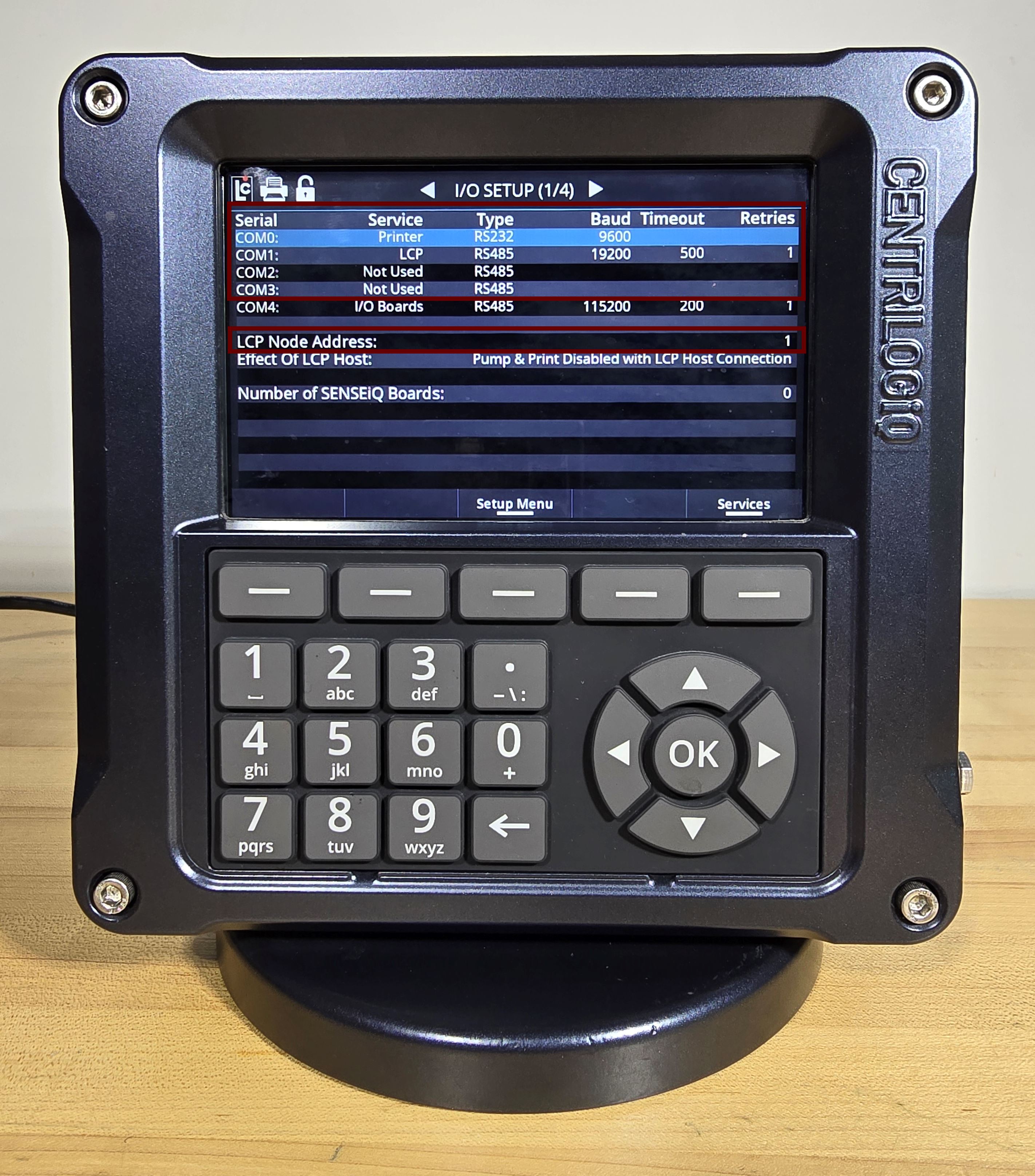

I/O SETUP(1/4) Screen

Serial Service Type Baud Timeout Retries
COM0: Printer RS232 9600
COM1: LCP RS485 19200 500 1
COM2: Not Used RS485
COM3: Not Used RS485
LCP Node Address:

1




Services Screen

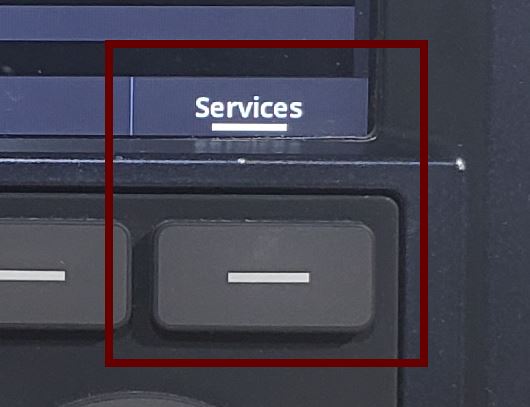

  • Press the Services button on I/O SETUP(1/4) screen

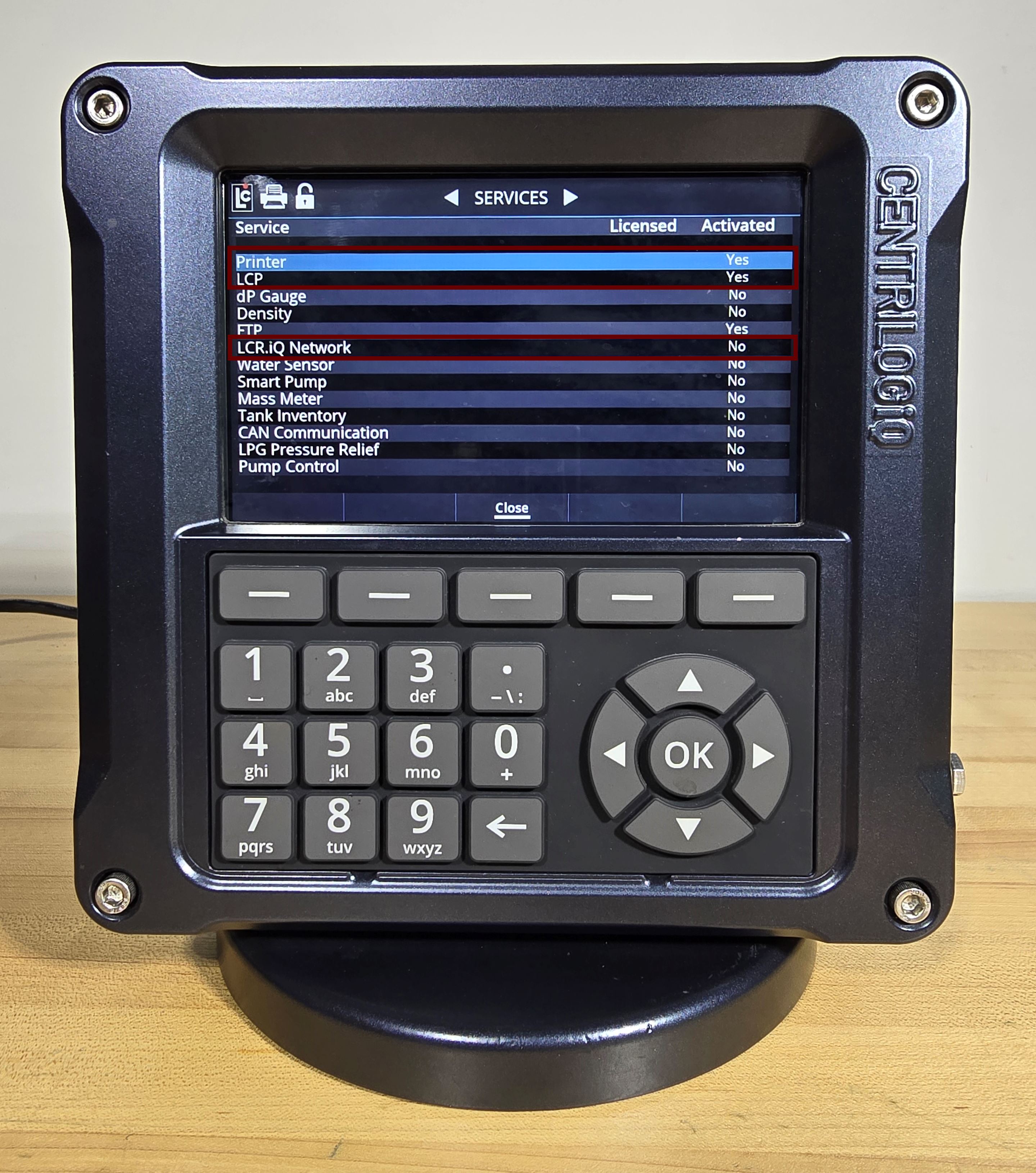

LCR-iQ dual meter - IO Services.jpg

Service Activated
Printer Yes
LCP Yes
LCR.iQ Network No

*Note* If LCR.iQ Network is turned on then you will need to turn it off and clear all saved setup for it.





Meter 2:

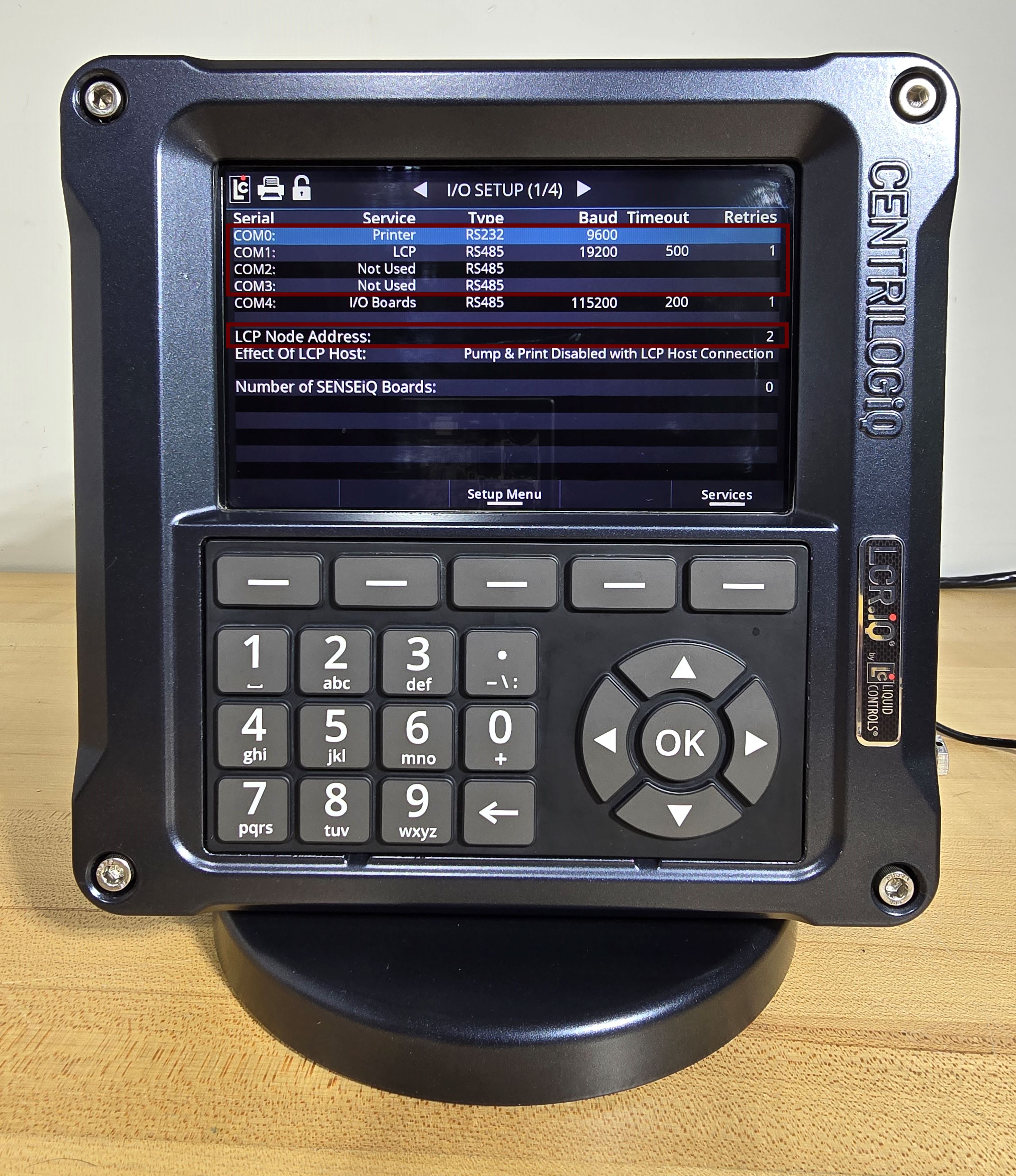

I/O SETUP(1/4) Screen

Serial Service Type Baud Timeout Retries
COM0: Printer RS232 9600
COM1: LCP RS485 19200 500 1
COM2: Not Used RS485
COM3: Not Used RS485



LCP Node Address:

2




Services Screen

  • Services button on I/O SETUP(1/4) screen

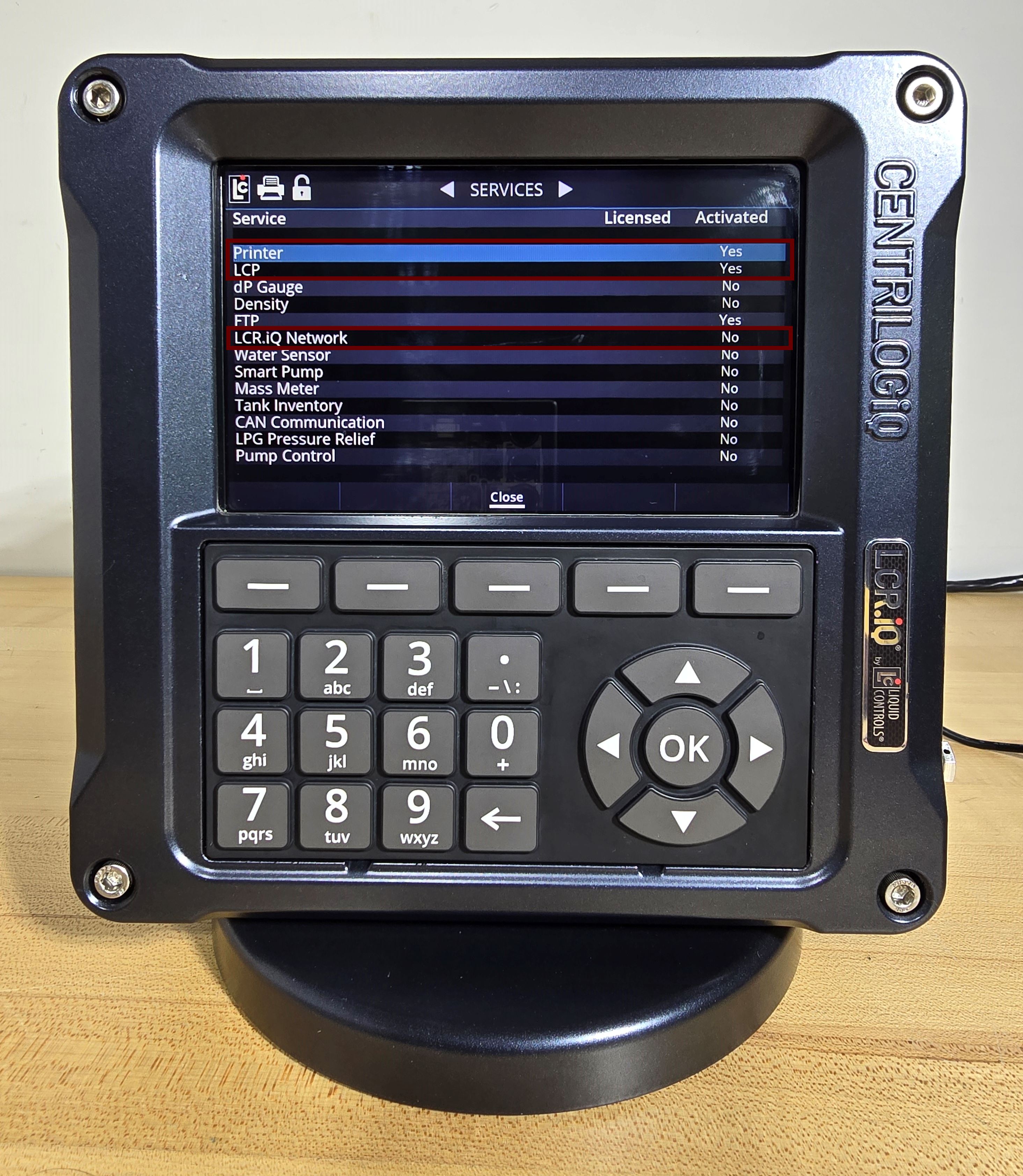

LCR-iQ dual meter - IO Services.jpg

Service Activated
Printer Yes
LCP Yes
LCR.iQ Network No

*Note* If LCR.iQ Network is turned on then you will need to turn it off and clear all saved setup for it.
