How do I clear a pending delivery for a LCR IQ meter?

Issue / Question:

  • The LCR IQ meter shows a pending delivery. How do I clear it?
  • I cannot make my next delivery due to a pending delivery. How can I resolve it?

Environment:

  • Cargas Energy Versions 2023 or later

Resolution / Answer:

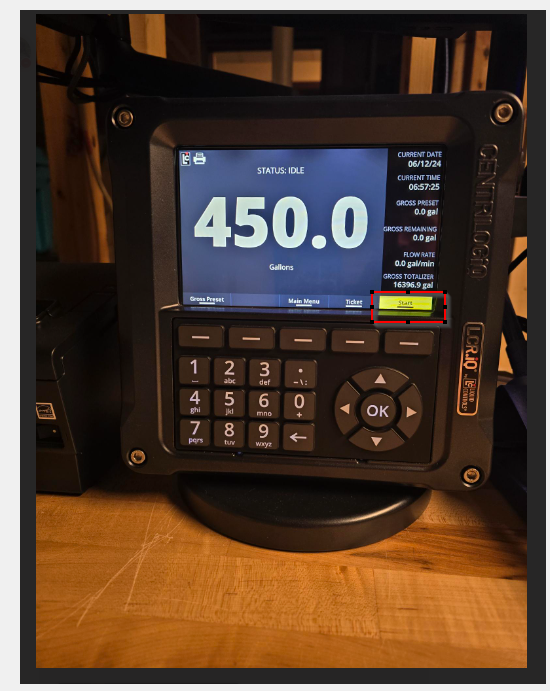

  •  Select Start on the meter.

    2024-06-24 14_52_49-Greenshot image editor.png

  • When the screens show 0.00 gallons, select the Stop then End button.

    2024-06-25 14_20_58-Boost your iQ series_ How to setup the remote start, stop, and print functionali.png2024-06-25 14_28_16-2024-06-24 14_52_00-Greenshot image editor.png.png
  • The pending delivery should clear, and the driver should be able to start their next delivery.

  • If issues persist, please try the following:

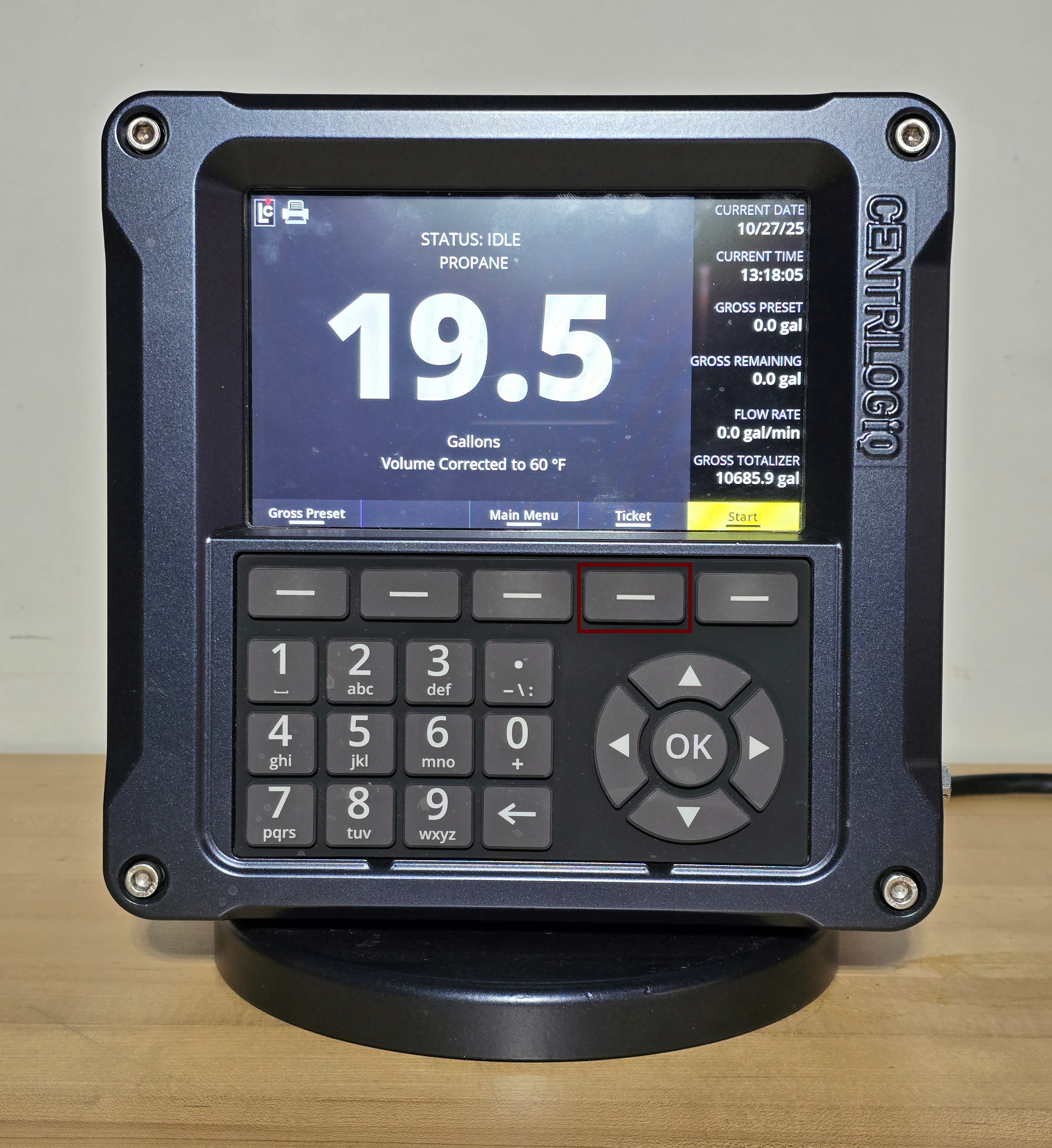

  1. Print a calibration ticket.
  2. Complete a manual pump and print delivery directly from the register.
  • If the above two steps fail and you cannot print a calibration ticket or complete a pump and print delivery, then this is a hardware level issue with the meter/printer and will need to be examined by your local truck shop.



Additional Info:
