Truck Installation - Panasonic Toughpad

Bob Graybill

Edited: August 22, 2024 09:08

Issue:

Truck Installation Diagram for a Panasonic Toughpad

Environment:

Truck
Toughpad

Resolution / Answer:

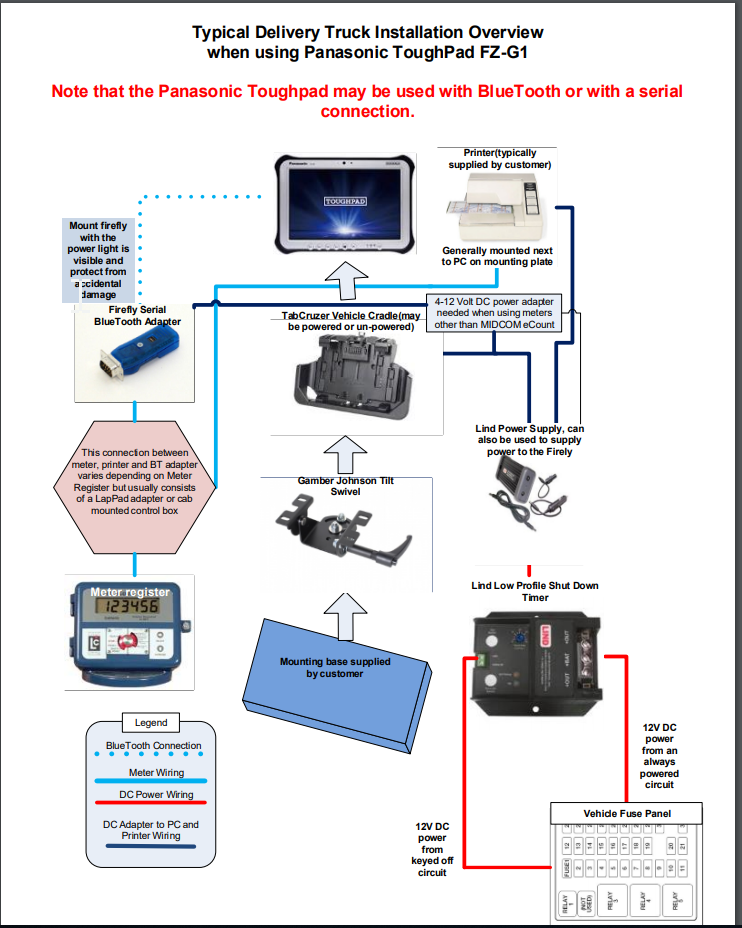

Here is a diagram outlining the installation configuration for a delivery truck with a Panasonic Toughpad. The diagram is also attached for downloading.

Delivery Mobile schematic(Panasonic ToughPad version).pdf
(100 KB)
