Android Tablet with A Single Liquid Controls LCR II and Bluetooth Cognitive Blaster Printer Wiring Setup

Question:

How do I wire an Android tablet with a Liquid Controls LCR II meter and Bluetooth Cognitive Blaster Printer?


Environment:

  • New Mobile Delivery
  • Android Tablet
  • Liquid Controls LCR II Meter
  • Cognitive Bluetooth Blaster Printer

Answer:

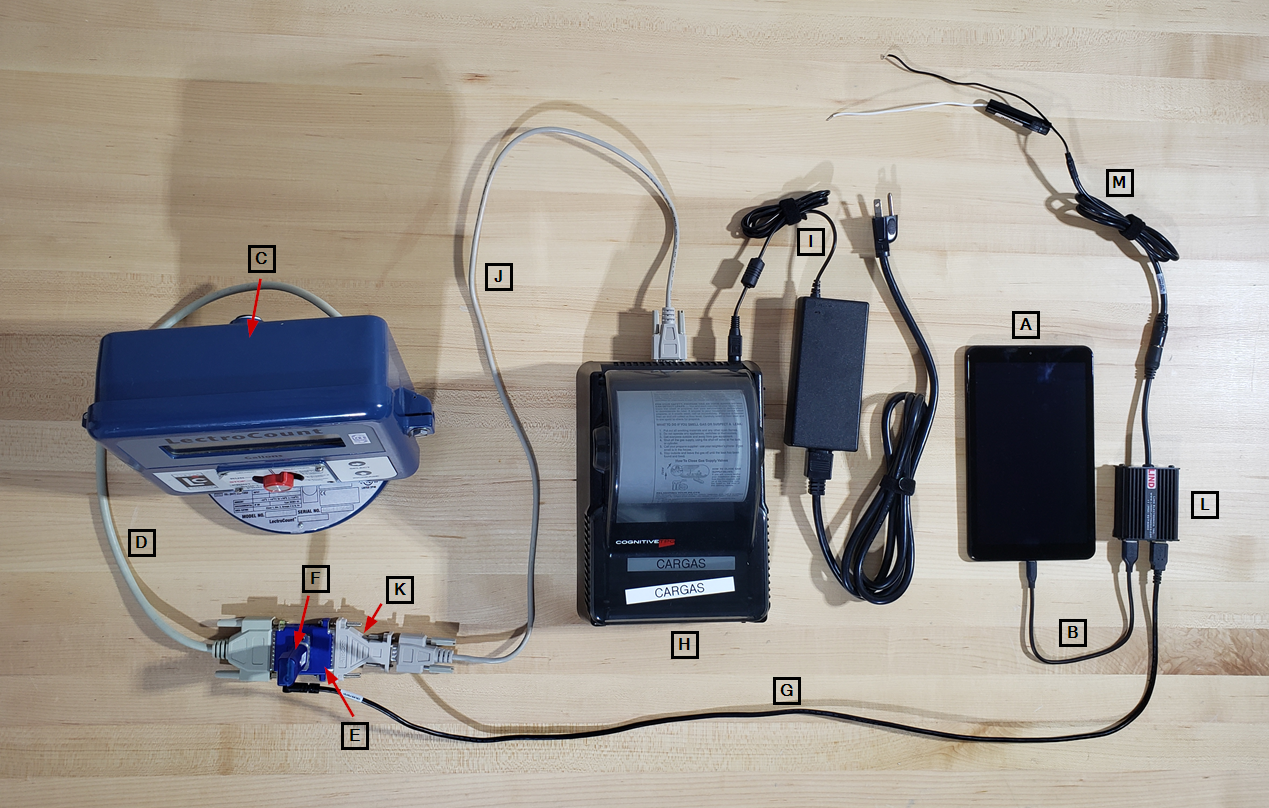

A  Android Tablet H  Cognitive Bluetooth Blaster Printer
B  Android USB Charging Cable I  Cognitive Bluetooth Blaster Power Cable
 (to fused truck power)
C  Liquid Controls LCR II Meter J  DB9 Pin to DB9 Pin M/F Serial Cable
 ***Cargas does NOT supply this***
 Click Here for Amazon Link
D  Liquid Controls LCR II Communications Cable K  DB9 male to DB25 female Adapter
 ***Cargas does NOT supply this***
 Click Here for Amazon Link
E  Liquid Controls Lap Pad Adapter L  Lind Power Adapter
F  Firefly Bluetooth Adapter M  Lind Power Adapter Power Cable
(to fused truck power)
G  Firefly Bluetooth Adapter USB Power Cable
