Android tablet with a Mid:Com e:Count meter and Epson TM-U295 Slip Printer

Question:

How do I wire an Android tablet with a Mid:Com e:Count meter and Epson TM-U295 Slip Printer?


Environment:

  • New Mobile Delivery
  • Android Tablet
  • Mid:Com e:Count
  • Epson TM-U295 Slip Printer

Answer:

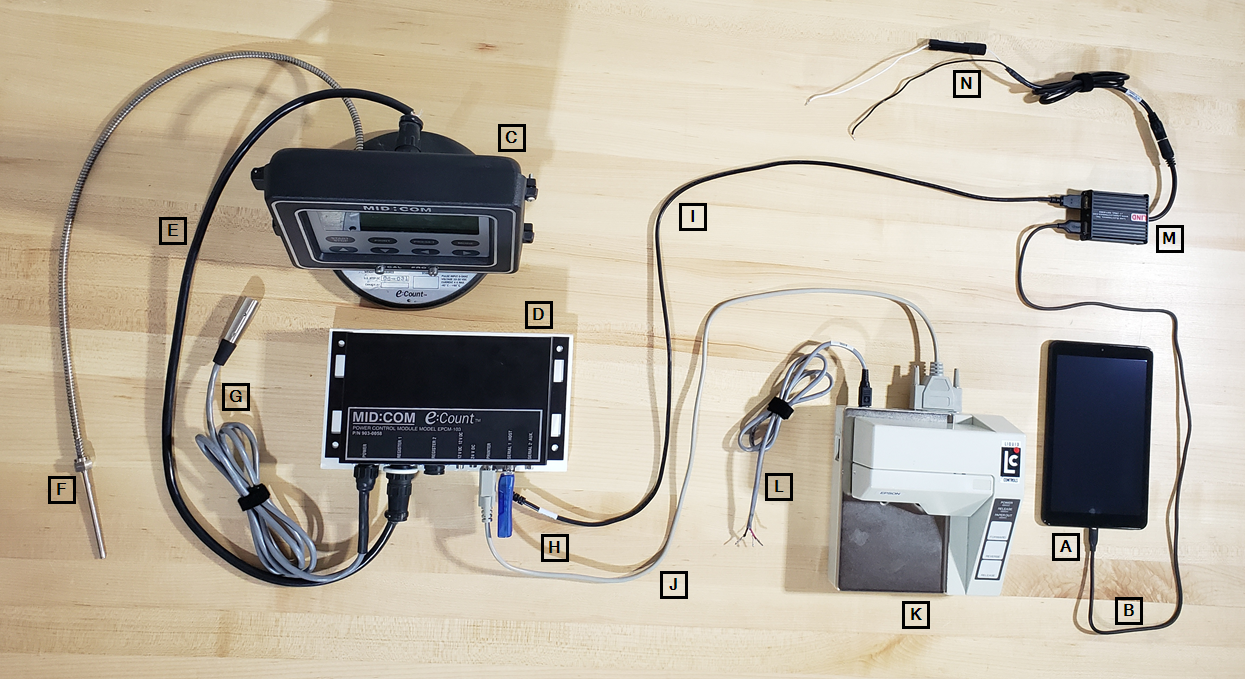

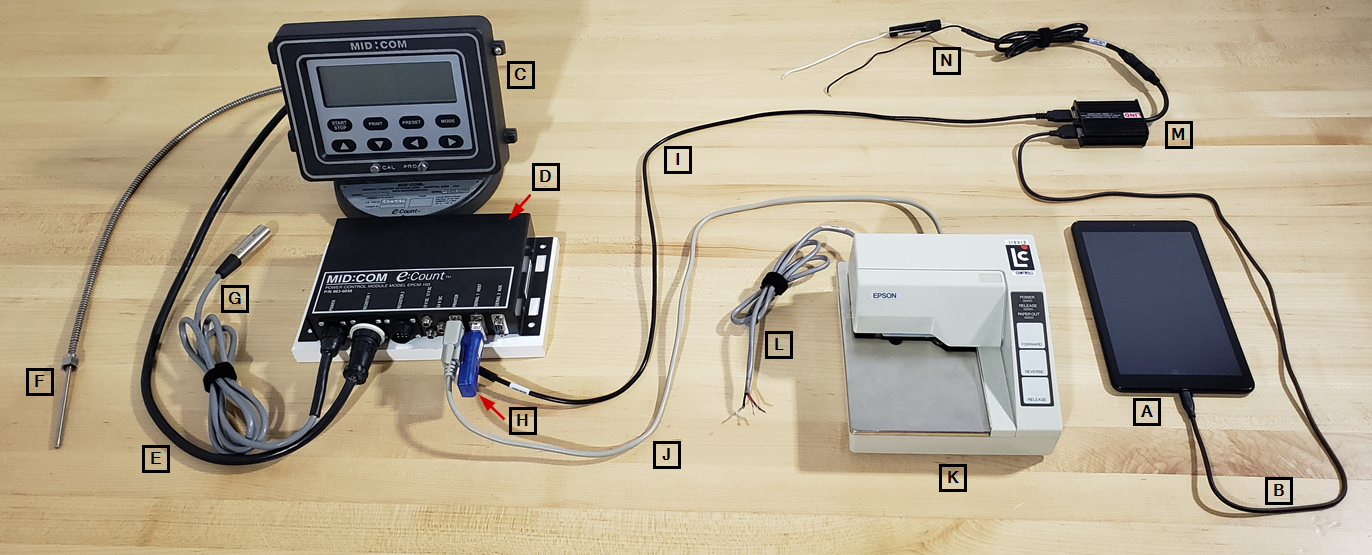

A)  Android Tablet

B)  USB A to USB B Printer Cable

C)  Mid:Com e:Count Register

D)  Mid:Com e:Count Power Control Module

E)  Mid:Com e:Count Register Communication Cable

F)  Mid:Com e:Count Temperature Probe

G)  Mid:Com e:Count Power Cable ( to fused truck power )

H)  Firefly Bluetooth Adapter

I)  Firefly Bluetooth Adapter USB Power Cable

J)   DB9 Pin to DB25 Pin Serial Cable Click Here For Amazon Link

K)  Epson TM-U295 Slip Printer

L)   Epson TM-U295 Slip Printer Power Cable ( to fused truck power )

M)  Lind Power Adapter Power Adapter

N)  Lind Power Adapter Power Cable ( to fused truck power )
