Question :
- How do I wire an Android tablet with Dual Liquid Controls LCR II meters and Bluetooth Zebra ZQ520 Printer?
Environment:
- New Mobile Delivery
- Android Tablet
- Dual Liquid Controls LCR II Meters
- Zebra ZQ520 Printer
Answer:

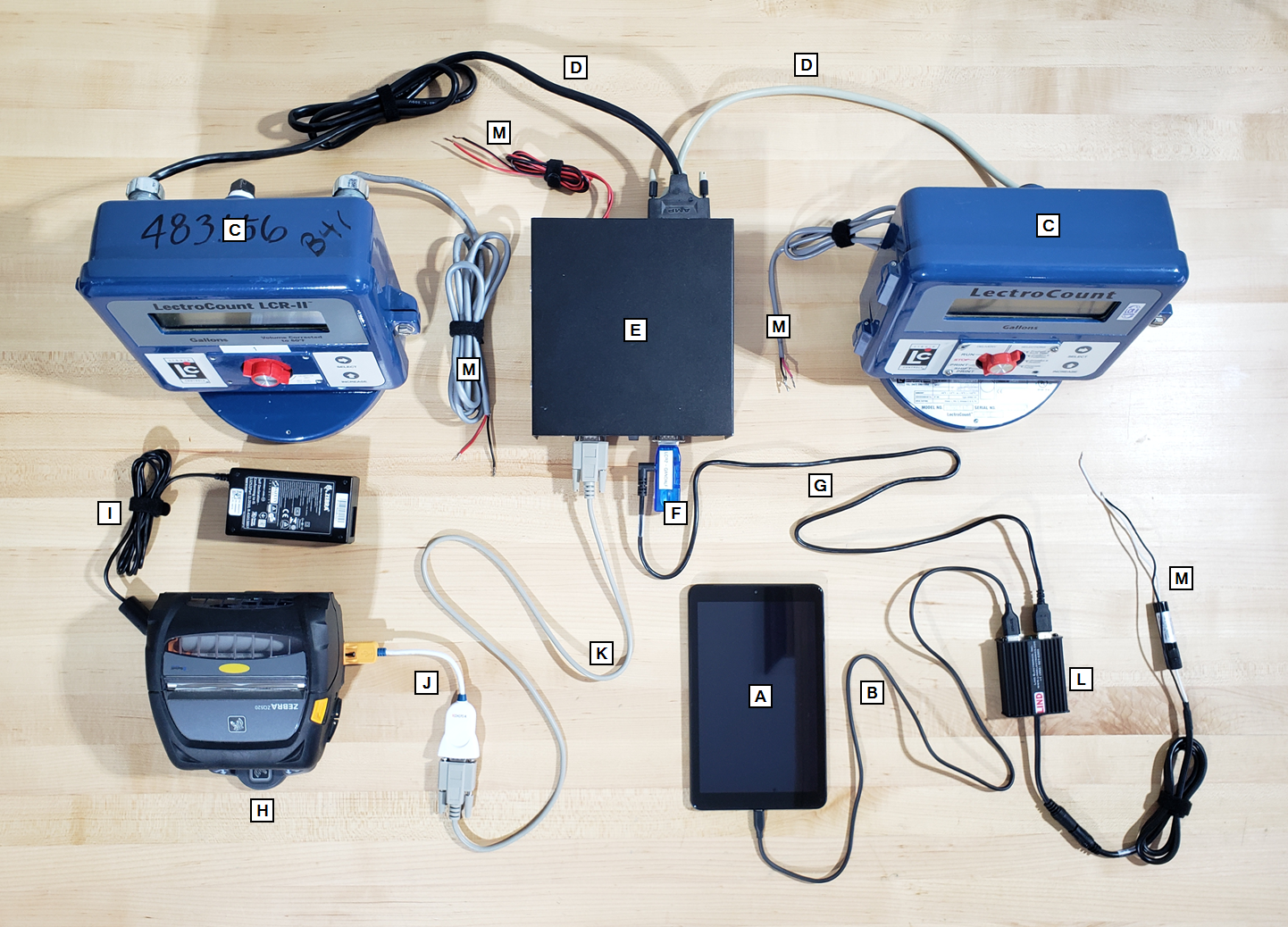

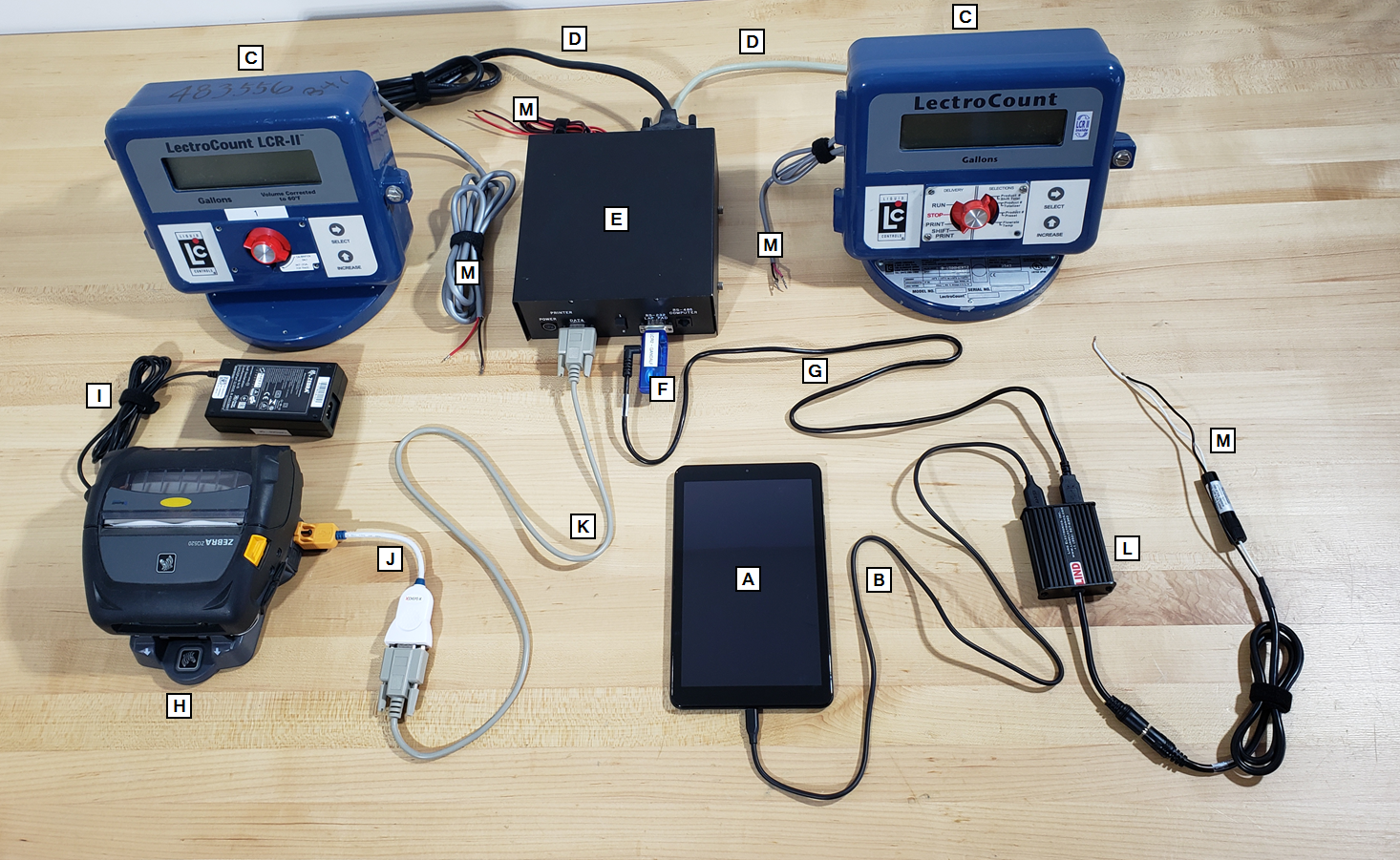

A) Android Tablet
B) USB A to Micro USB Cable
C) 2 x Liquid Controls LCR II Meters
D) 2 x Liquid Controls LCR II Communications Cable
E) Liquid Controls Multiplexer Box (a.k.a. Mux Box)
F) Firefly Bluetooth Adapter
G) Firefly Bluetooth Adapter USB Power Cable
H) Zebra ZQ520 Printer & Dock
I) Zebra ZQ520 Power Cable ( to fused truck power )
J) Zebra ZQ520 USB to 9 pin Serial Cable ***Must Use Zebra's Cable**
K) DB9 Pin to DB9 Pin M/F Serial Cable ***Cargas does NOT supply this*** Click Here for Amazon Link
L) Lind Power Adapter
M) Power Cable ( to fused truck power )
Related Articles:
-
Please also read our Dual LCR-II Configuration Guide
How do I set up two LCR-II registers in a Dual Meter Configuration?
