Android Tablet with Dual Liquid Controls LCR II and Bluetooth Cognitive Bluetooth Blaster Printer Wiring Setup

Question :

  • How do I wire an Android tablet with a Liquid Controls LCR II meter and Bluetooth Cognitive Blaster Printer?

Environment:

  • New Mobile Delivery
  • Android Tablet
  • Dual Liquid Controls LCR II Meters
  • Cognitive Bluetooth Blaster

Answer:

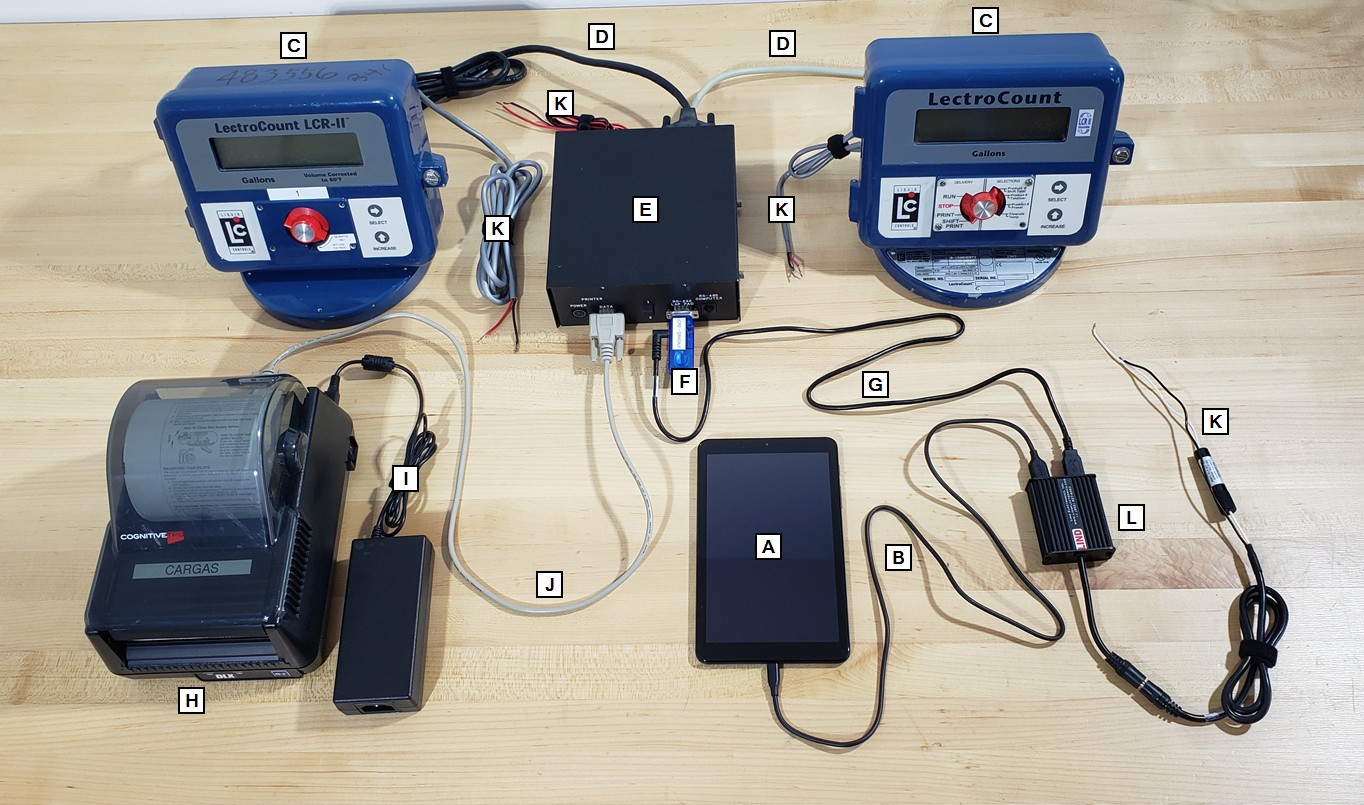

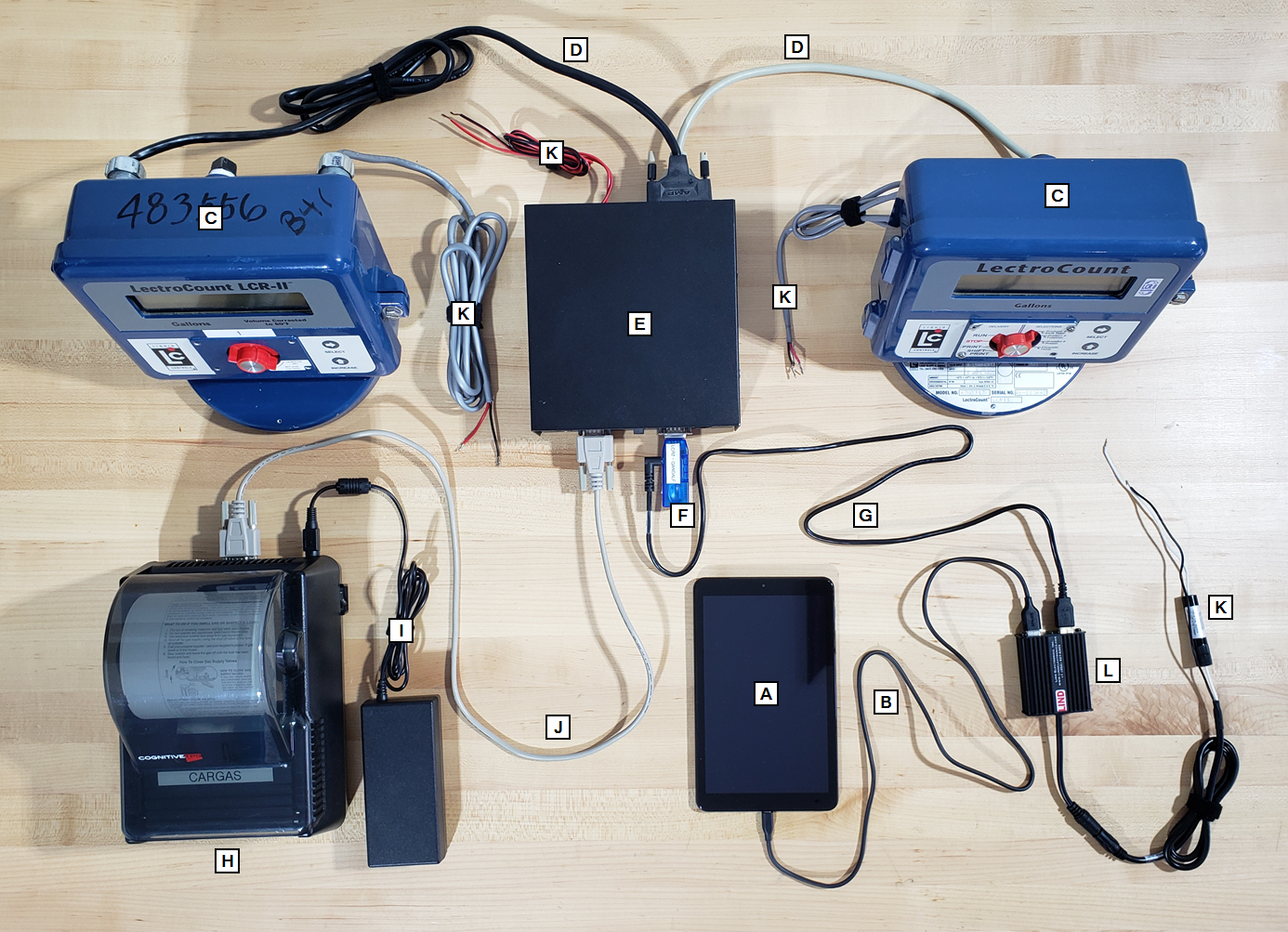

A)  Android Tablet

B)  USB A to Micro USB Cable

C)  2 x Liquid Controls LCR II Meters

D)  2 x Liquid Controls LCR II Communications Cable

E)  Liquid Controls Multiplexer Box  (a.k.a. Mux Box)

F)  Firefly Bluetooth Adapter

G)  Firefly Bluetooth Adapter USB Power Cable

H)  Cognitive Bluetooth Blaster

I)   Cognitive Bluetooth Blaster Power Cable ( to fused truck power )

J)   DB9 Pin to DB9 Pin M/M Serial Cable ***Cargas does NOT supply this*** Click Here for Amazon Link

K)  Power Cable ( to fused truck power )

L)  Lind Power Adapter
