Android Tablet with Dual Liquid Controls LCR II and Cognitive USB Blaster Printer Wiring Setup

Question :

• How do I wire an Android tablet with a Liquid Controls LCR II meter and Cognitive USB Blaster Printer?

Environment:

• New Mobile Delivery
• Android Tablet
• Dual Liquid Controls LCR II Meters
• Cognitive USB Blaster

Answer:

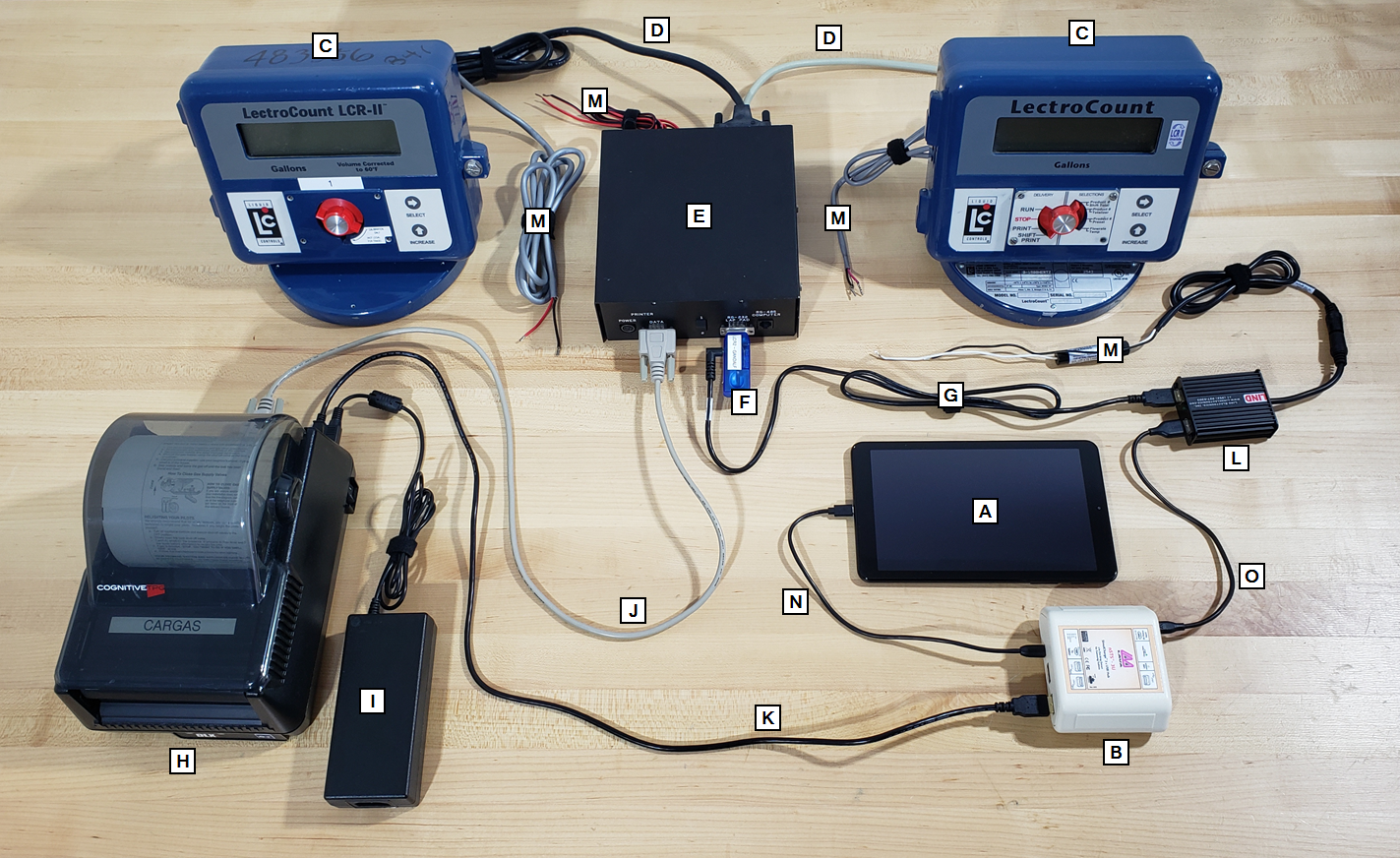

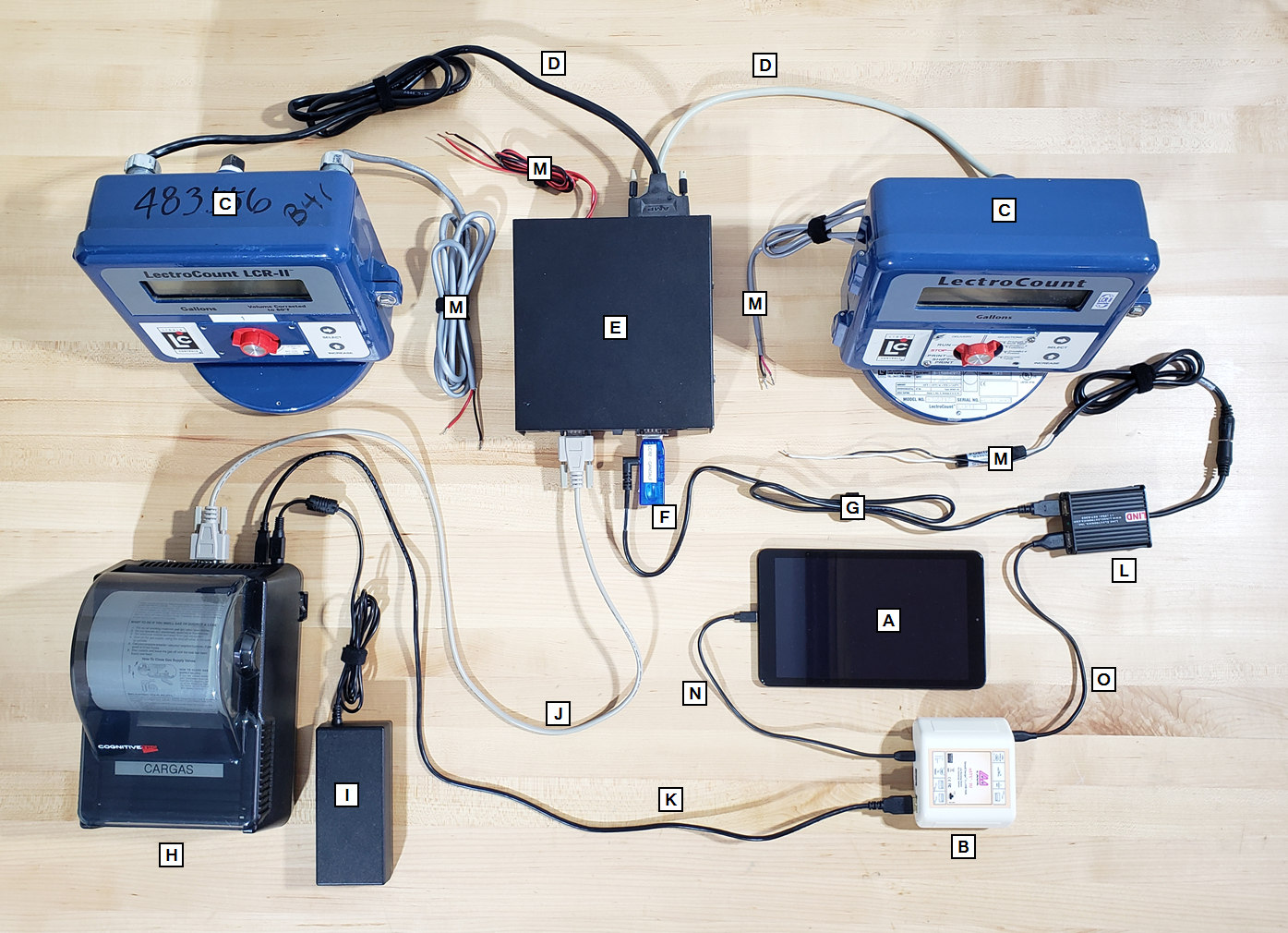

A)  Android Tablet

B)  Lava Hub

C)  2 x Liquid Controls LCR II Meters

D)  2 x Liquid Controls LCR II Communications Cable

E)  Liquid Controls Multiplexer Box  (a.k.a. Mux Box)

F)  Firefly Bluetooth Adapter

G)  Firefly Bluetooth Adapter USB Power Cable

H)  Cognitive USB Blaster

I)   Cognitive USB Blaster Power Cable ( to fused truck power )

J)   DB9 Pin to DB9 Pin M/M Serial Cable ***Cargas does NOT supply this*** Click Here for Amazon Link

K)  USB A to USB B Printer Cable ***Cargas does NOT supply this*** Click Here for Amazon Link

L)  Lind Power Adapter

M) Power Cable ( to fused truck power )

N) Micro USB to Micro USB Cable ***Cargas does NOT supply this***

O) USB A to Micro USB Cable ***Cargas does NOT supply this*** Click Here for Amazon Link
