Android Tablet with Dual Liquid Controls LCR II and Epson TM-T88V Thermal Printer Wiring Setup

Question :

  • How do I wire an Android tablet with Dual Liquid Controls LCR II meters and Epson TM-T88V Thermal Printer?

Environment:

  • New Mobile Delivery
  • Android Tablet
  • Dual Liquid Controls LCR II Meters
  • Epson TM-T88V Thermal Printer

Answer:

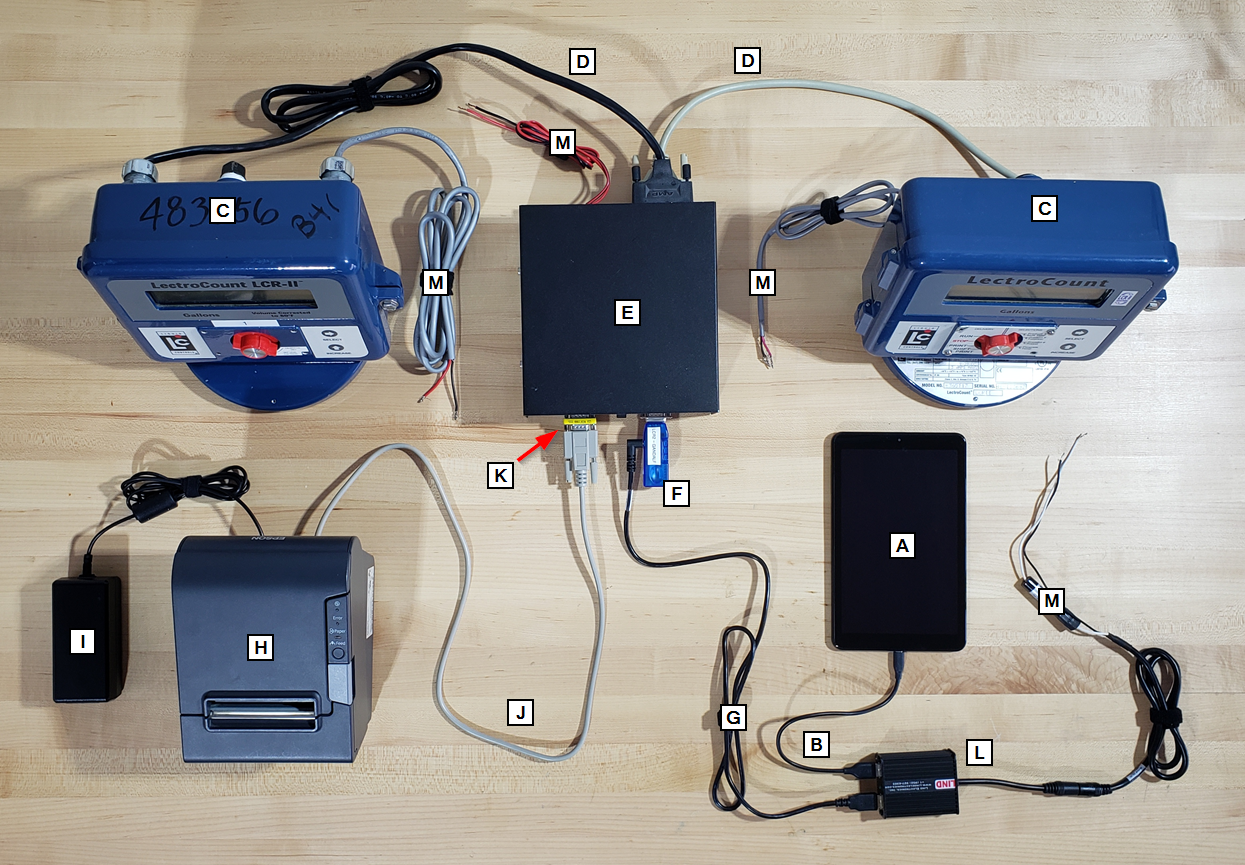

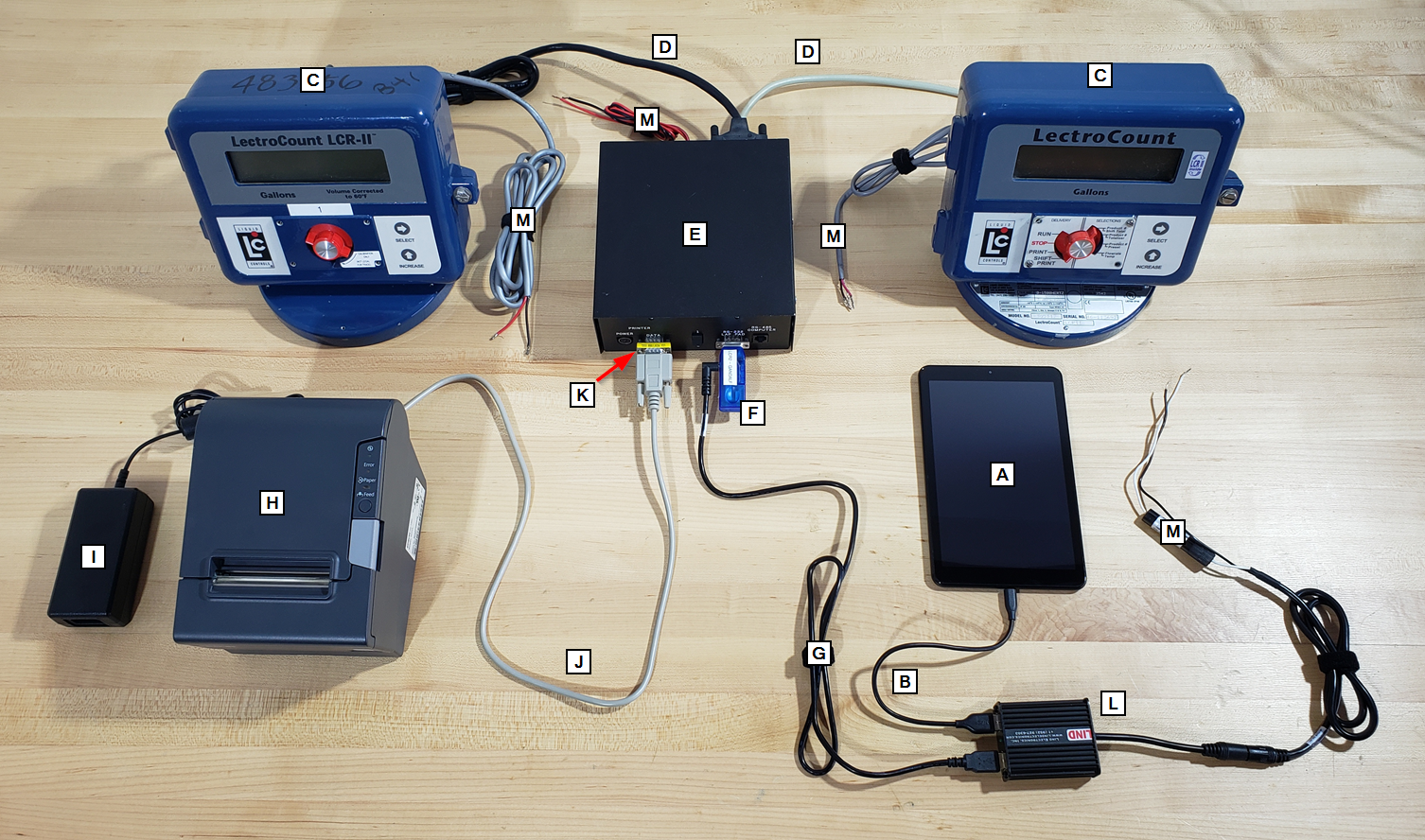

A)  Android Tablet

B)  USB A to Micro USB Cable

C)  2 x Liquid Controls LCR II Meters

D)  2 x Liquid Controls LCR II Communications Cable

E)  Liquid Controls Multiplexer Box  (a.k.a. Mux Box)

F)  Firefly Bluetooth Adapter

G)  Firefly Bluetooth Adapter USB Power Cable

H) Epson TM-T88V Thermal Printer

I)   Epson Power Cable ( to fused truck power ) or (Epson Cable Power Cable to Mux Box)

J)   DB9 Pin to DB25 Pin F/M Cable ***Cargas does NOT supply this*** Click Here for Amazon Link

K)  DB9 Pin to DB9 Pin M/M Adapter ***Cargas does NOT supply this*** Click Here for Amazon Link

L)  Lind Power Adapter

M) Power Cable ( to fused truck power )
