Liquid Controls LCR iQ Printer Type Setup

Question:

• Liquid Controls LCR iQ Printer Type setup
• How do I change the printer on the Liquid Controls LCR iQ meter?

Environment:

• Liquid Controls LCR iQ meter

Answer:

• This article will help you change the printer type on the LCR iQ meter.

• This is most often completed by a truck shop as it requires putting the meter in configuration mode.

1. First, you will need to put the meter in configuration mode.

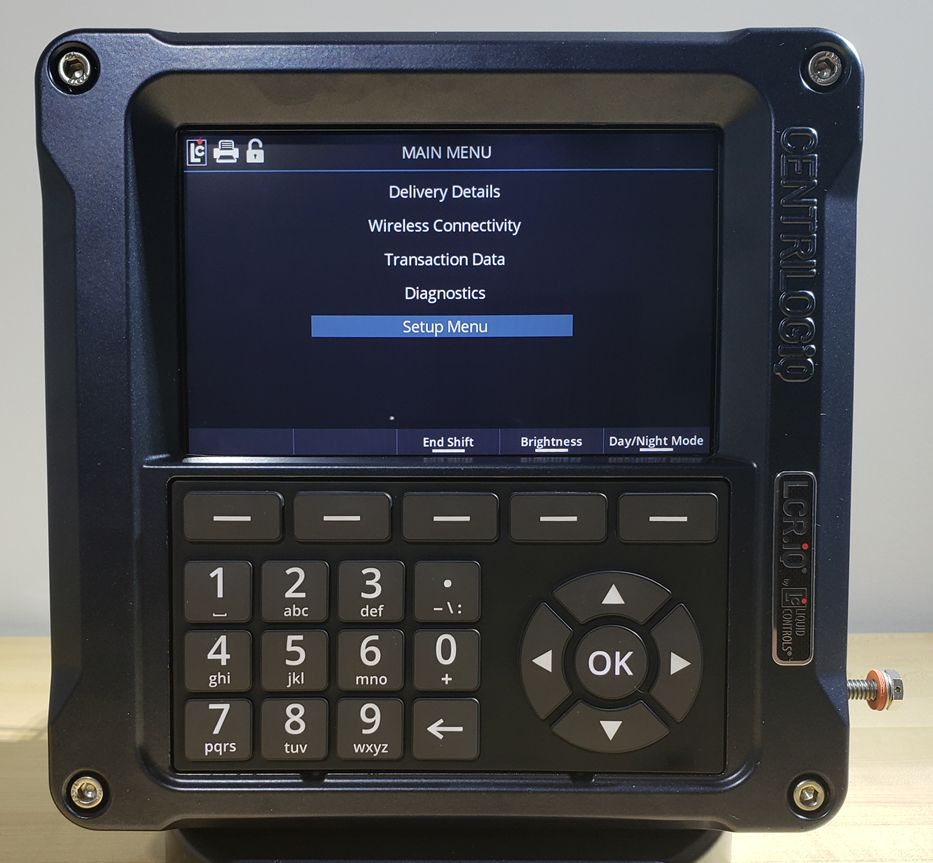

2. Then, you will need to go to the Setup Menu. Use the arrows and OK button on the meter to navigate the menus.

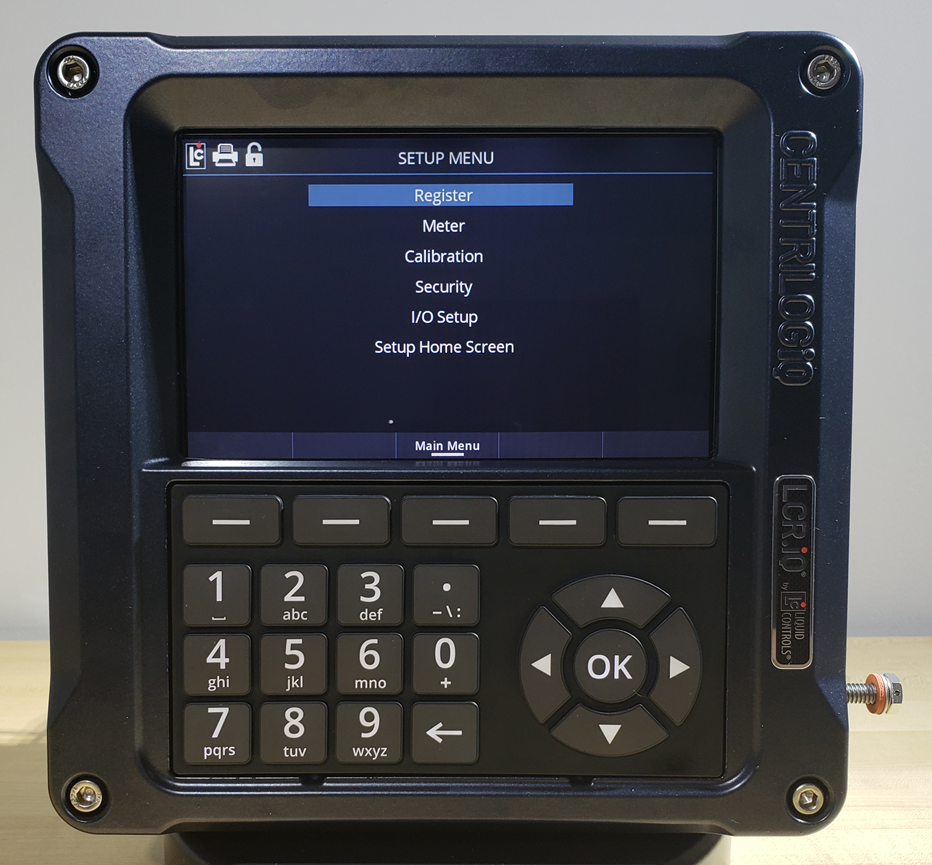

3. Then, go into the Register menu

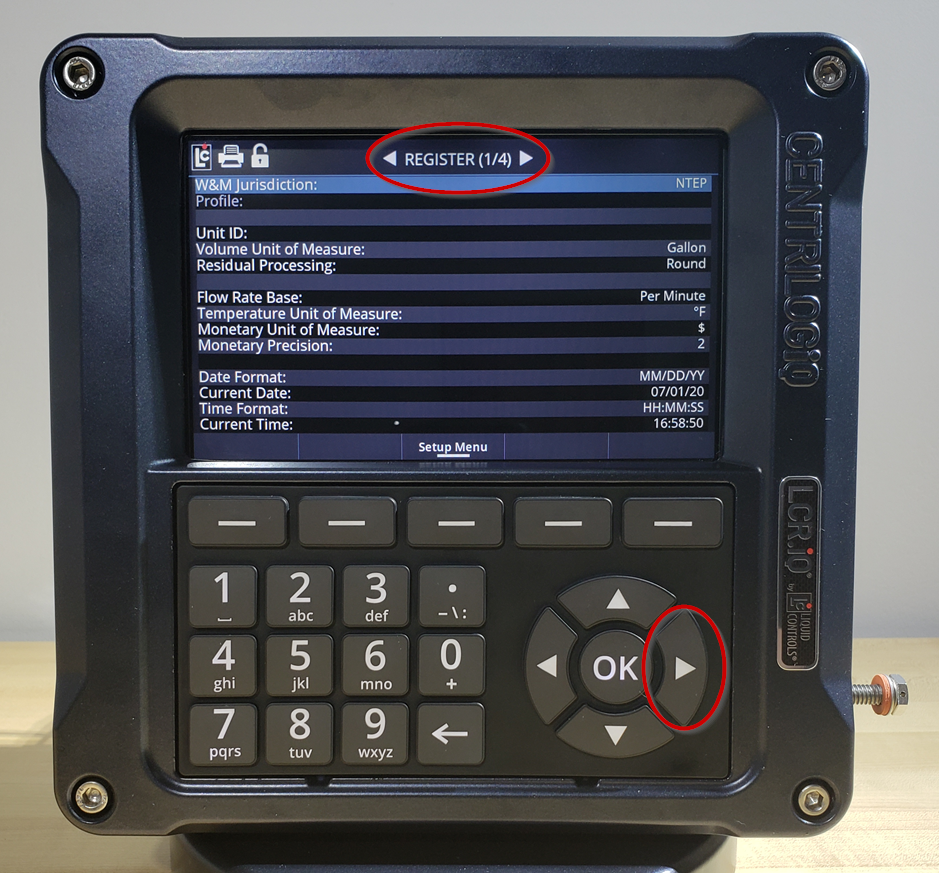

4. There are 4 screens in the Register menu. Use the Right & Left arrows to navigate through the screens. Printer Type is on screen 3.

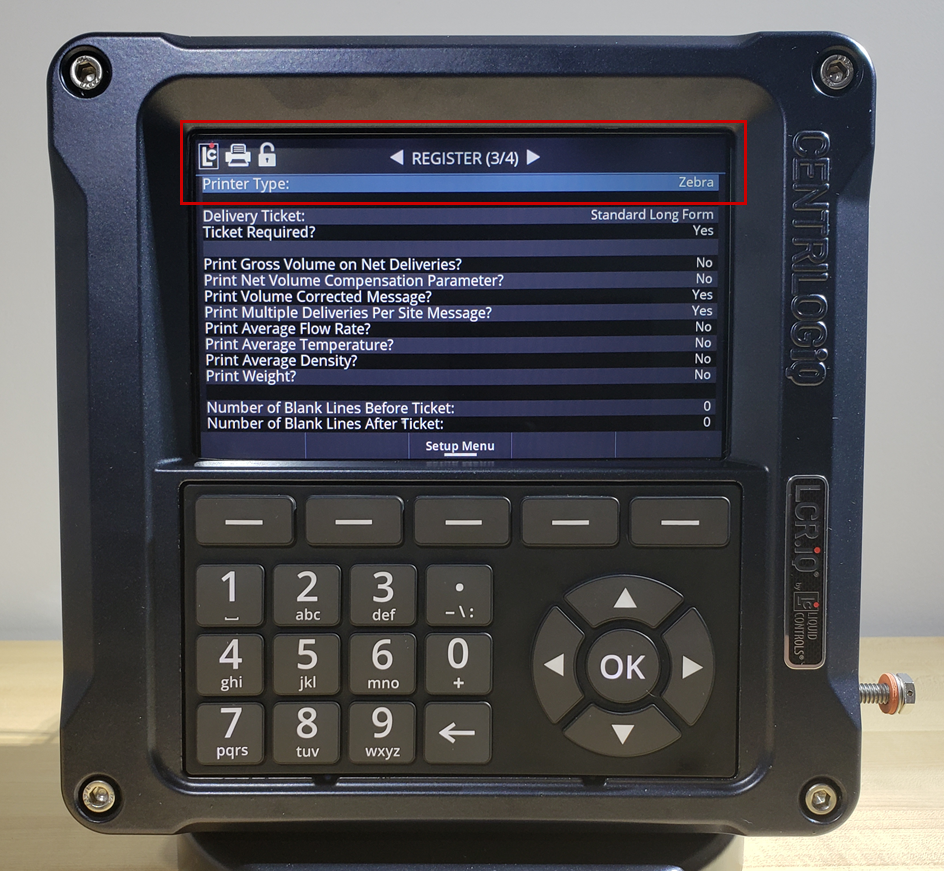

5. On screen 3 of the Register menu you will see the Printer Type setting. Make sure it is highlighted and press the OK button to edit it.

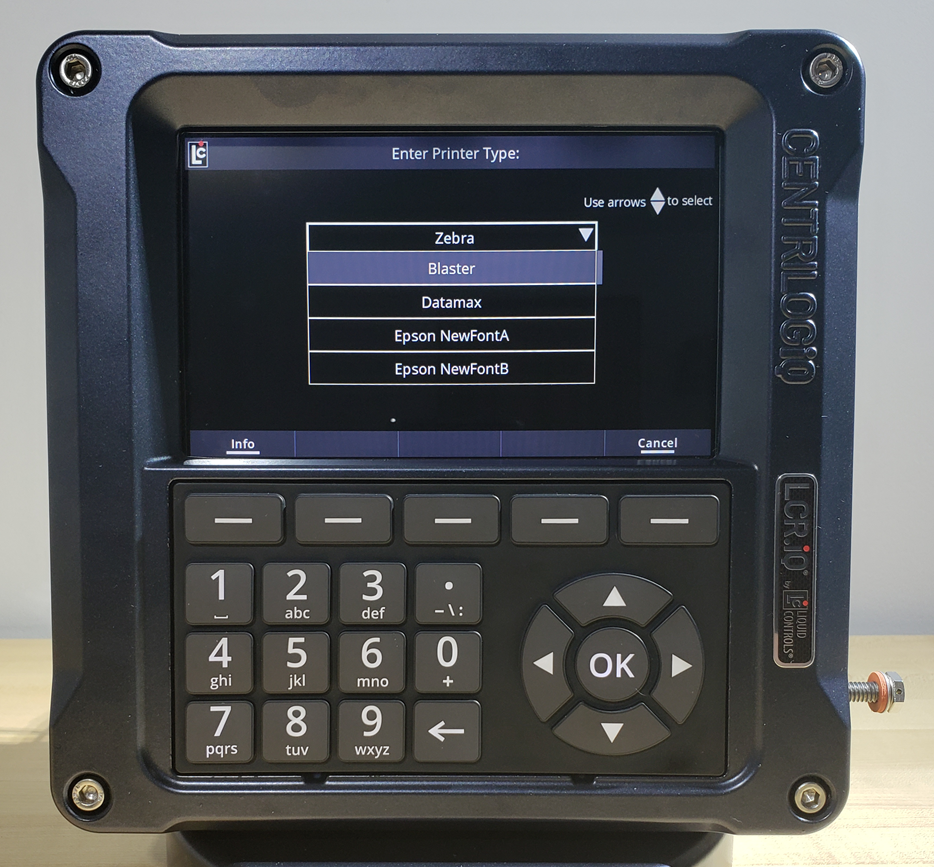

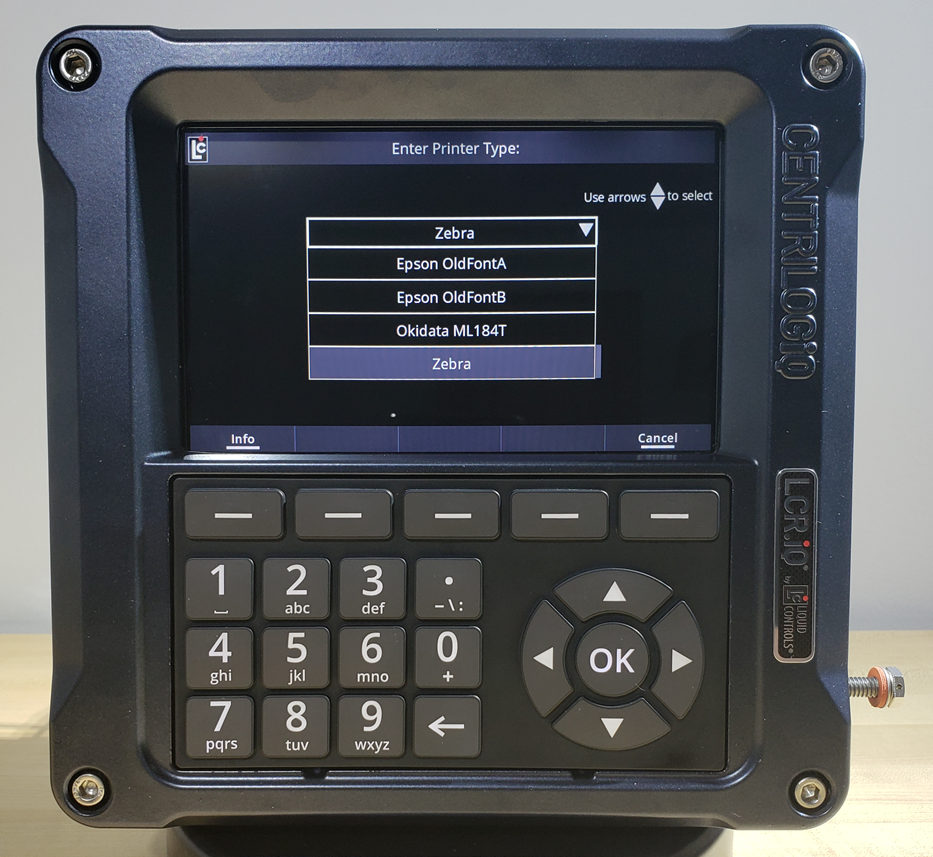

6. Use the Up & Down arrows to navigate through the list of Printer Types and the OK button to select your printer. The list consist of:

   Blaster
   Datamax
   Epson NewFontA  -  (*Note: This is used for Epson TM-T88 printers)
   Epson NewFontB
   Epson OldFontA   -  (*Note: This is used for Epson 295 Slip printers)
   Epson OldFontB
   Okidata ML184T   -    (*Note: This is not to be used with Zebra Printers*)
   Zebra                    -    (*Note: Use this for Zebra Printers*)





7. You may need to power cycle the meter and printer to get them to connect.
