How do I put the LCR iQ meter in configuration mode?

Issue / Question:

• How do I put the LCR iQ meter in configuration mode?
• How do I change settings on the LCR iQ?

Environment:

• Liquid Controls LCR iQ meter

Answer:

• This is most often completed by a truck shop as it requires breaking the certification seal on the meter.
  *Note: If you are doing any work or changes to a truck that requires breaking the seal. Please test the truck with Mobile Delivery to make sure everything works before having the meter inspected again. If you would like assistance with testing then please contact Cargas Support to Schedule a Truck Shop Call. We like to schedule calls like this so that it does not take  support away from emergencies. Please help us by scheduling these calls ahead of time if you know a truck is going to be worked on.

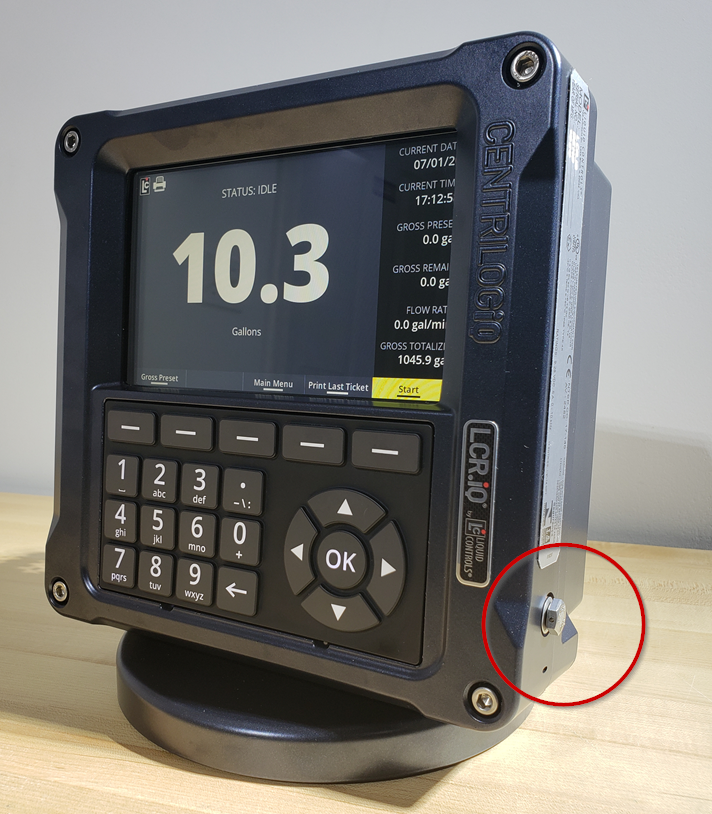

1. The LCR iQ has a bolt on the bottom right side of the meter that will putt it in configuration mode. First you will need to break the seal if there is one.

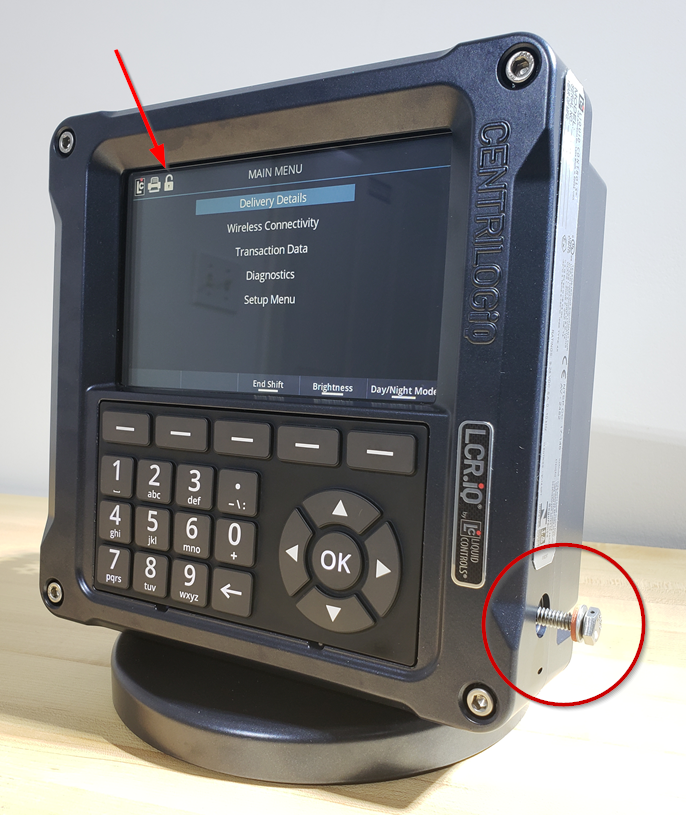

2. Then you just need to unscrew the bolt until it goes into configuration mode. If you are on the Home screen when you unscrew the config bolt then you will be directed to the Main Menu. Or you can tell if the meter is in configuration mode by the Unlock icon in the top left hand corner of the screen.
