Question:
How do I wire an Android tablet with a Liquid Controls LCR II meter and Epson TM-88 Printer?
Environment:
- New Mobile Delivery
- Android Tablet
- Liquid Controls LCR II Meter
- Epson TM-88 Printer
Answer:

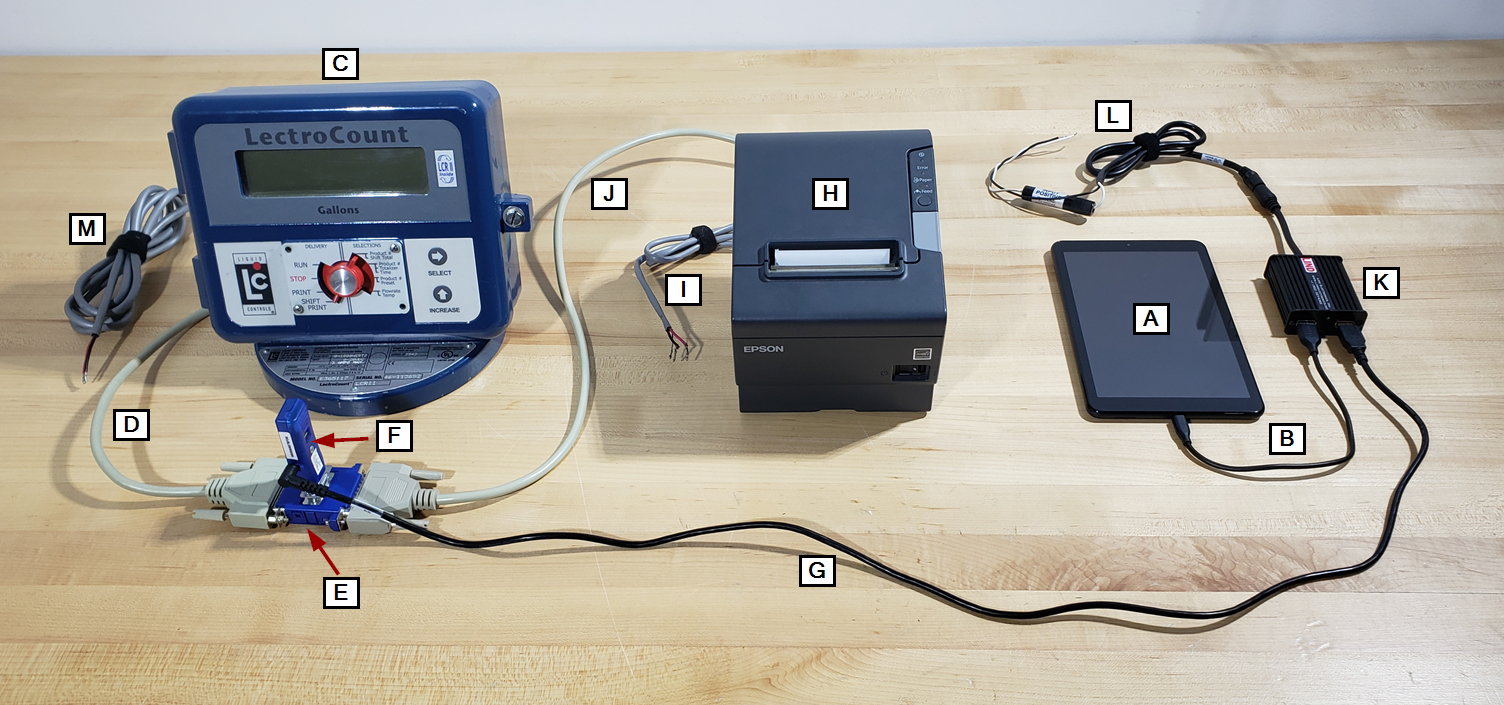

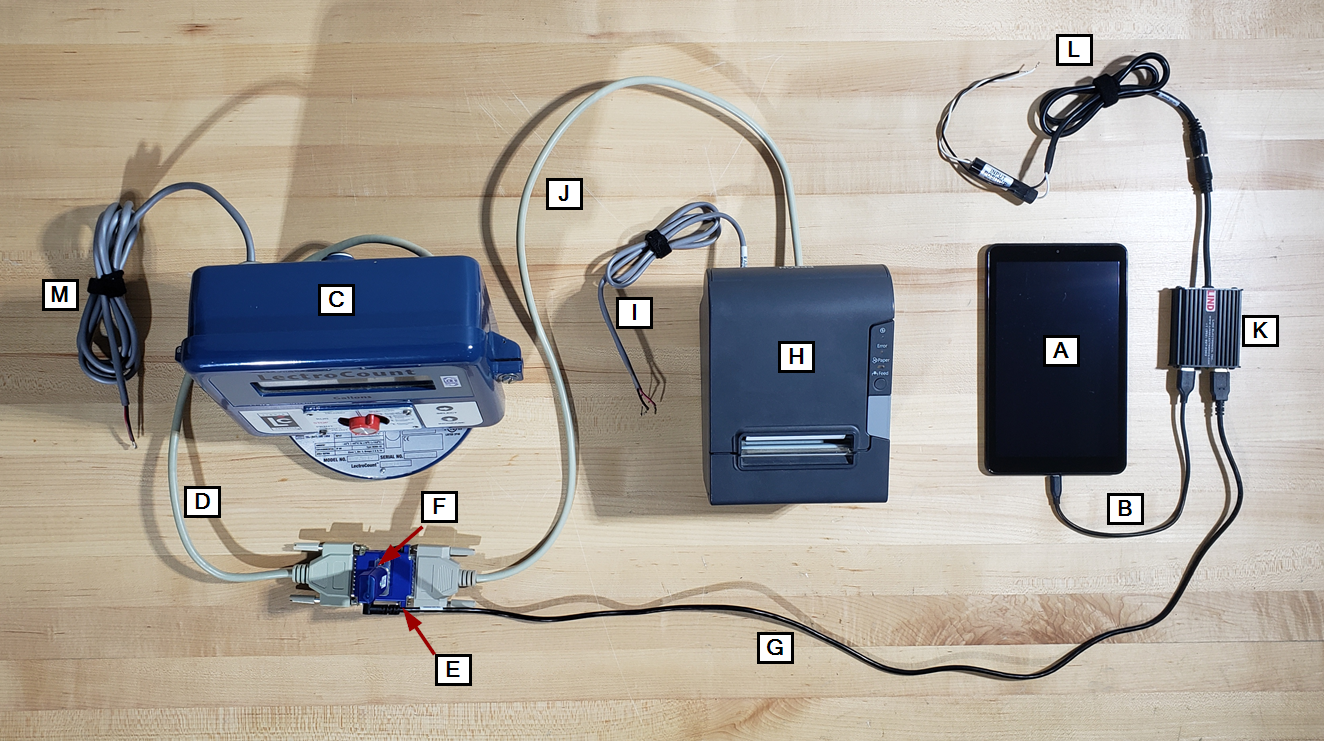

| A | Android Tablet | H | Epson TM-T88 Thermal Printer |
| B | Android USB Charging Cable | I | Epson TM-88 Power Cable (to fused truck power) |
| C | Liquid Controls LCR II Meter | J | DB25 25 Pin Serial Male/Female RS232 Cable Click Here For Amazon Link |
| D | Liquid Controls LCR II Communication Cable | K | Lind Power Adapter |
| E | Liquid Controls Lap Pad Adapter | L | Lind Power Adapter Power Cable (to fused truck power) |
| F | Firefly Bluetooth Adapter | M | Liquid Controls LCR II Power Cable (to fused truck power) |
| G | Firefly Bluetooth Adapter USB Power Cable |
