Question:
How do I wire an Android tablet with a Liquid Controls LCR II meter and Zebra ZQ520 Bluetooth Thermal Printer?
Environment:
- New Mobile Delivery
- Android Tablet
- Liquid Controls LCR II Meter
- Zebra ZQ520 Thermal Printer
Answer:

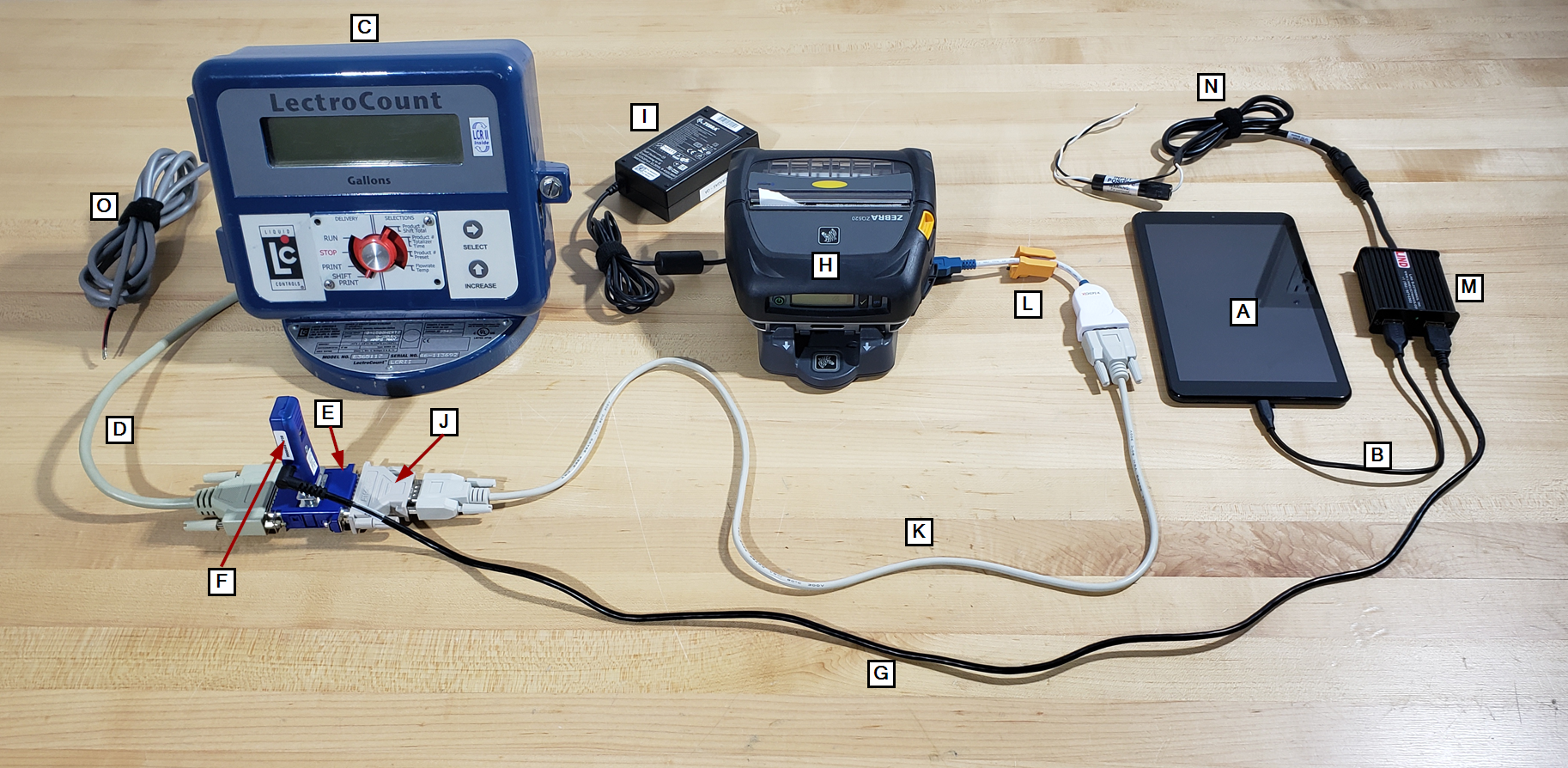

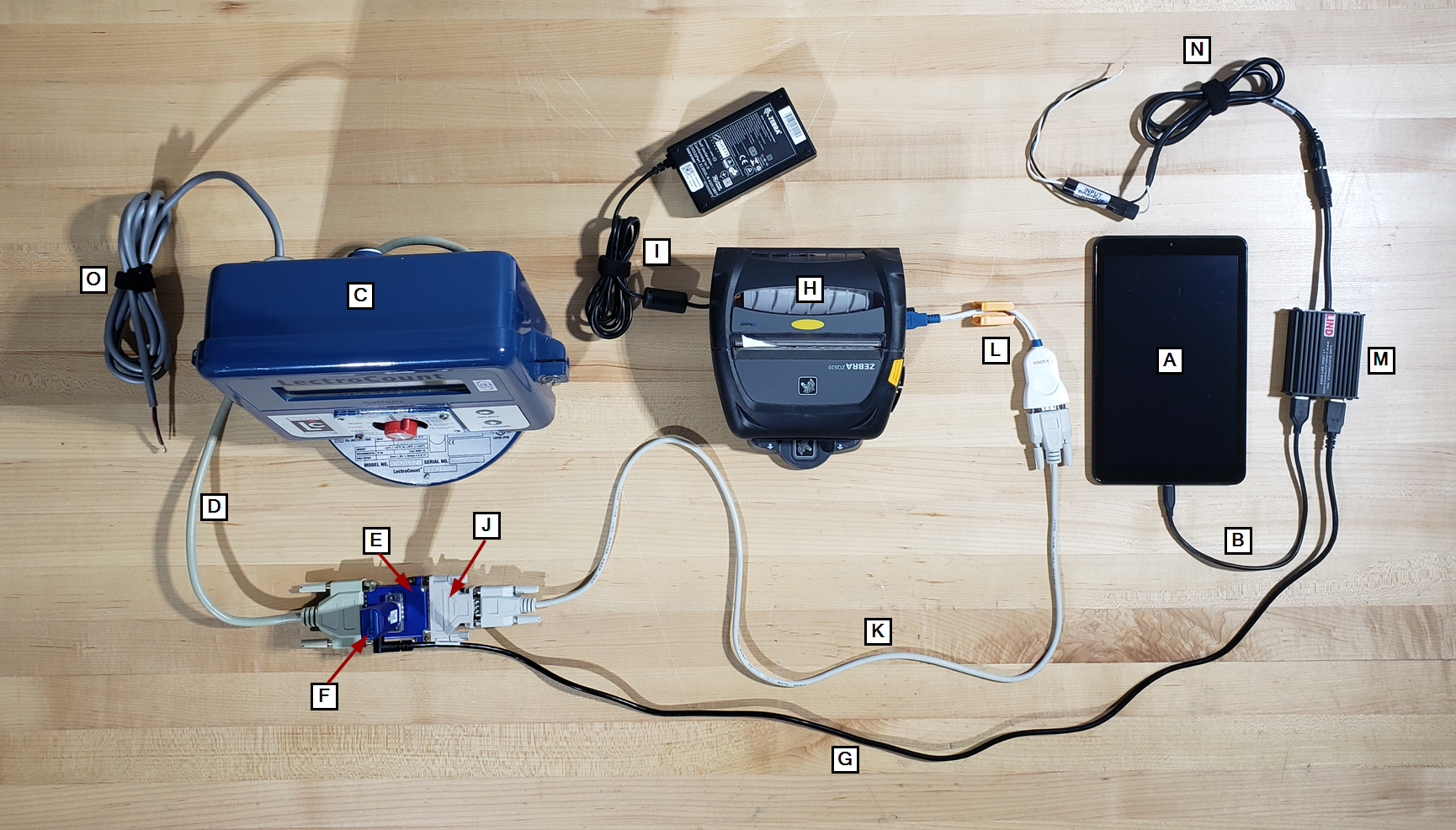

| A | Android Tablet | I | Zebra ZQ520 Thermal Bluetooth Power Cable (to fused truck power) |
| B | Android USB Charging Cable | J | DB9 male to DB25 female Adapter ***Cargas does NOT supply this*** Click Here for Amazon Link |
| C | Liquid Controls LCR II Meter | K | DB9 Pin to DB9 Pin F/F Serial Cable ***Cargas does NOT supply this*** Click Here for Amazon Link |
| D | Liquid Controls LCR II Communications Cable | L | Zebra ZQ520 USB to Serial Cable |
| E | Liquid Controls Lap Pad Adapter | M | Lind Power Adapter |
| F | Firefly Bluetooth Adapter | N | Lind Power Adapter Power Cable (to fused truck power) |
| G | Firefly Bluetooth Adapter USB Power Cable | O | Liquid Controls LCR II Power Cable (to fused truck power) |
| H | Zebra ZQ520 Thermal Bluetooth Printer |
