How To Print An Epson TM-88 Configuration Ticket

Question:

  • How to print a Epson TM-88 Printer Configuration Ticket
  • How to print a Epson TM-88 Calibration Ticket
  • How do I see my Epson TM-88 printer settings

Environment:

  • Epson TM-88 Printer

Answer:

You can print out a configuration ticket by putting the printer in a configuration mode. You can simply do this by following these steps.

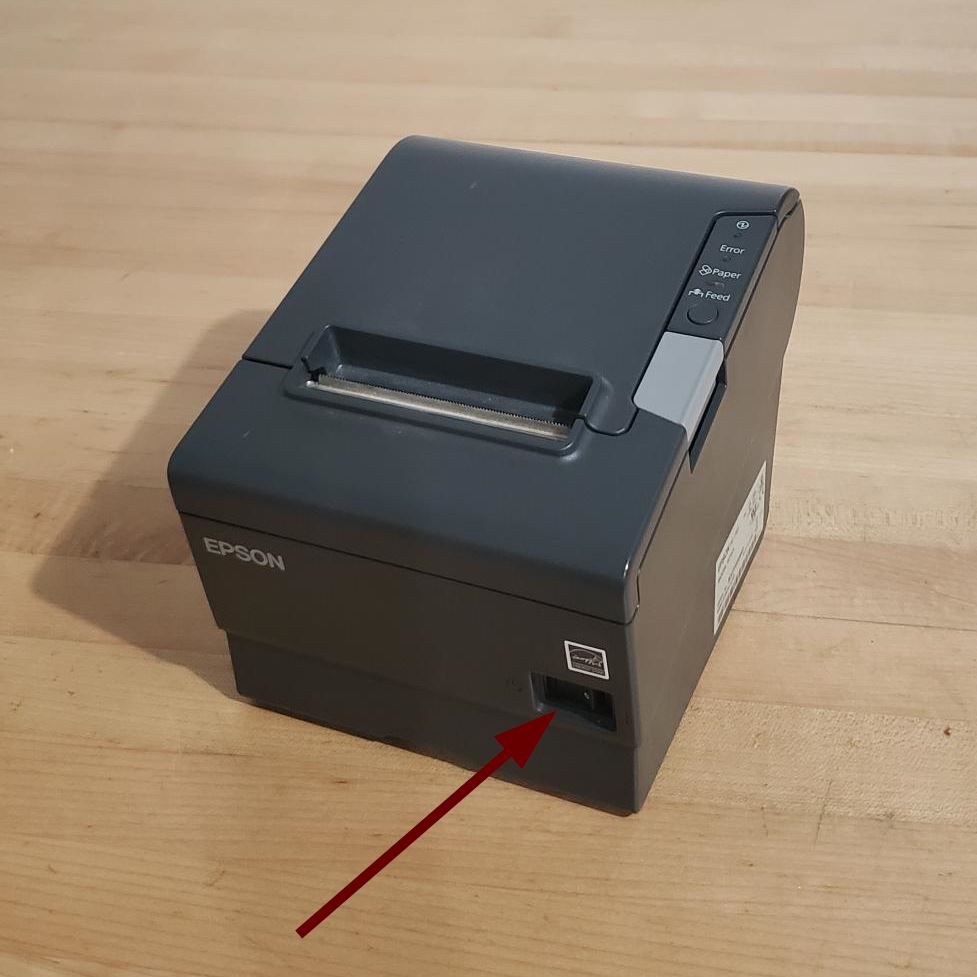

  1. First you need to turn off the printer by using it's Power Switch

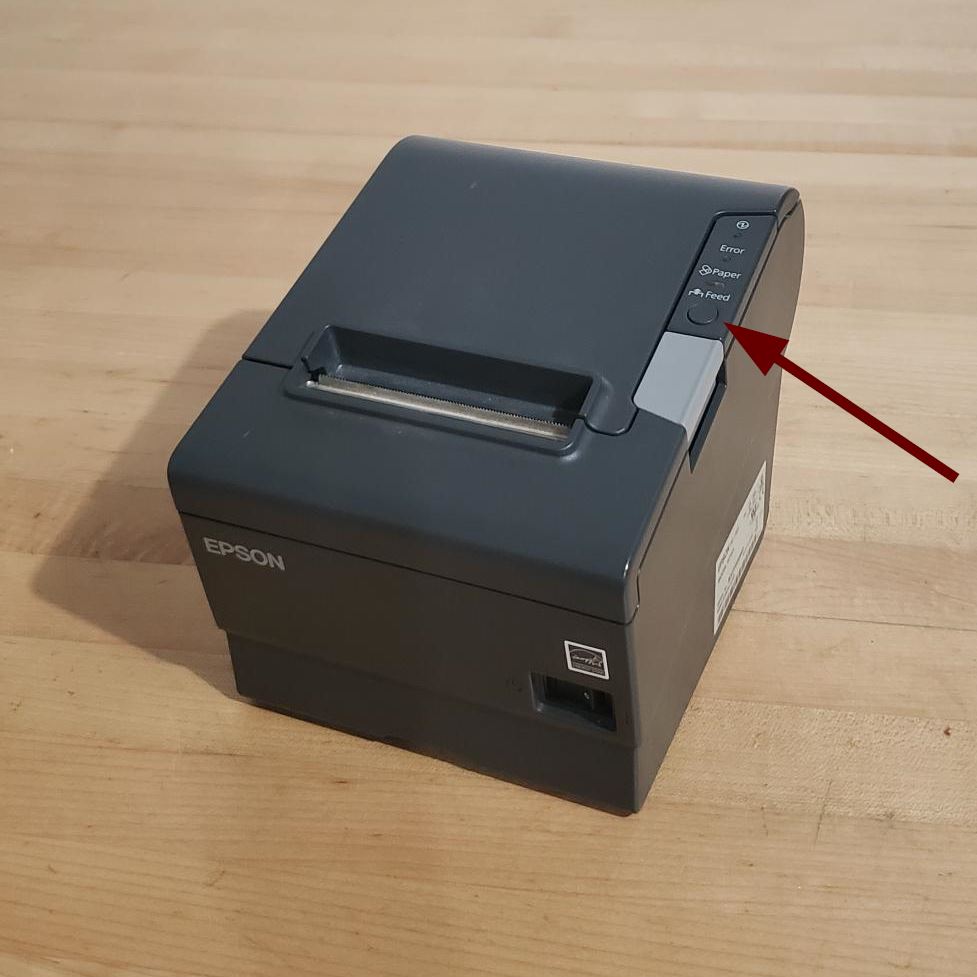

  2. Then you need to hold down the Feed button through the next step


  3. Turn on the printer using the Power Switch AND continue holding the Feed button down until the printer starts to print.


  4. After the configuration ticket is finished printing the printer will be in a configuration mode. You will need to turn the printer off for a few moments and then turn it back on to resume the normal printing mode.

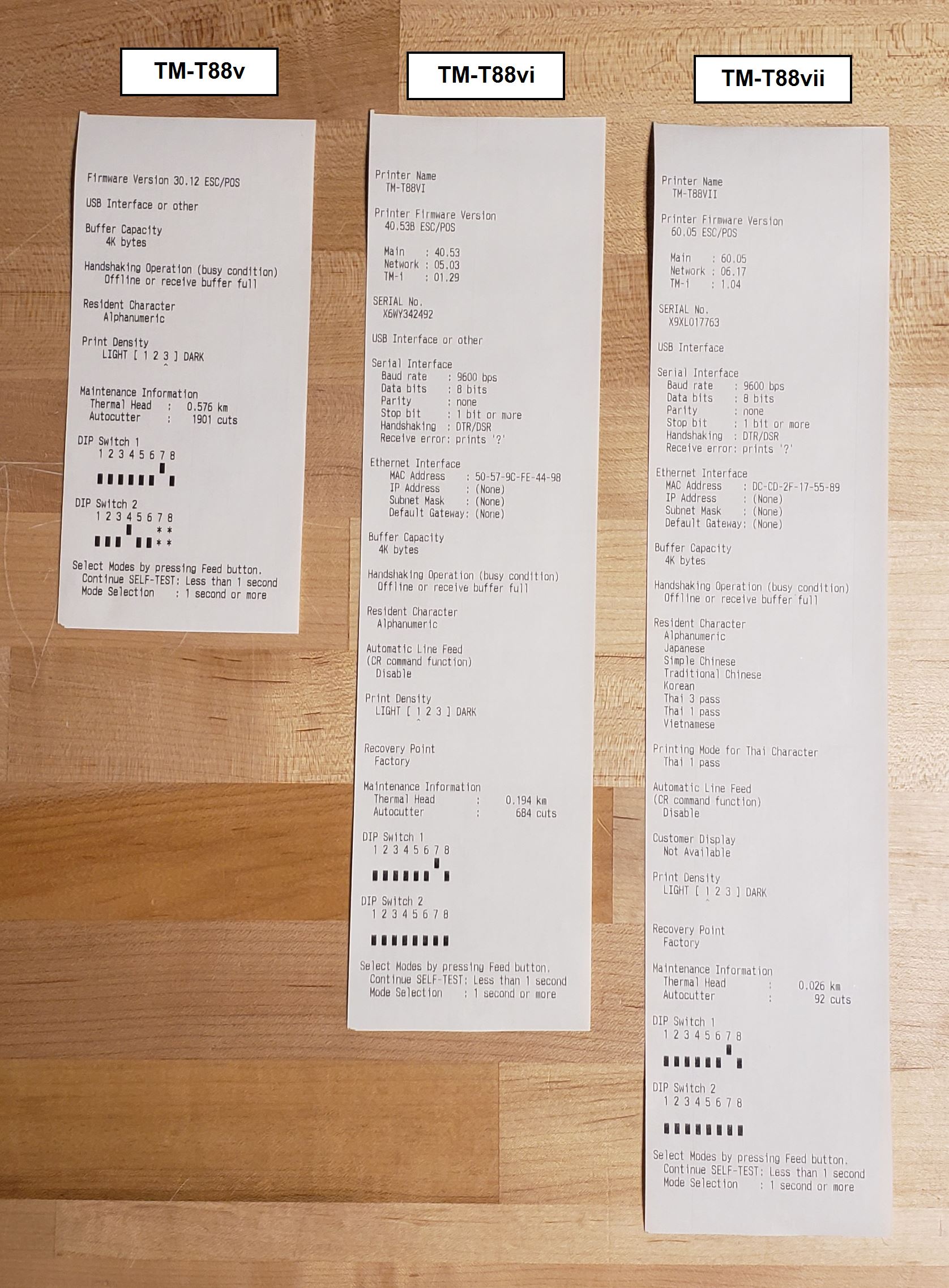

Example of Epson TM88 Configuration Ticket
Click Here To Enlarge Picture
