Question:
How do I wire an Android tablet with an Neptune E4000 meter and Zebra ZQ520/ZQ521 Thermal Bluetooth Printer?
Environment:
- New Mobile Delivery
- Android Tablet
- Neptune E4000
- Zebra ZQ520 Thermal Bluetooth Printer
- Zebra ZQ521 Thermal Bluetooth Printer
Answer:

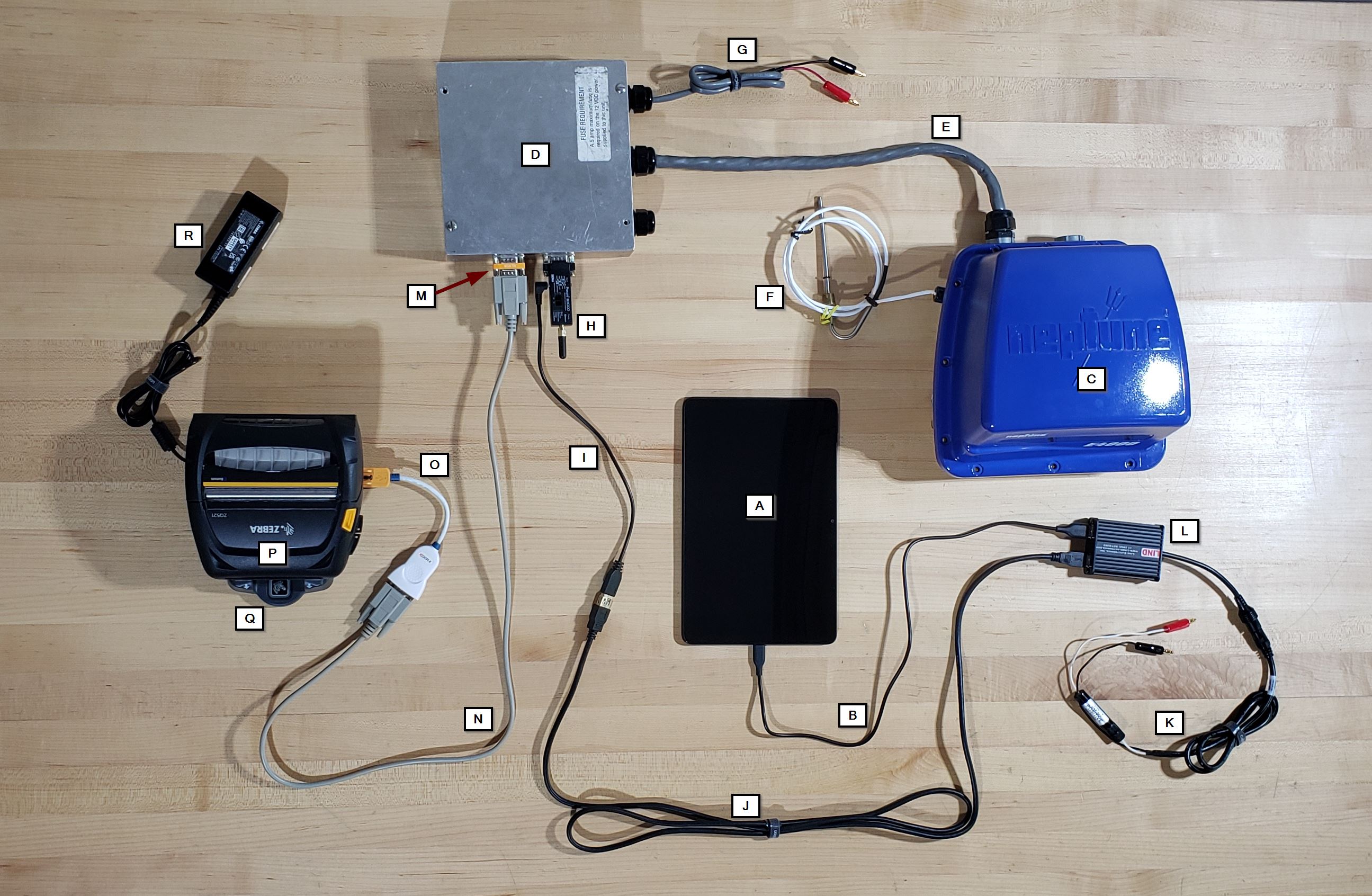

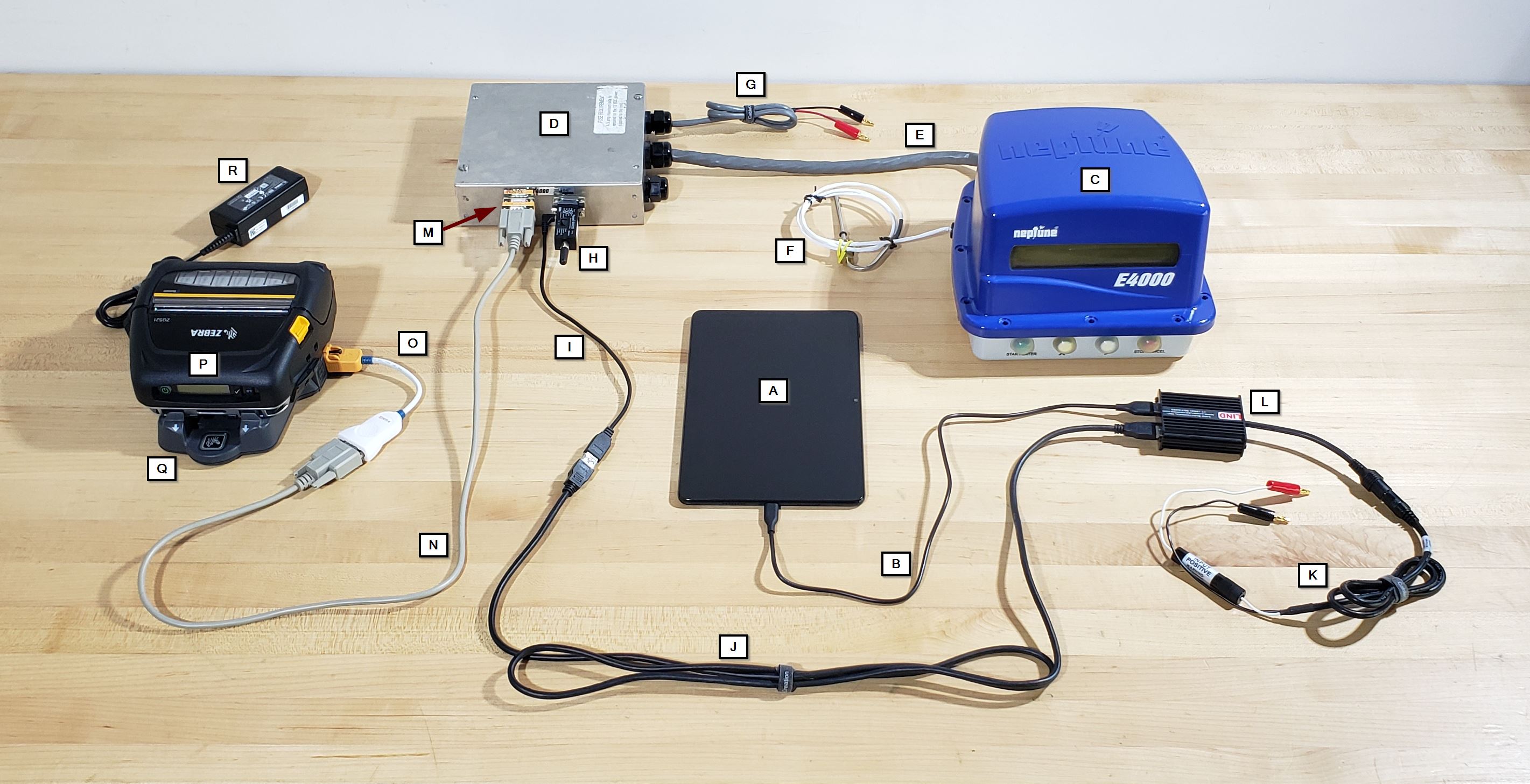

A) Android Tablet
B) USB C/USB Micro charging cable
C) Neptune E4000 Register
D) Neptune E4000 Power Control Module
E) Neptune E4000 Register Communication Cable
F) Neptune E4000 Temperature Probe
G) Neptune E4000 Power Cable ( to fused truck power )
H) Parani Bluetooth Adapter (*note* you do not use the null modem adapter)
I) Parani Bluetooth Adapter USB Power Cable
J) StarTech 6FT USB Extension Cable
K) Lind Power Adapter Power Cable ( to fused truck power )
L) Lind Power Adapter Power Adapter
M) DB9 Pin Female Null Modem Adapter Click Here For Amazon Link
N) DB9 9 Pin M/F Serial Cable Click Here For Amazon Link
O) Zebra ZQ520/ZQ521 USB to DB9 Pin Serial Adapter
P) Zebra ZQ520/ZQ521 Thermal Bluetooth Printer
Q) Zebra ZQ520/ZQ521 Vehicle Dock
R) Zebra ZQ520/ZQ521 Power Cable ( to fused truck power )
(*Note* To view full size pictures - Right Click Picture > Open Image In New Tab)

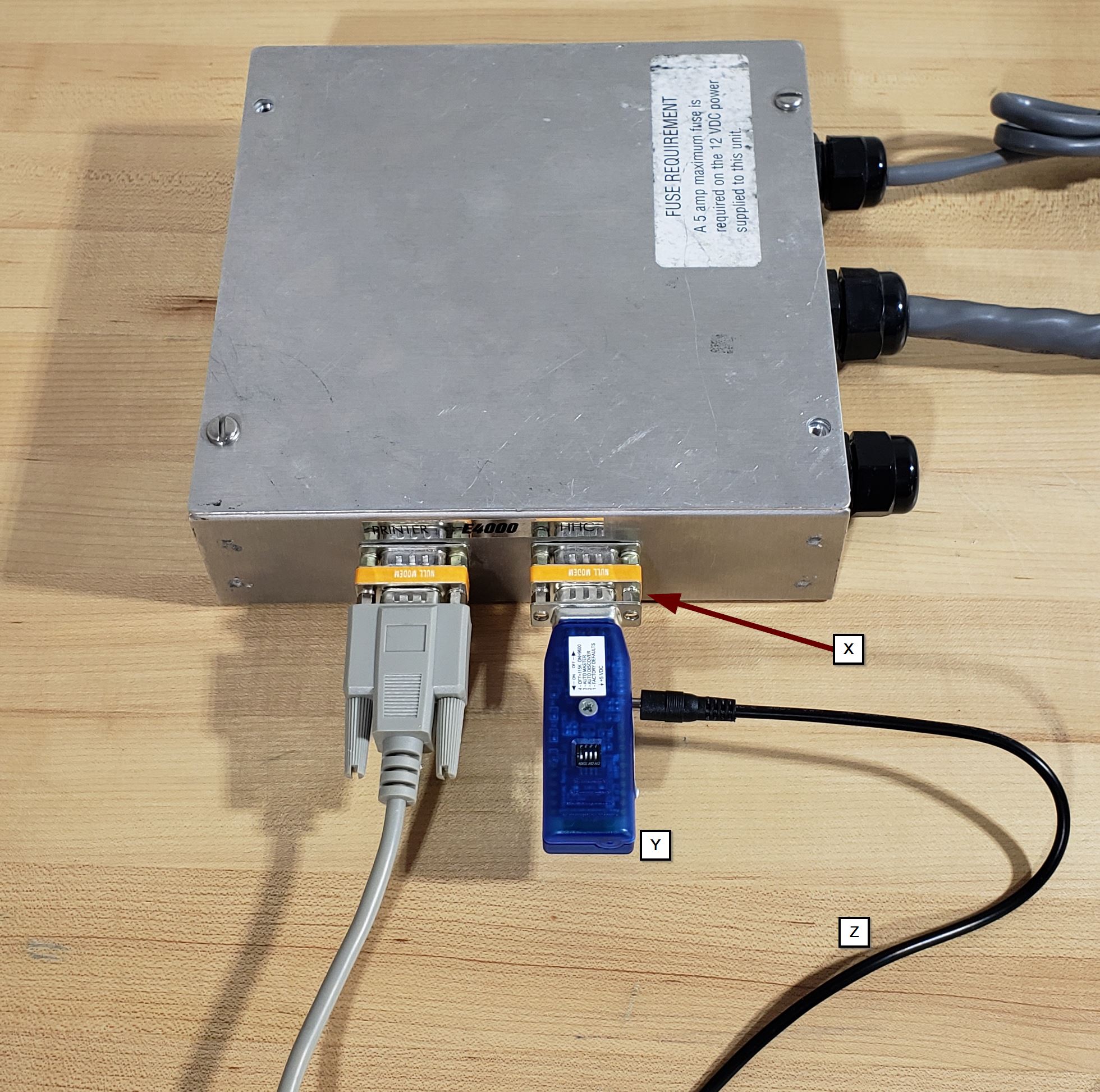

Firefly Bluetooth Adapters users:
If you are using a Firefly Bluetooth Adapter instead of the Parani Bluetooth Adapter then you will not be using H - I - or J in the above pictures. You will be using the configuration below instead.
X) DB9 Pin Female Null Modem Adapter Click Here For Amazon Link (*note* this is the same null modem adapter that the printer uses which is M in the above pictures.)
Y) Firefly Bluetooth Adapter
Z) Firefly USB power cable that plugs into the Lind Adapter
