Question:
How do I wire an Android tablet with an Neptune E4000 meter and Cognitive Blaster Thermal Bluetooth Printer?
Environment:
- New Mobile Delivery
- Android Tablet
- Neptune E4000
- Cognitive Blaster Thermal Bluetooth Printer
Answer:

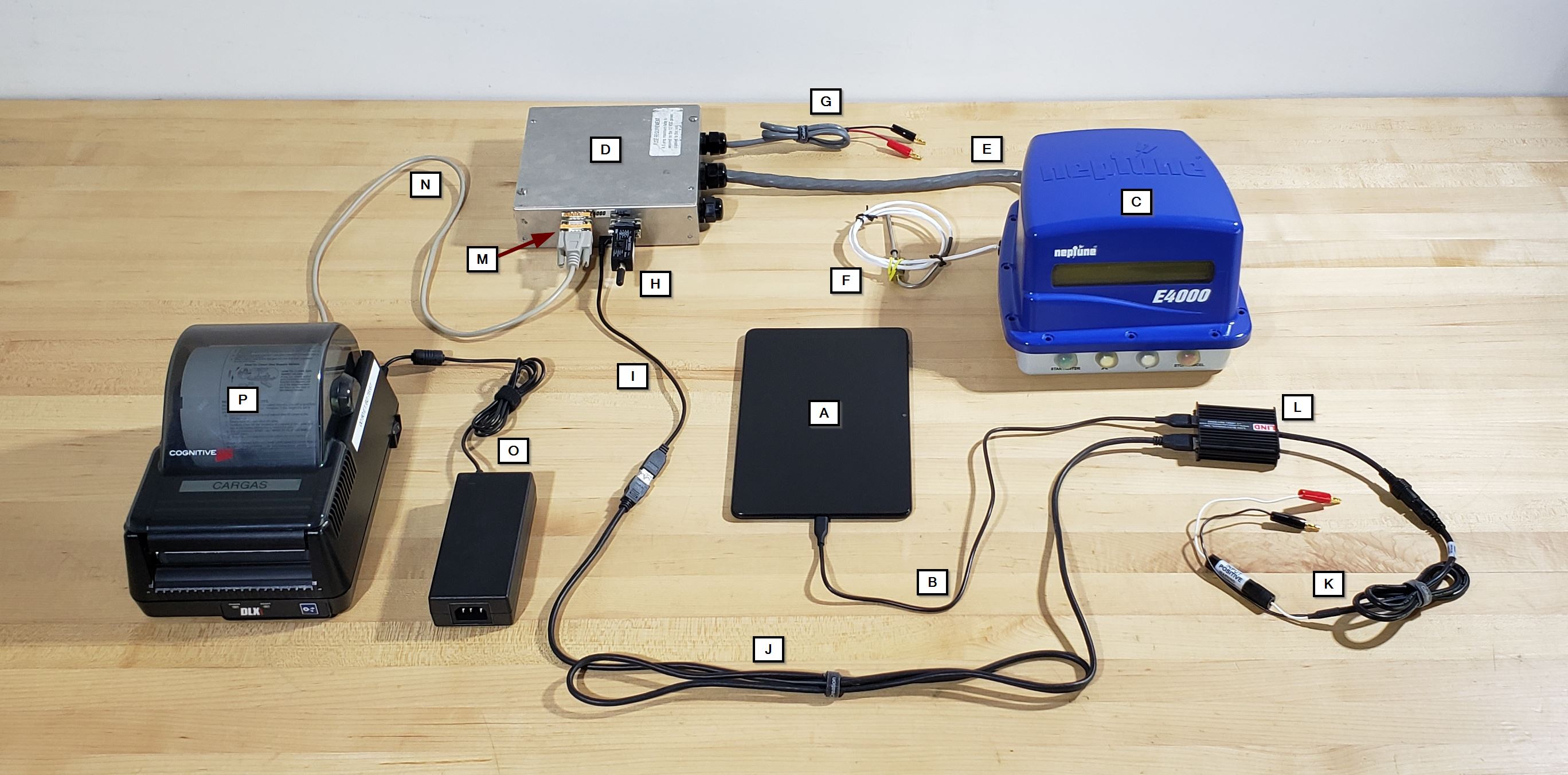

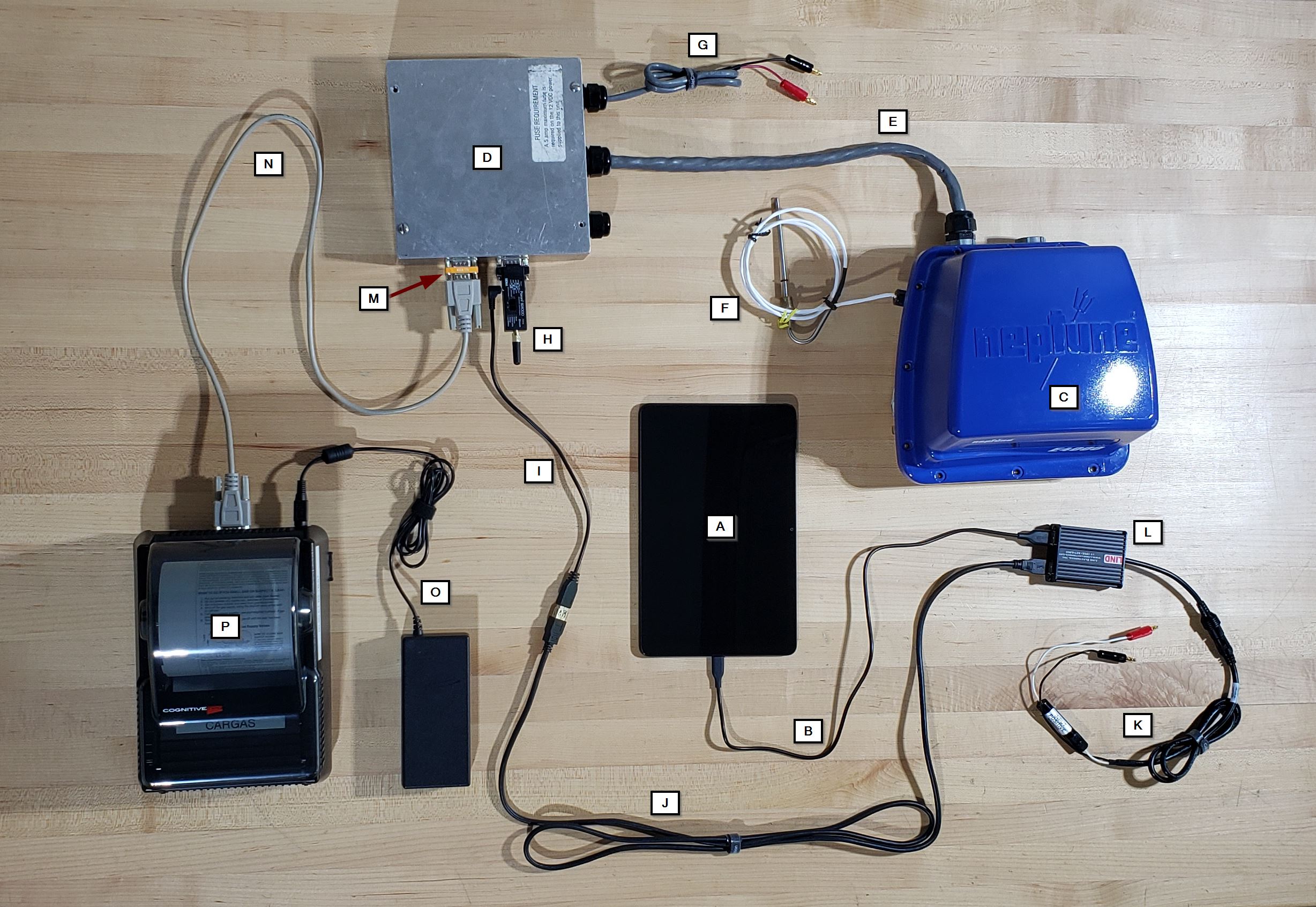

A) Android Tablet
B) USB C/USB Micro charging cable
C) Neptune E4000 Register
D) Neptune E4000 Power Control Module
E) Neptune E4000 Register Communication Cable
F) Neptune E4000 Temperature Probe
G) Neptune E4000 Power Cable ( to fused truck power )
H) Parani Bluetooth Adapter (*note* you do not use the null modem adapter)
I) Parani Bluetooth Adapter USB Power Cable
J) StarTech 6FT USB Extension Cable
K) Lind Power Adapter Power Cable ( to fused truck power )
L) Lind Power Adapter Power Adapter
M) DB9 Pin Female Null Modem Adapter Click Here For Amazon Link
N) DB9 9 Pin M/M Serial Cable Click Here For Amazon Link
O) Cognitive Blaster Printer Power Cable ( to fused truck power )
P) Cognitive Blaster Thermal Bluetooth Printer
(*Note* To view full size pictures - Right Click Picture > Open Image In New Tab)

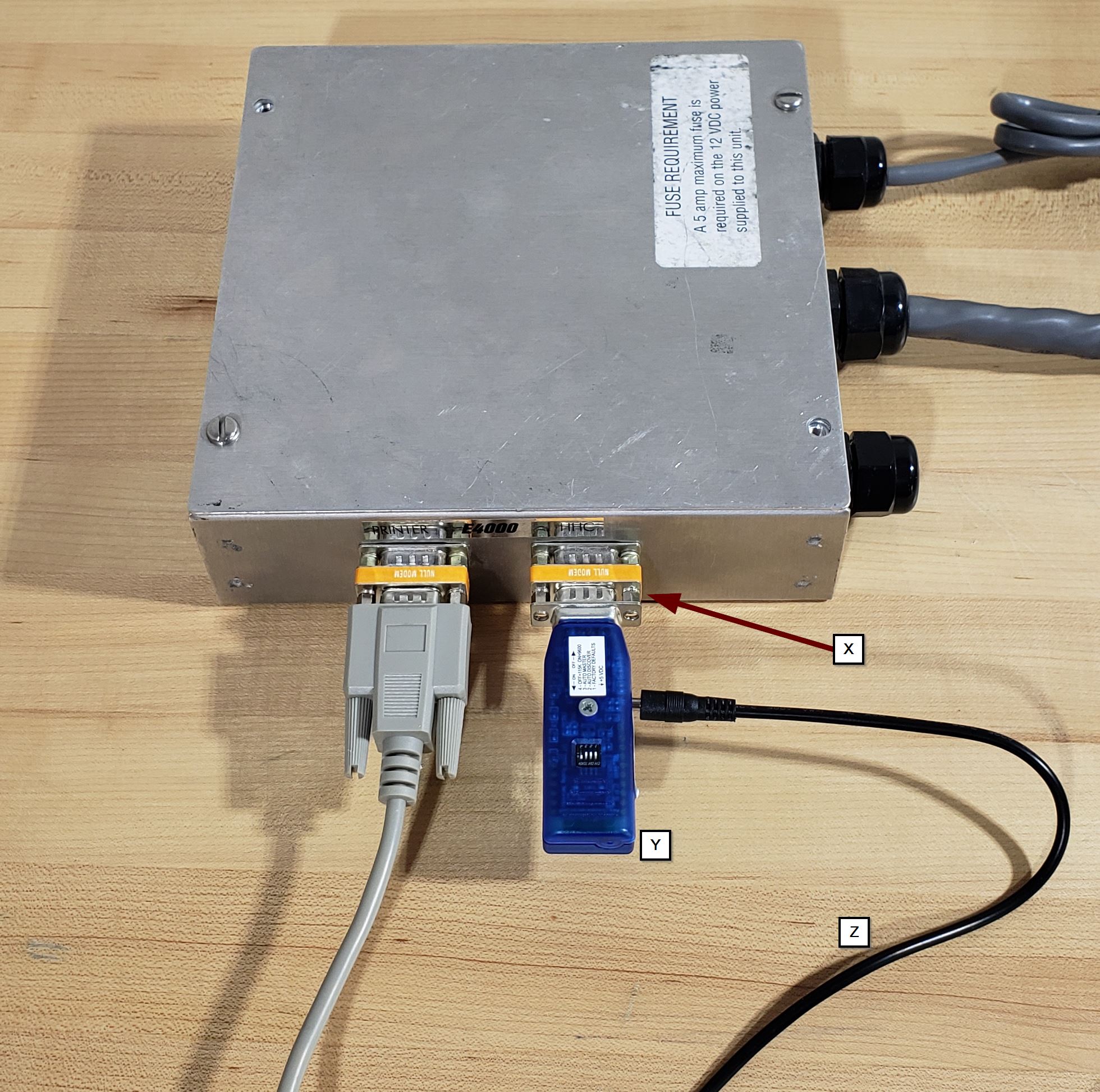

Firefly Bluetooth Adapters users:
If you are using a Firefly Bluetooth Adapter instead of the Parani Bluetooth Adapter then you will not be using H - I - or J in the above pictures. You will be using the configuration below instead.
X) DB9 Pin Female Null Modem Adapter Click Here For Amazon Link (*note* this is the same null modem adapter that the printer uses which is M in the above pictures.)
Y) Firefly Bluetooth Adapter
Z) Firefly USB power cable that plugs into the Lind Adapter
