Question:
How do I wire an Android tablet with an Neptune E4000 meter and Epson TM-T88 Thermal Printer?
Environment:
- New Mobile Delivery
- Android Tablet
- Neptune E4000
- Epson TM-T88 Thermal Printer
- Epson TM88 Printer
Answer:

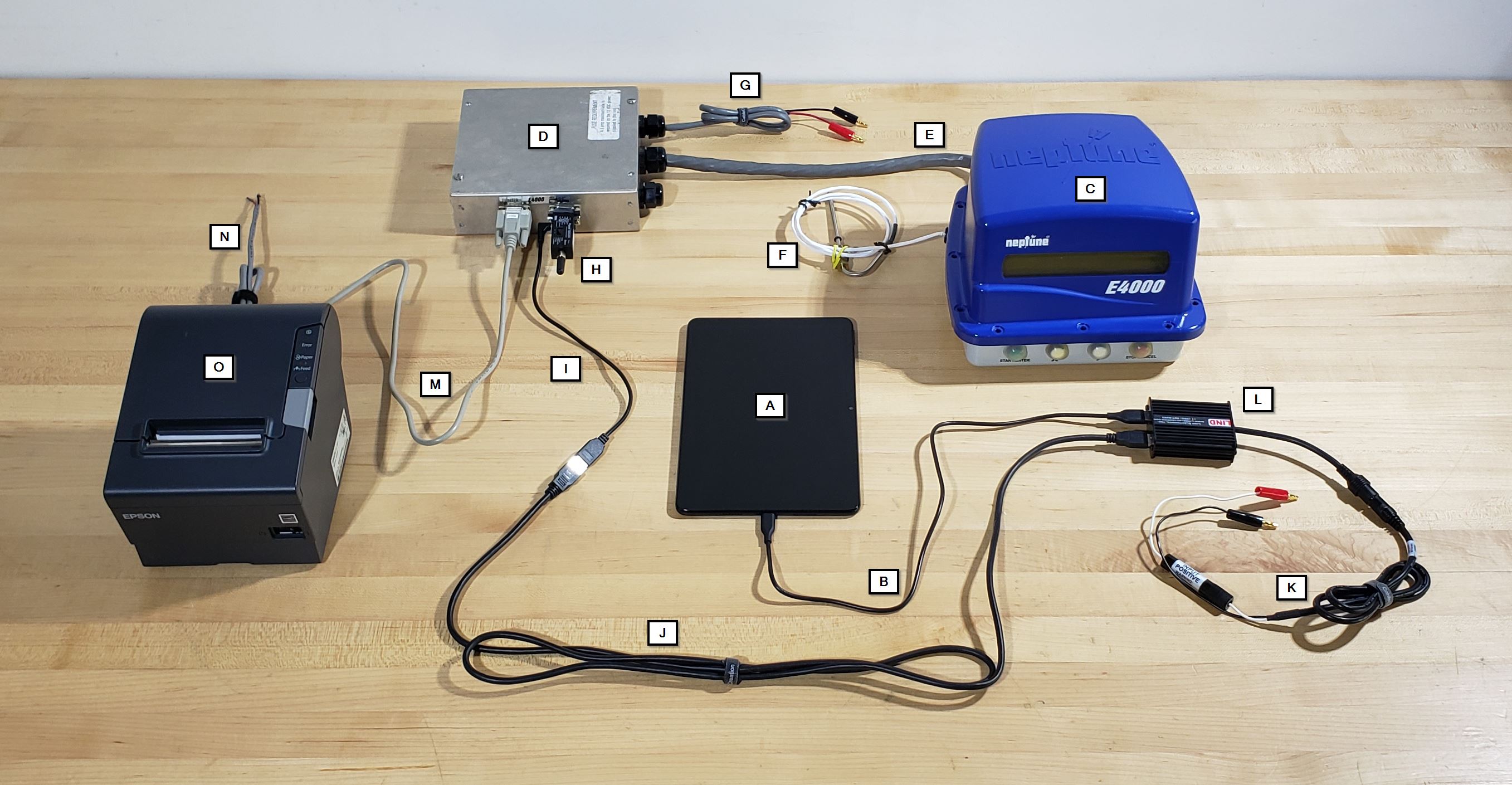

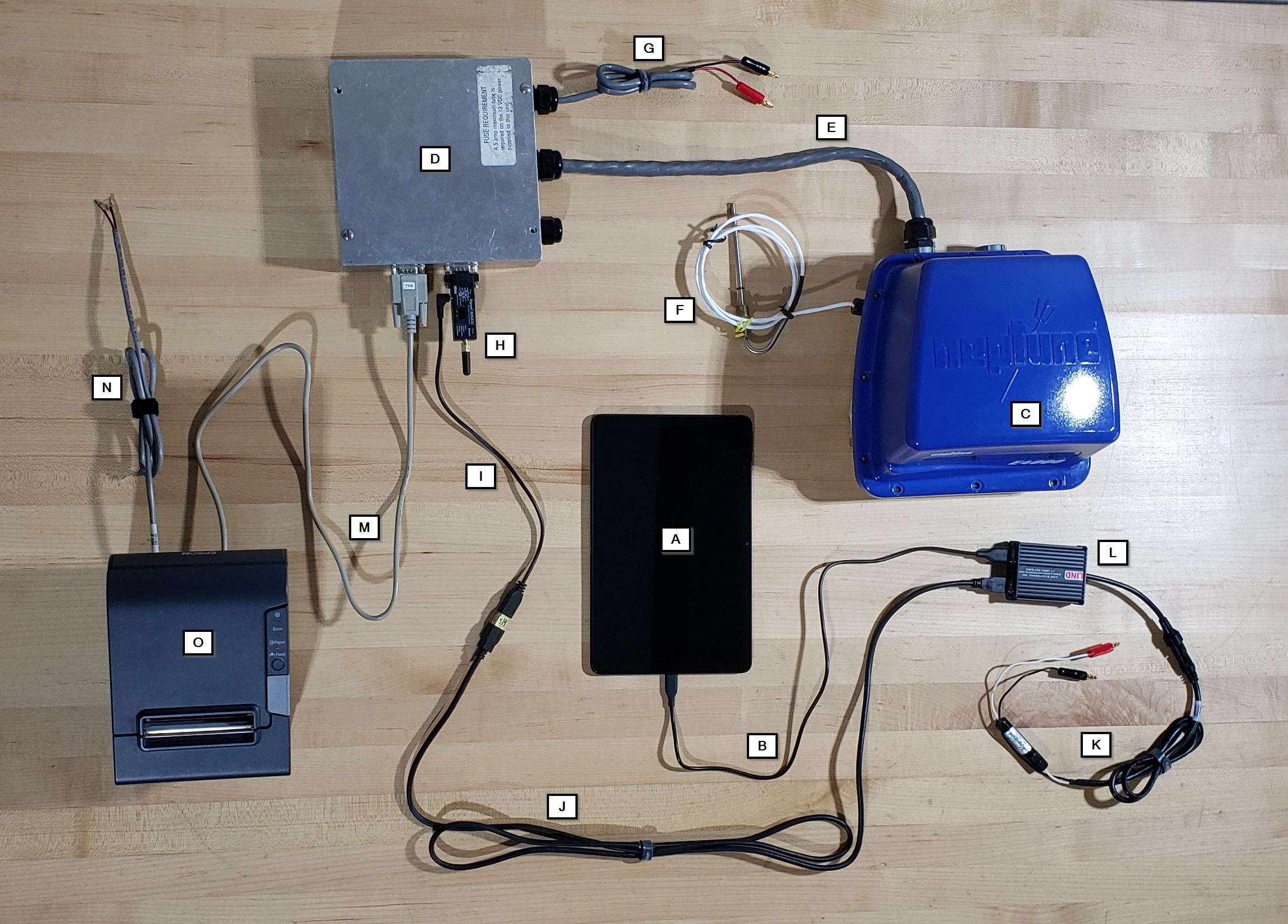

A) Android Tablet
B) USB C/USB Micro charging cable
C) Neptune E4000 Register
D) Neptune E4000 Power Control Module
E) Neptune E4000 Register Communication Cable
F) Neptune E4000 Temperature Probe
G) Neptune E4000 Power Cable ( to fused truck power )
H) Parani Bluetooth Adapter (*note* you do not use the null modem adapter)
I) Parani Bluetooth Adapter USB Power Cable
J) StarTech 6FT USB Extension Cable
K) Lind Power Adapter Power Cable ( to fused truck power )
L) Lind Power Adapter Power Adapter
M) DB9 to DB25 Pin NULL Modem F/M Serial Cable Click Here For Amazon Link
N) Epson TM-T88 Printer Power Cable ( to fused truck power )
O) Epson TM-T88 Thermal Printer
(*Note* To view full size pictures - Right Click Picture > Open Image In New Tab)

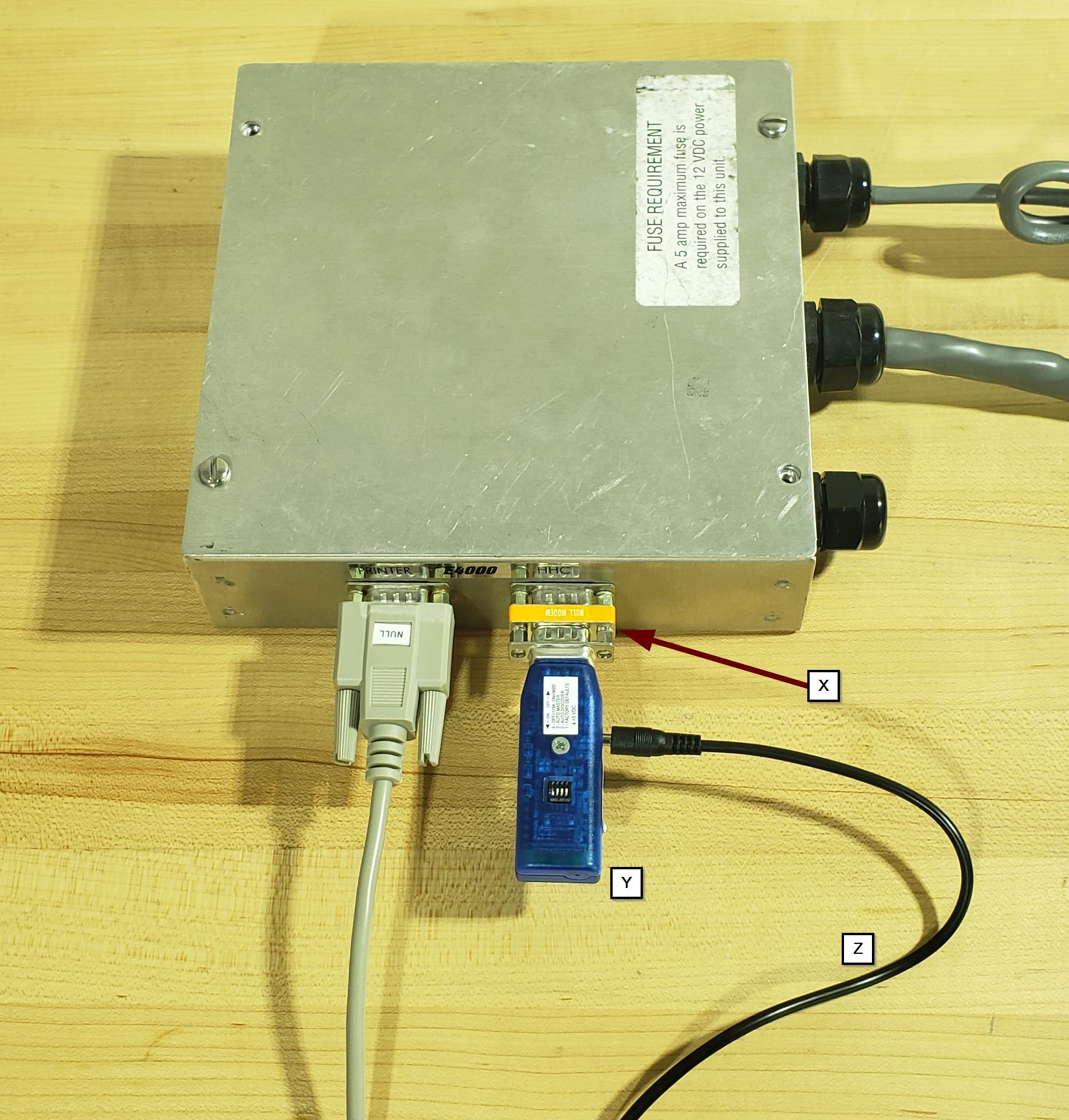

Firefly Bluetooth Adapters users:
If you are using a Firefly Bluetooth Adapter instead of the Parani Bluetooth Adapter then you will not be using H - I - or J in the above pictures. You will be using the configuration below instead.
X) DB9 Pin Female Null Modem Adapter Click Here For Amazon Link
Y) Firefly Bluetooth Adapter
Z) Firefly USB power cable that plugs into the Lind Adapter
