How to configure the printer type on a Neptune E4000 meter

Question:

How do I set the printer type on a Neptune E4000 meter?

Environment:

• New Mobile Delivery
• Android Tablet
• Neptune E4000

Answer:

Please follow the steps below to configure the printer type on a Neptune E4000 register. You will need to know the Supervisor password to enter into the setup menu.

1. First navigate to the main menu. You can press Stop/Cancel button several times to back all the way out to the main menu.

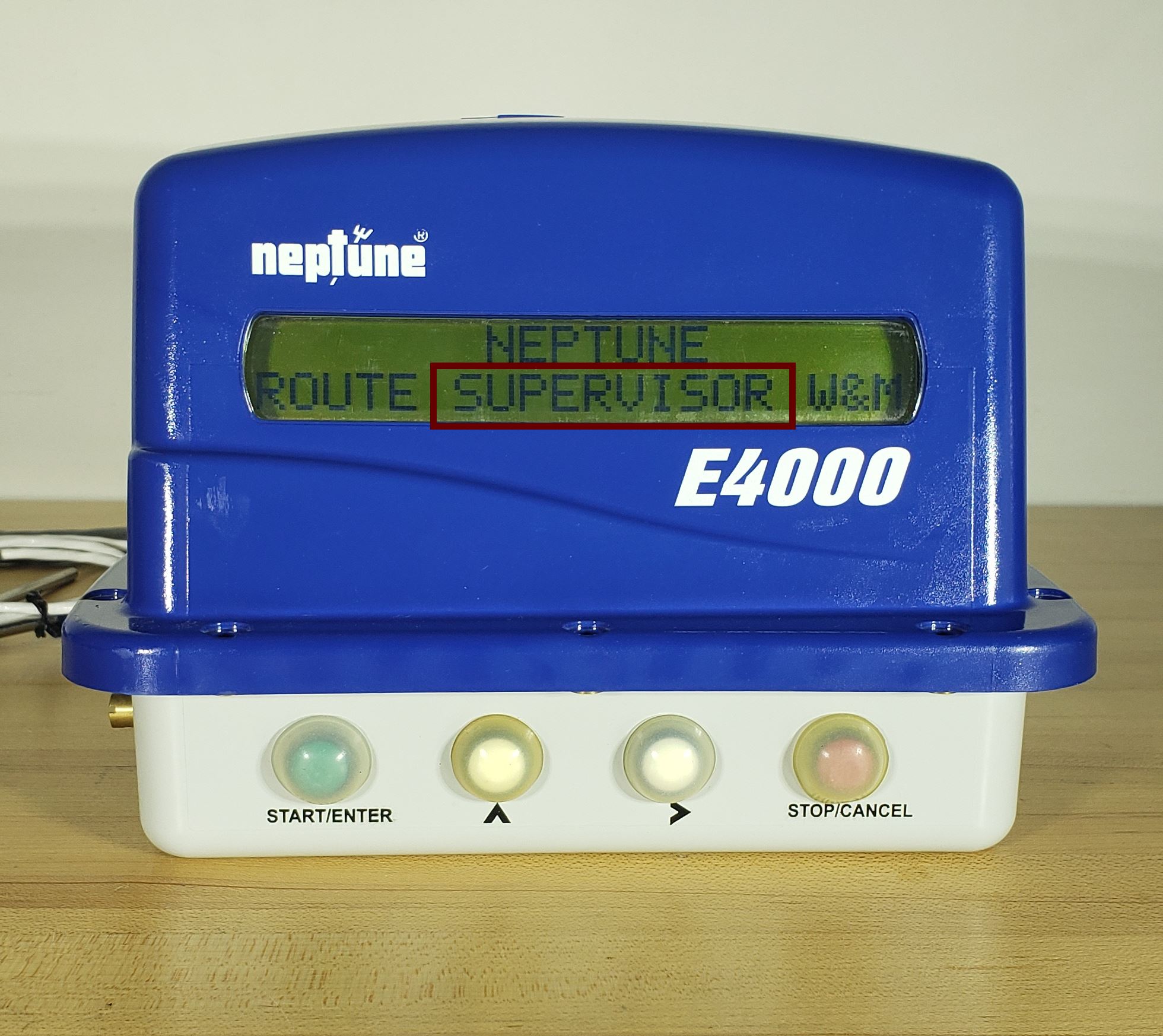

2. On the main menu use the Arrow > button to select Supervisor until it is flashing and press the Start/Enter button.

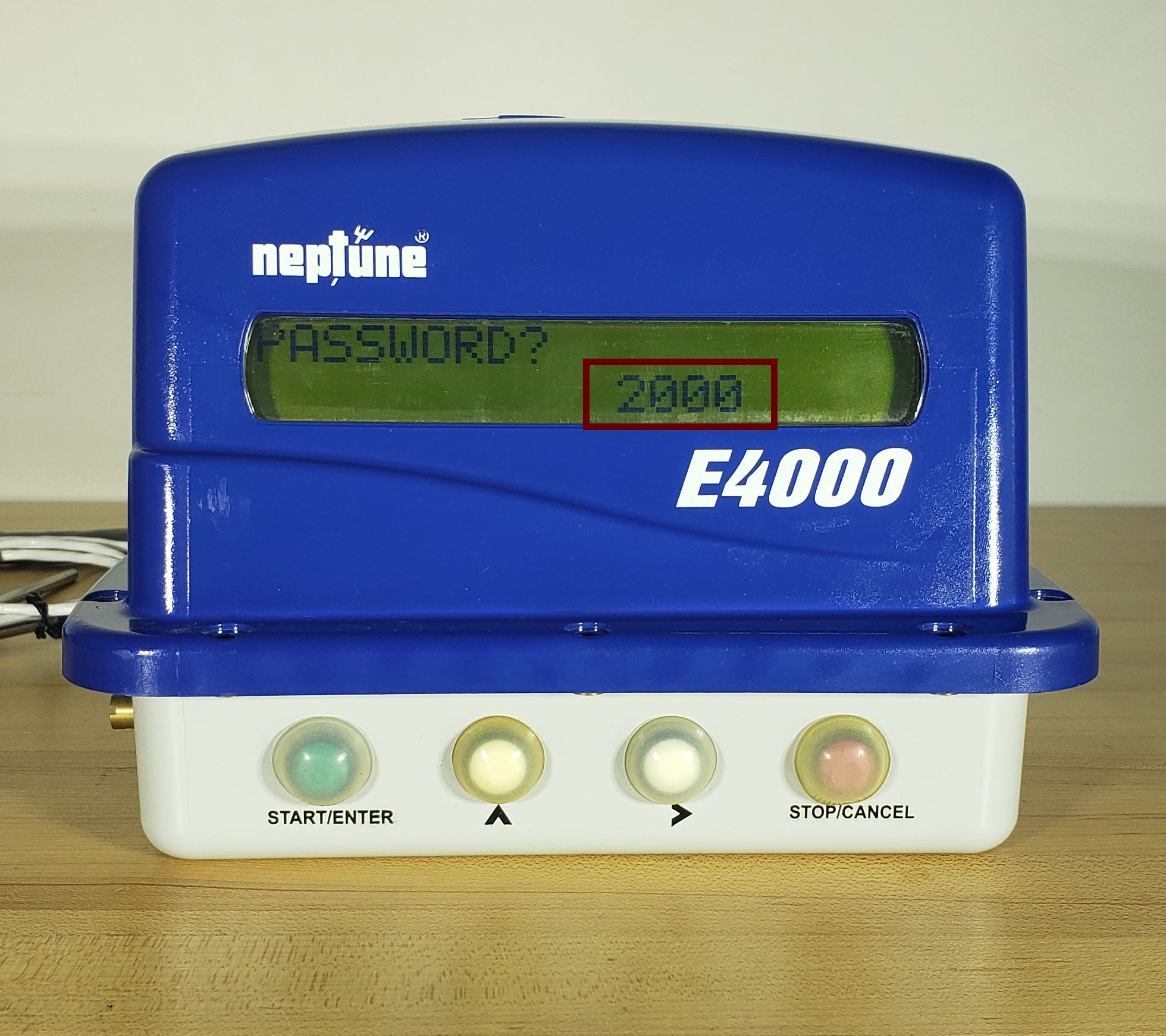

3. Enter in the Password by using the Arrow > and Arrow ^ buttons. Press Start/Enter when finished. The factory default password is 2000.





4. Navigate through the setup menu using the Arrow > button until you get to COM Ports and press the Start/Enter button.

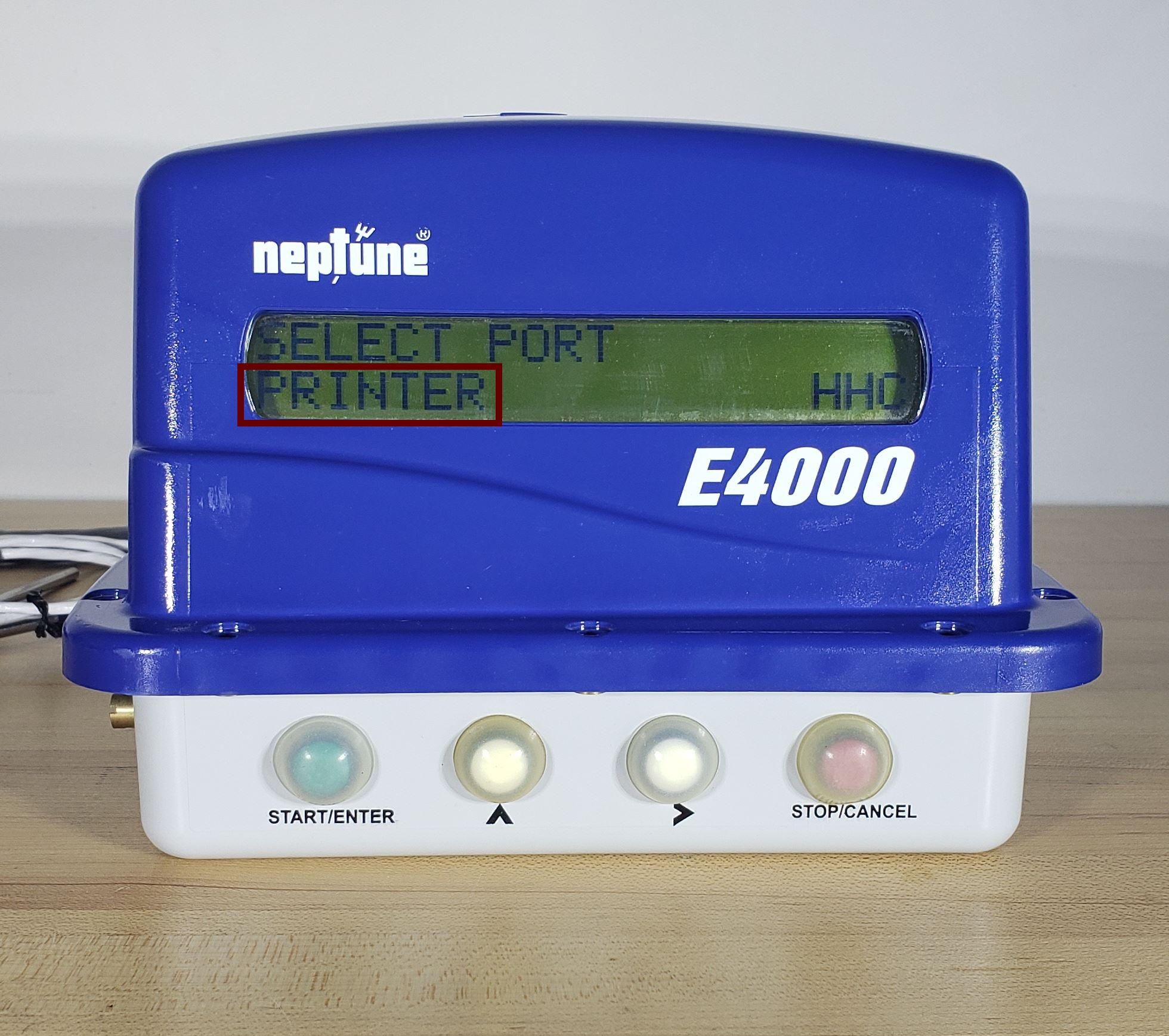

5. Use the Arrow > button to select Printer and then press the Start/Enter button.

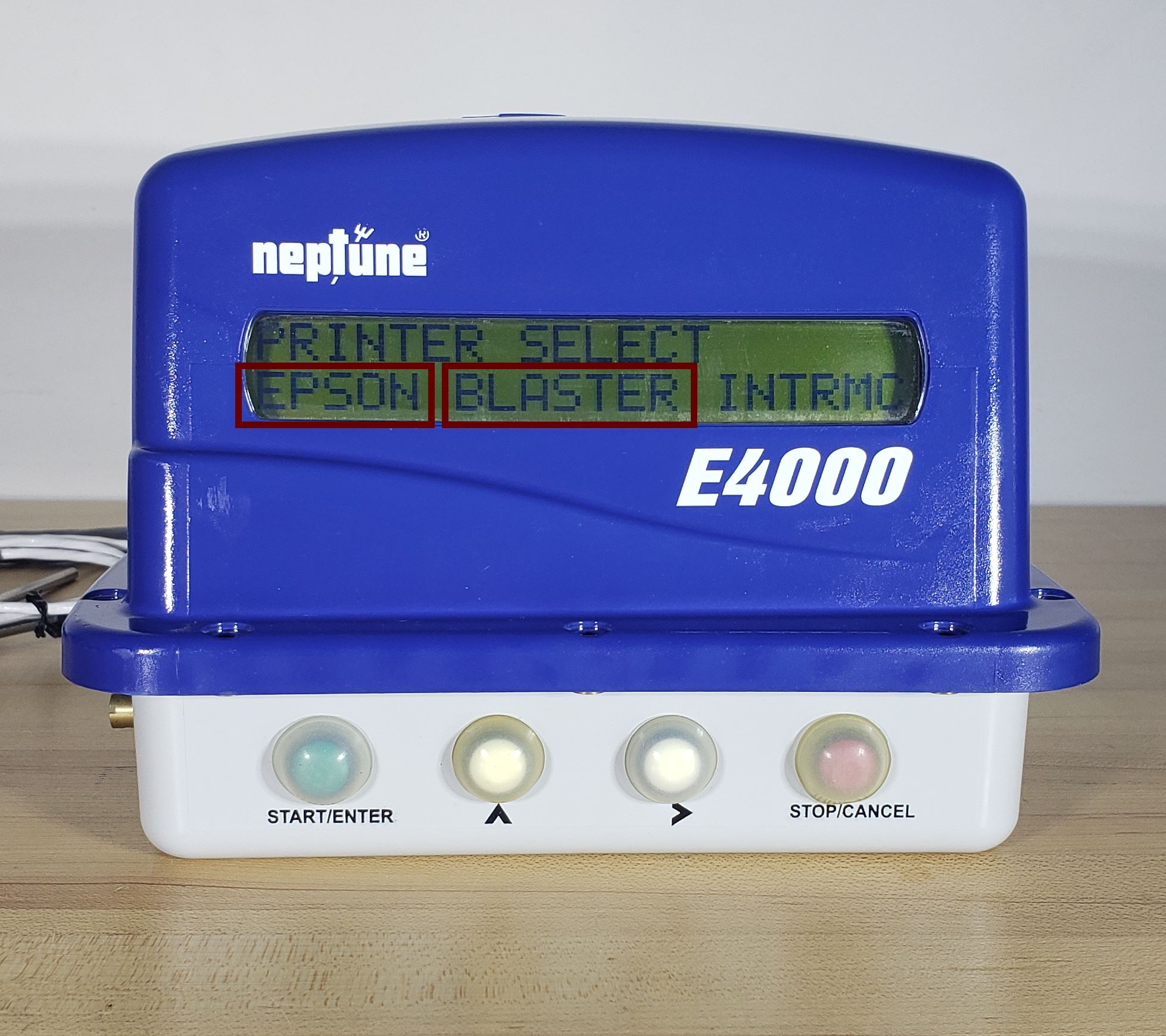

6. Use the Arrow > button to select the printer you are connecting to and then press the Start/Enter button. Please use this table below to know which printer option to select.

   Printer you are using	Printer selection
   Epson TM-U295 Slip Printer	Epson
   Epson TM-T88 Roll Printer	Epson
   Zebra RW420/ZQ520/ZQ521	Epson
   Cognitive Blaster Printer	Blaster





7. On the first Baud Rate screen use the Arrow > button to select the More option and press the Start/Enter button.




8. On the second Baud Rate screen use the Arrow > button to select 9600 and then press the Start/Enter button.



9. On the Parity screen use the Arrow > button to select None and then press the Start/Enter button.




10. On the Handshaking screen use the Arrow > button to select the None option and then press the Start/Enter button.



11. You should be returned to the Com Ports screen and you have successfully setup the printer type on your Neptune E4000. Use the Stop/Cancel button to navigate back to to the main screen.
