How to print a shift ticket from a Neptune E4000 meter

Question:

How do I print a shift ticket on a Neptune E4000 meter?


Environment:

  • New Mobile Delivery
  • Neptune E4000

Answer:

Please follow the steps below to print a shift ticket on a Neptune E4000 register.

  1. First navigate to the main menu. You can press Stop/Cancel button several times to back all the way out to the main menu.

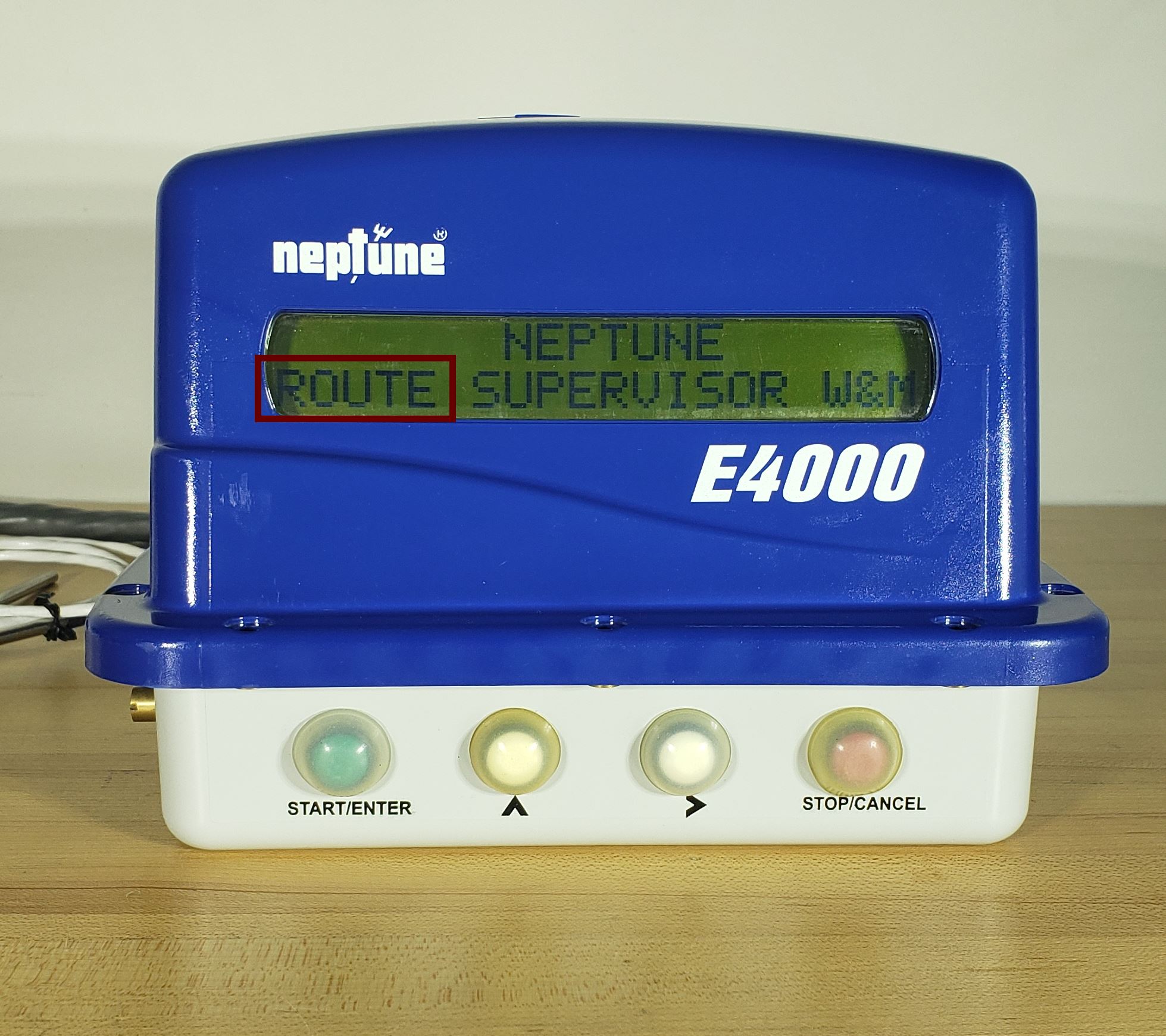

  2. On the main menu use the Arrow > button to select Route until it is flashing and press the Start/Enter button.

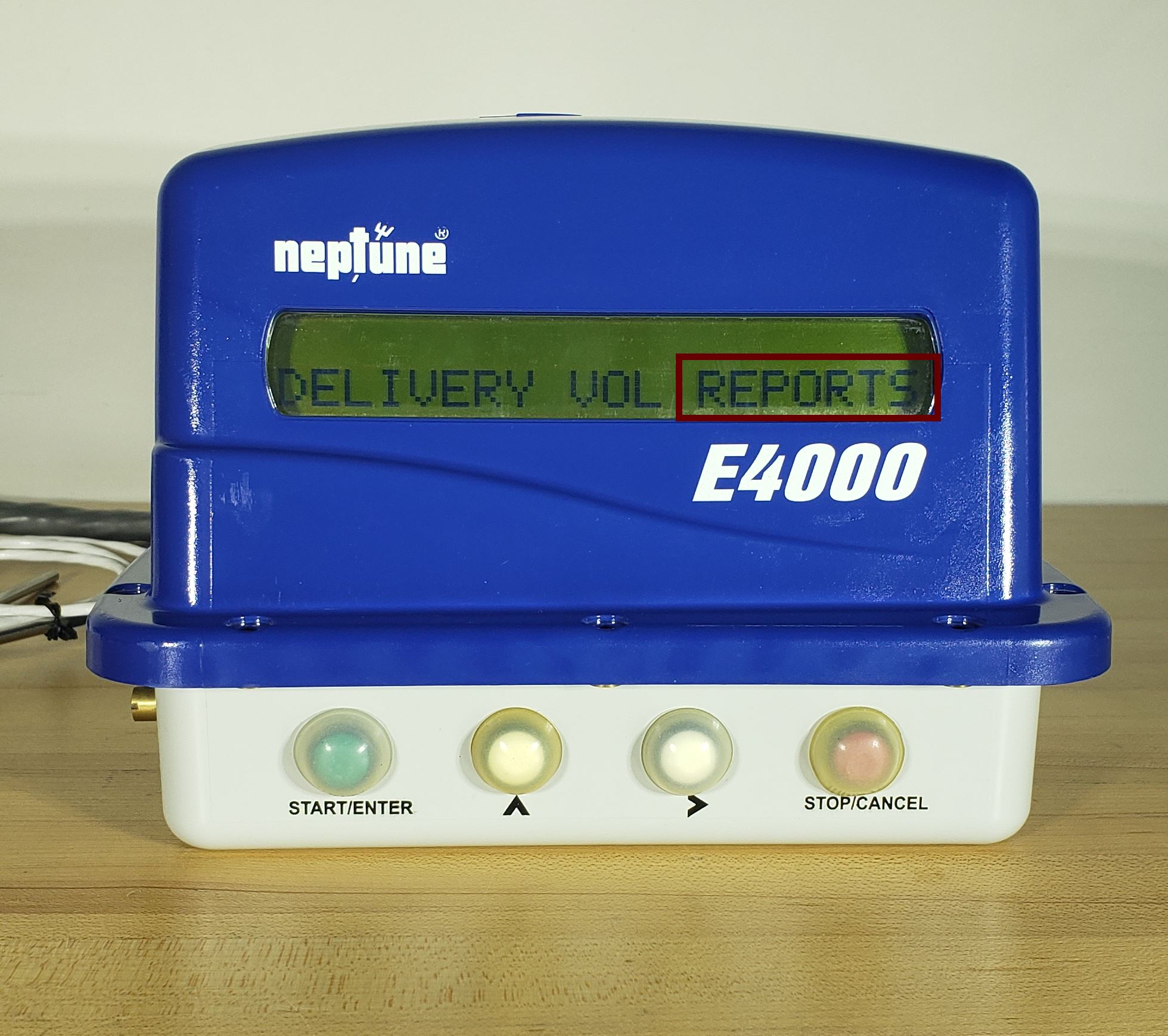

  3. Then use the Arrow > button to select Reports and press the Start/Enter button.

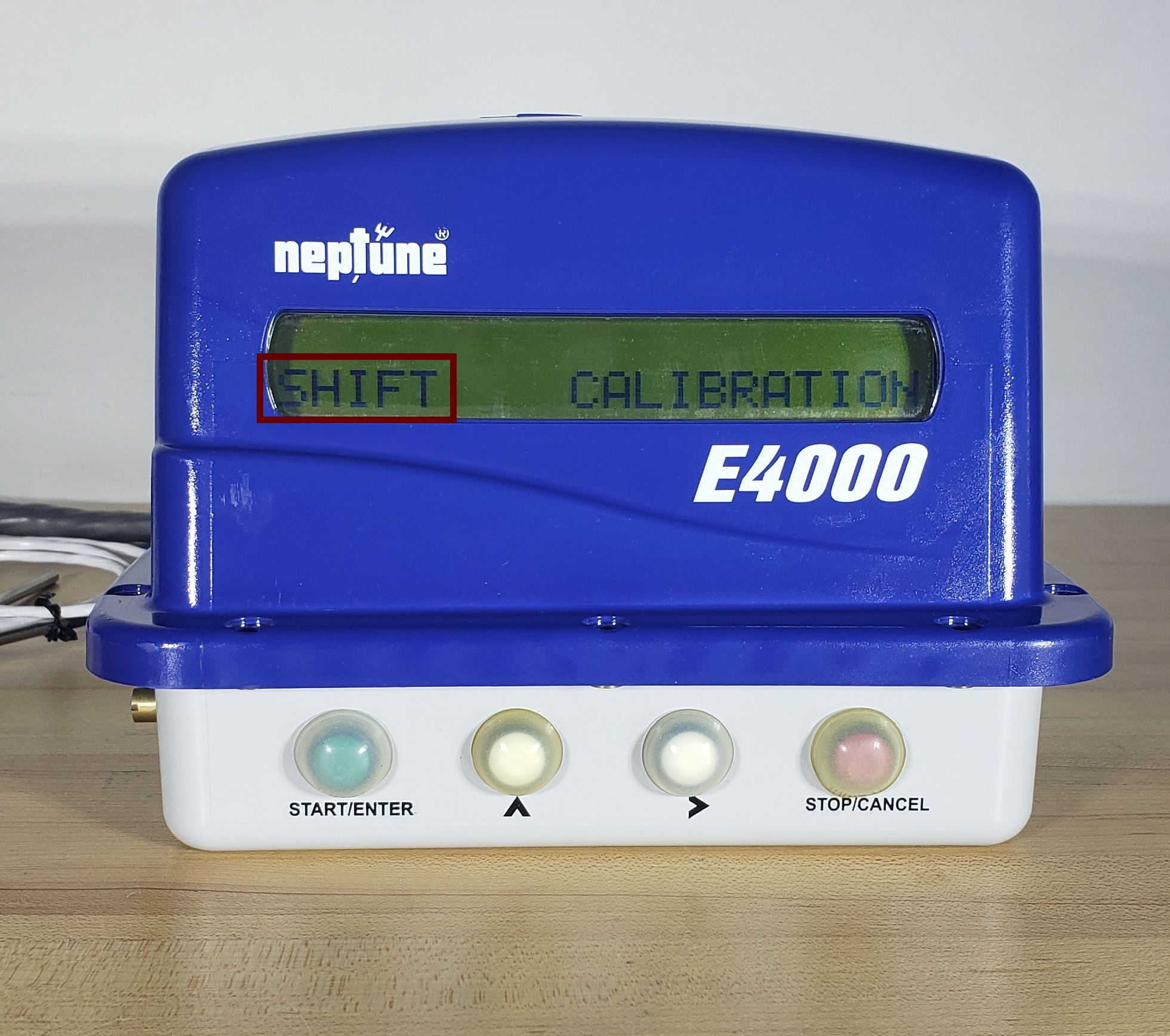

  4. Then use the Arrow > button to select Shift and press the Start/Enter button.

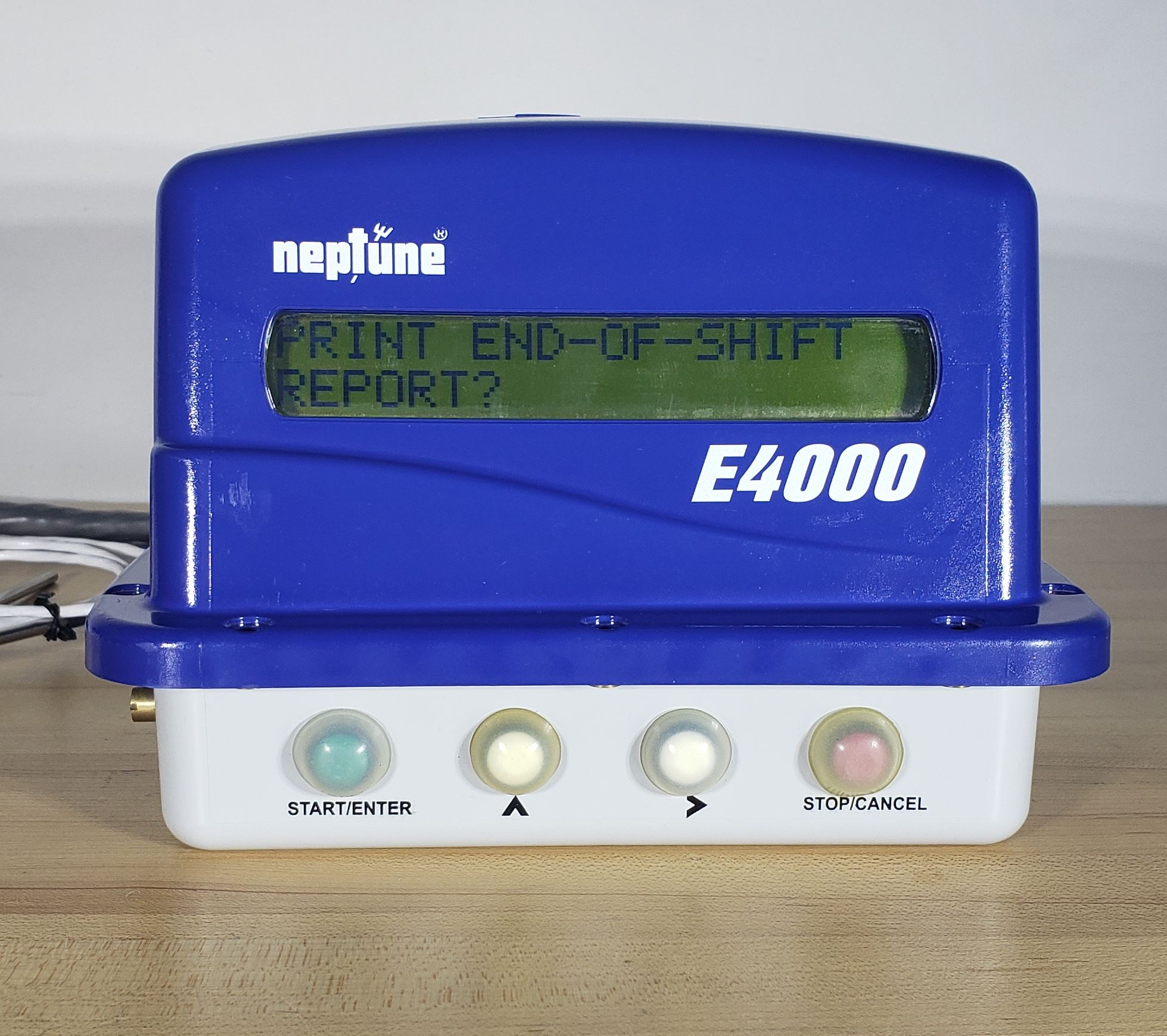

  5. Press the Start/Enter button when you are prompted with "Print End-Of-Shift Report?" to print the E4000's shift ticket.


  6. You should see "--- Printing ---" on the screen and the shift ticket should start printing within a few seconds.

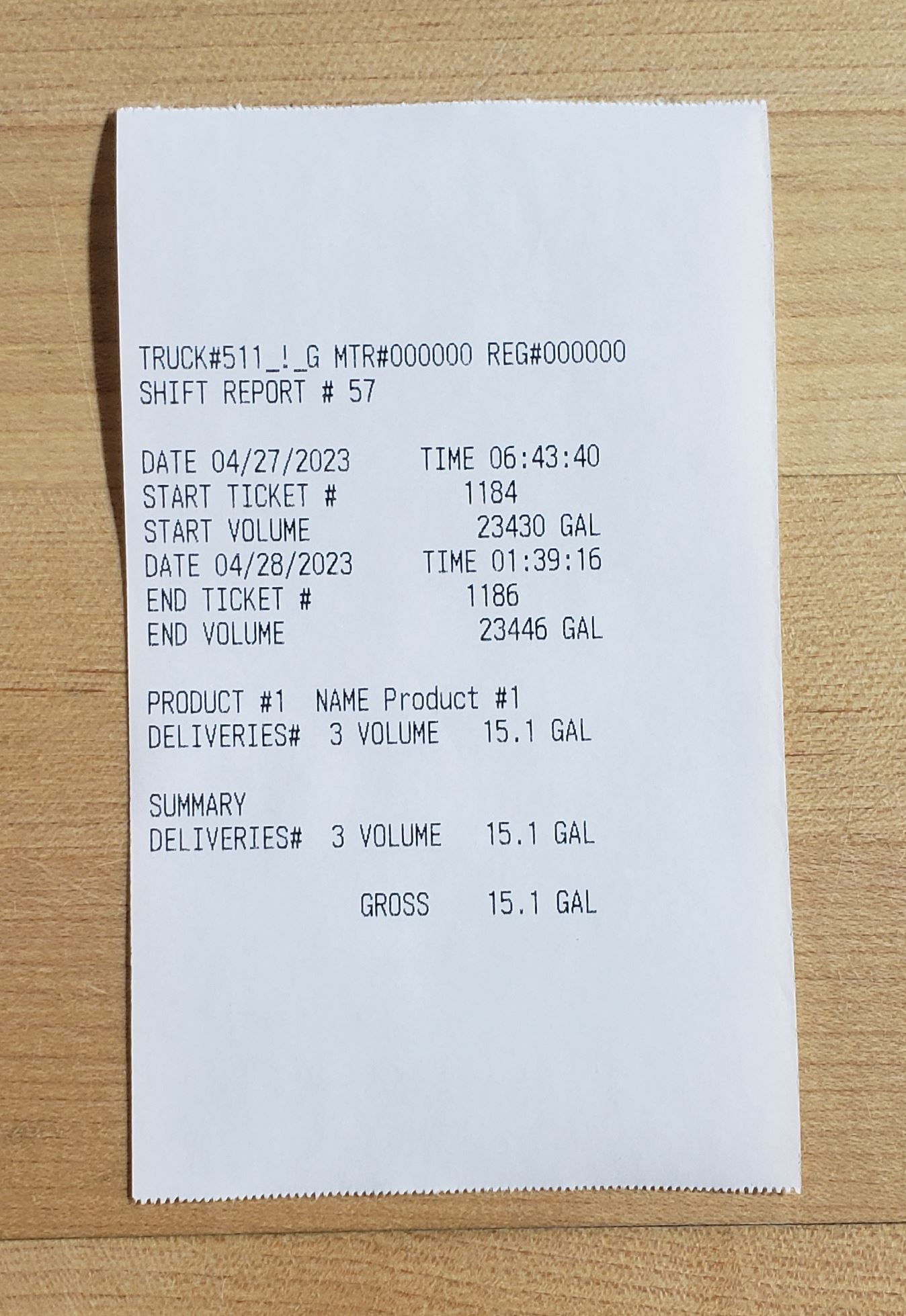

  7. Here is an example of an E4000 shift ticket.


  8. Press the Stop/Cancel button a few times to back out to the main screen.
