Question:
How do I configure the HHC port on a Neptune E4000 meter?
Environment:
- New Mobile Delivery
- Neptune E4000
Answer:
Please follow the steps below to configure the printer type on a Neptune E4000 register. You will need to know the Supervisor password to enter into the setup menu.
- First navigate to the main menu. You can press Stop/Cancel button several times to back all the way out to the main menu.

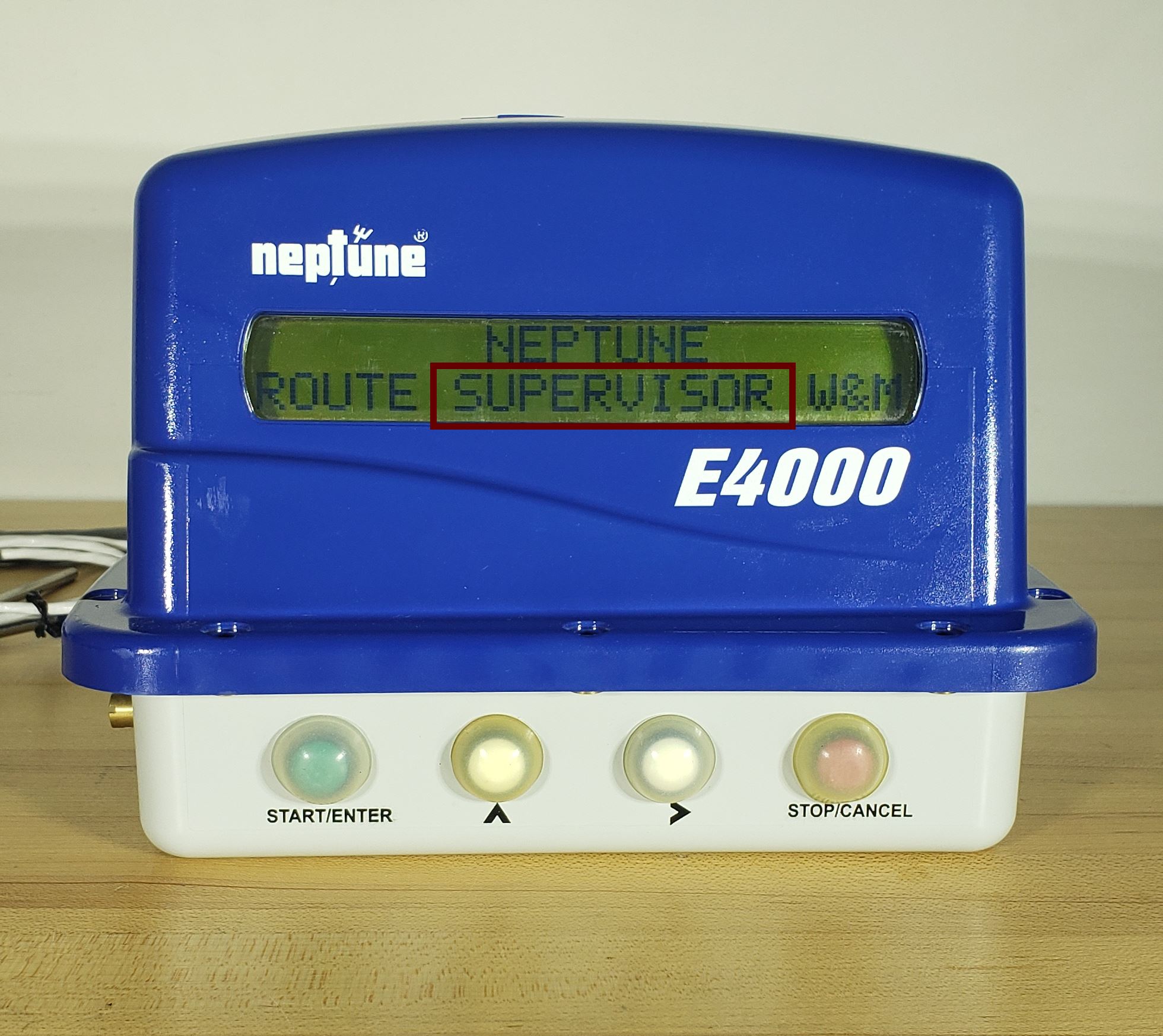

- On the main menu use the Arrow > button to select Supervisor until it is flashing and press the Start/Enter button.

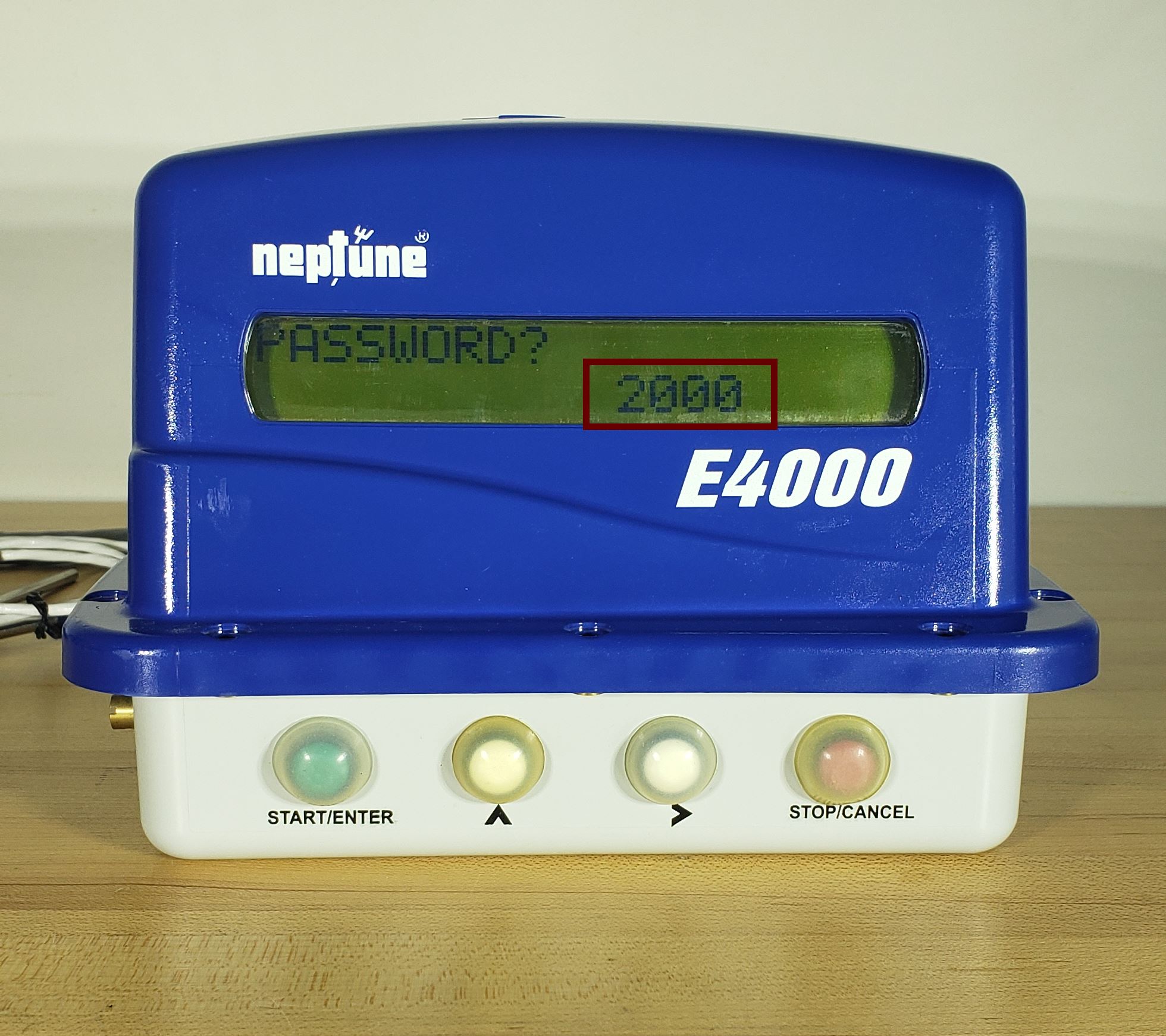

- Enter in the Password by using the Arrow > and Arrow ^ buttons. Press Start/Enter when finished. The factory default password is 2000.
- Navigate through the setup menu using the Arrow > button until you get to COM Ports and press the Start/Enter button.

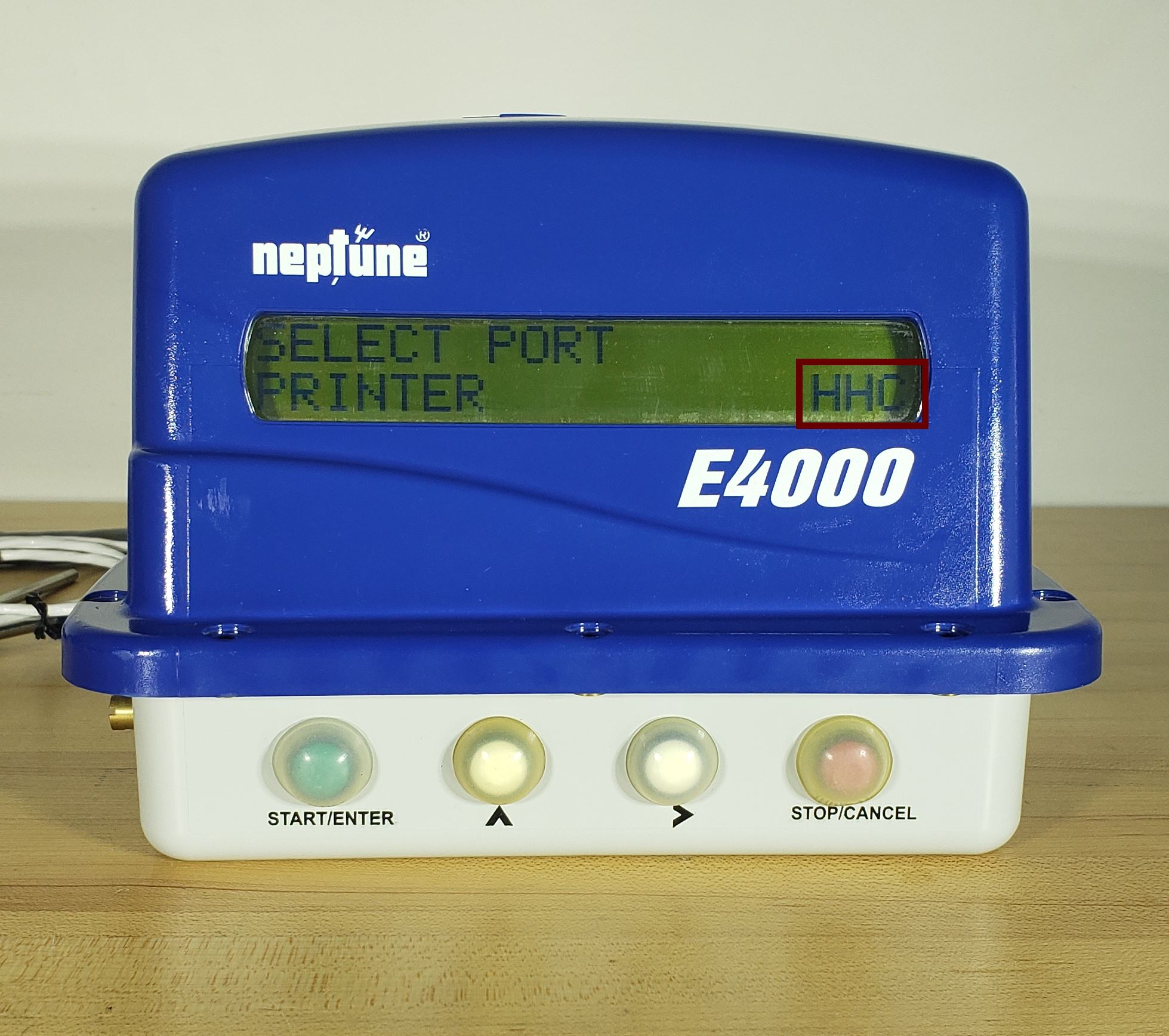

- Use the Arrow > button to select HHC and then press the Start/Enter button.
- On the first Baud Rate screen use the Arrow > button to select the More option and press the Start/Enter button.
- On the second Baud Rate screen use the Arrow > button to select 9600 and then press the Start/Enter button.
- On the Parity screen use the Arrow > button to select None and then press the Start/Enter button.
- You should be returned to the Com Ports screen and you have successfully setup the printer type on your Neptune E4000. Use the Stop/Cancel button to navigate back to to the main screen.
