Article Summary:
This article shows you the External wiring and configuration for the dual LCR.iQ network setup. The dual LCR.iQ registers are setup in a Primary/Secondary configuration. The two registers are connected by a shielded 22awg 4 wire for network communication. The Primary register (Meter 1) will also have the 25 pin serial cable that connects to the Lap Pad Adapter for Printer and Bluetooth adapter connections.
Environment:
- Cargas Energy
- New Mobile Delivery
- Liquid Controls LCR.iQ register

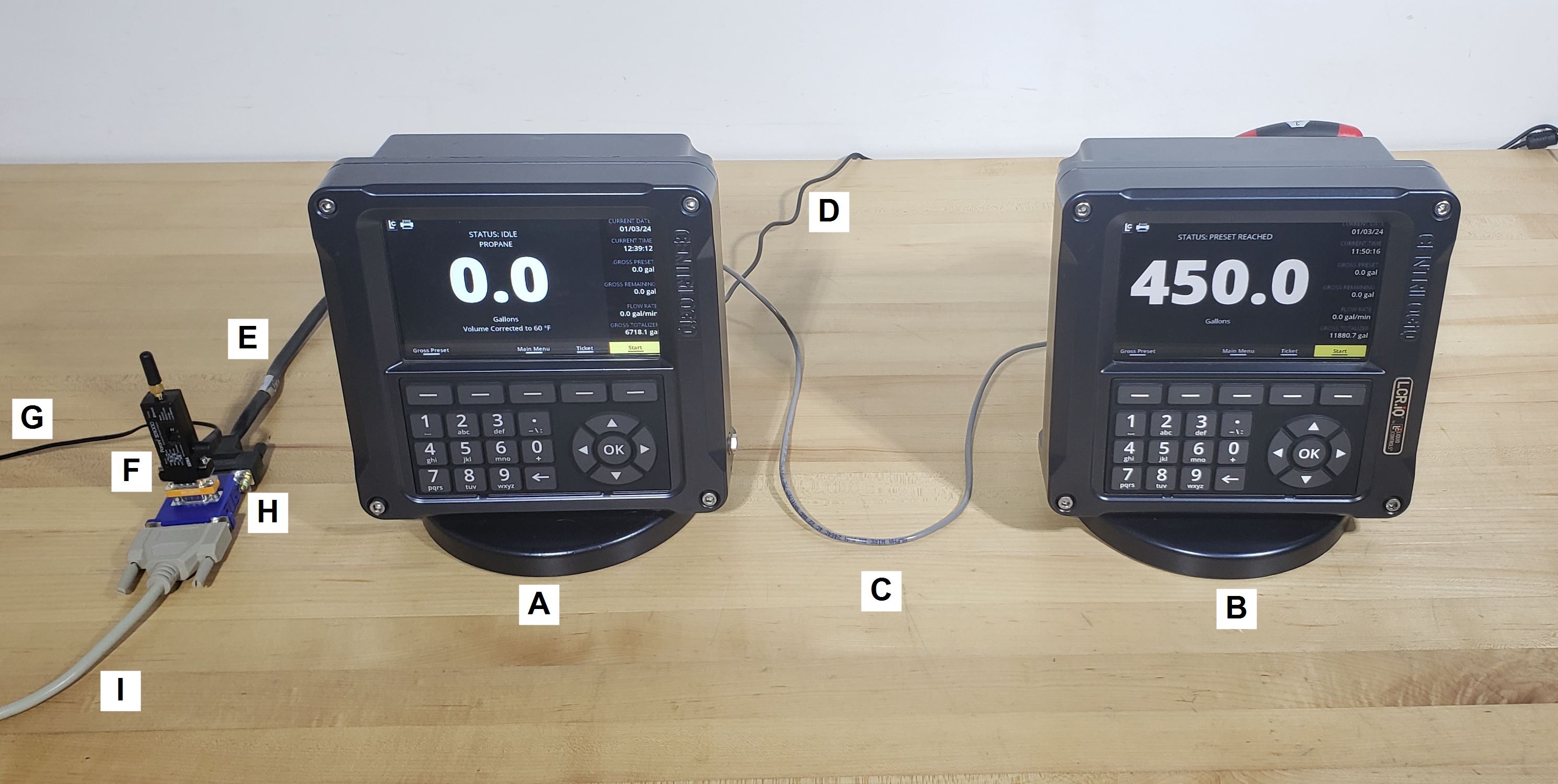

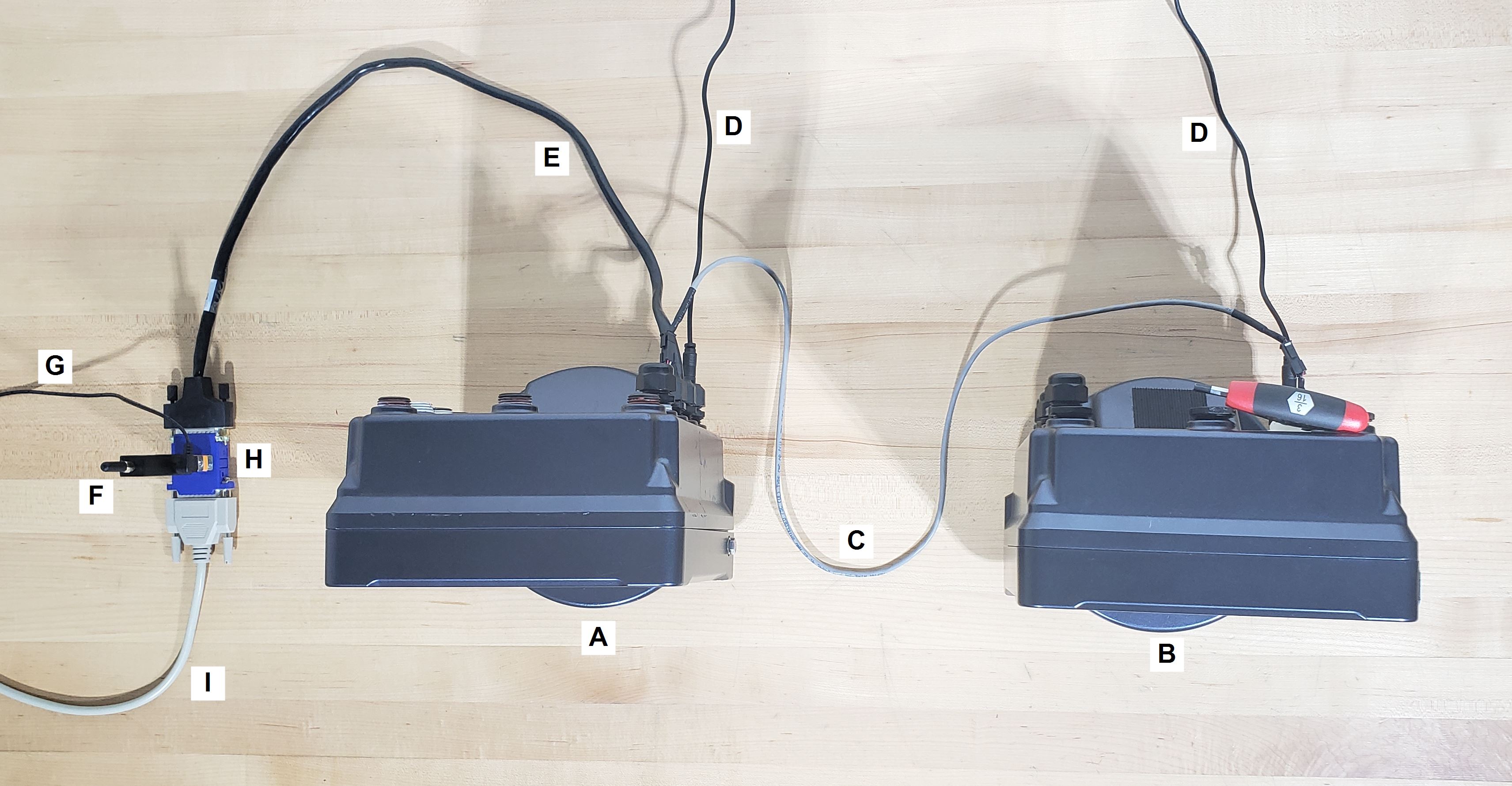

Overview:
| A | LCR.iQ Register 1 | F | Parani Bluetooth Adapter |
| B | LCR.iQ Register 2 | G | Parani power cable |
| C | LCR.iQ Network cable (shielded 22/4) | H | LCR.iQ Lap Pad Adapter |
| D | LCR.iQ Register power cable | I | 25pin Serial cable to printer |
| E | LCR.iQ 25pin COM0 & COM1 cable |
Next Step:
Additional Info:
- Back to the beginning - Dual LCR-iQ Meter Configuration Guide - LCR.iQ Network
