Liquid Controls LCR iQ Single Register Configuration

Question:

• How do I configure a Liquid Controls LCR iQ meter with Mobile Delivery

• This article will help you configure a single LCR iQ register to communicate with the Mobile Delivery devices.

• This is most often completed by a truck shop as it requires putting the meter in configuration mode and possibly opening the register.

Environment:

• Cargas Energy
• Single Liquid Controls LCR iQ Register

Answer:

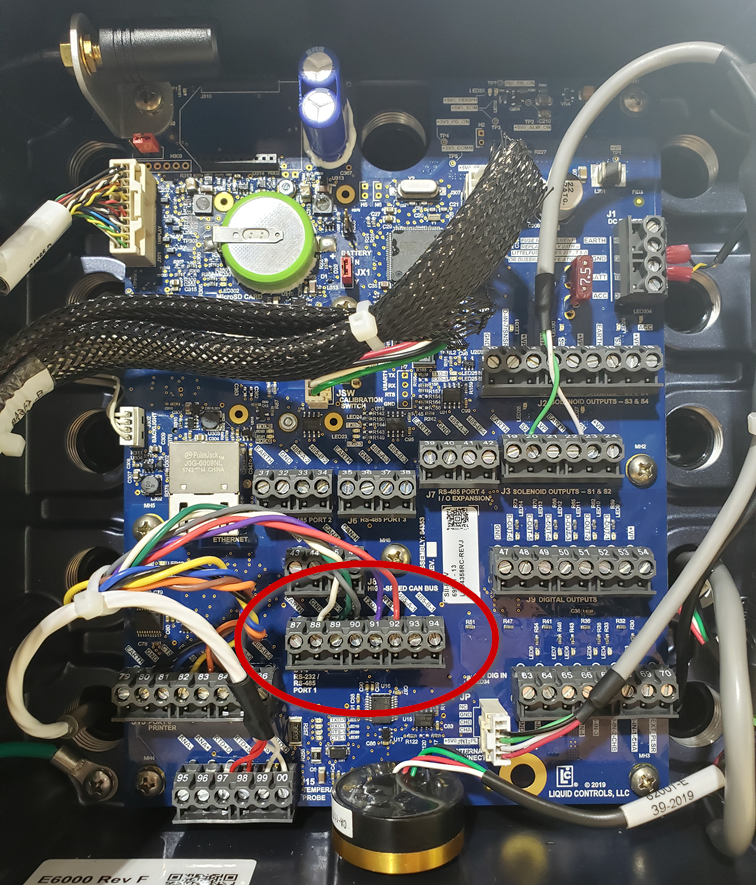

• The register must have wired correctly internally.

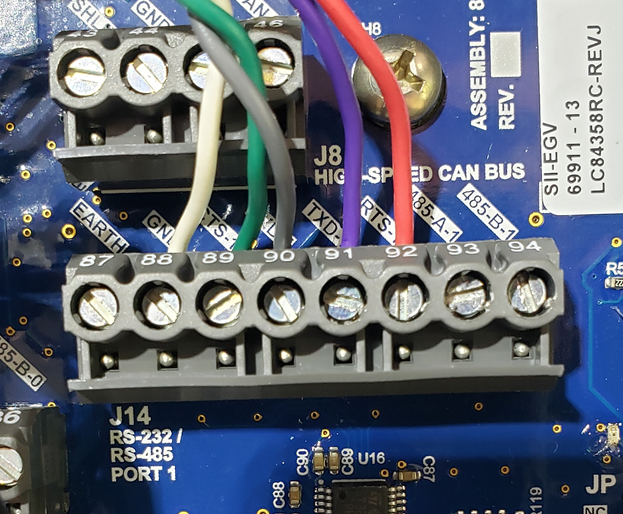

  COM Port 1 is on Terminal Block  J14 on the I/O Board.


  the Violet wire must be on Terminal 91 and the Red wire must be on Terminal 92



• In the I/O Setup Menu - COM0 must be setup for:
  Printer with an RS232 connection type and Baud Rate of 9600

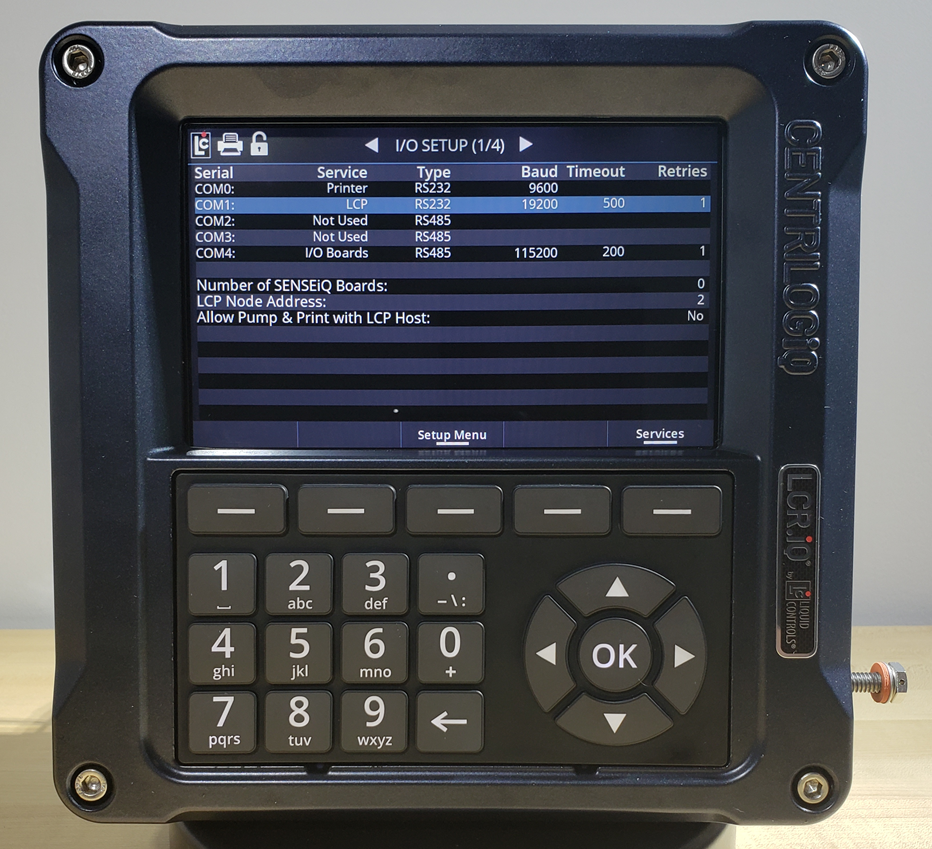

• In the I/O Setup Menu COM1 Must be setup for:
  LCP with an RS232 connection type - Baud Rate of 19200 - Timeout of 500 - Retries of 1

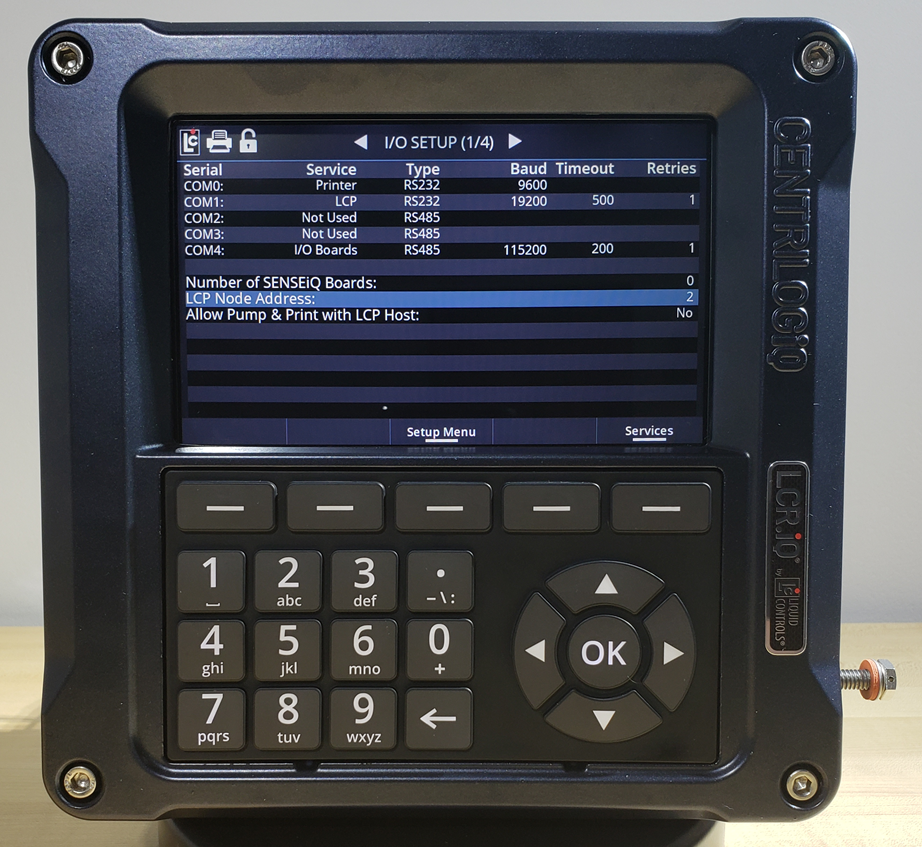

• The default LCP Node Address setting from the factory is Node 250 and you will need to know the specific Node number that your LCR-II is calibrated to so that it can be selected during truck setup.
  (Here in this example you can see we have this meter setup for Node 2)



• Printer and LCP Services need to be turned on.

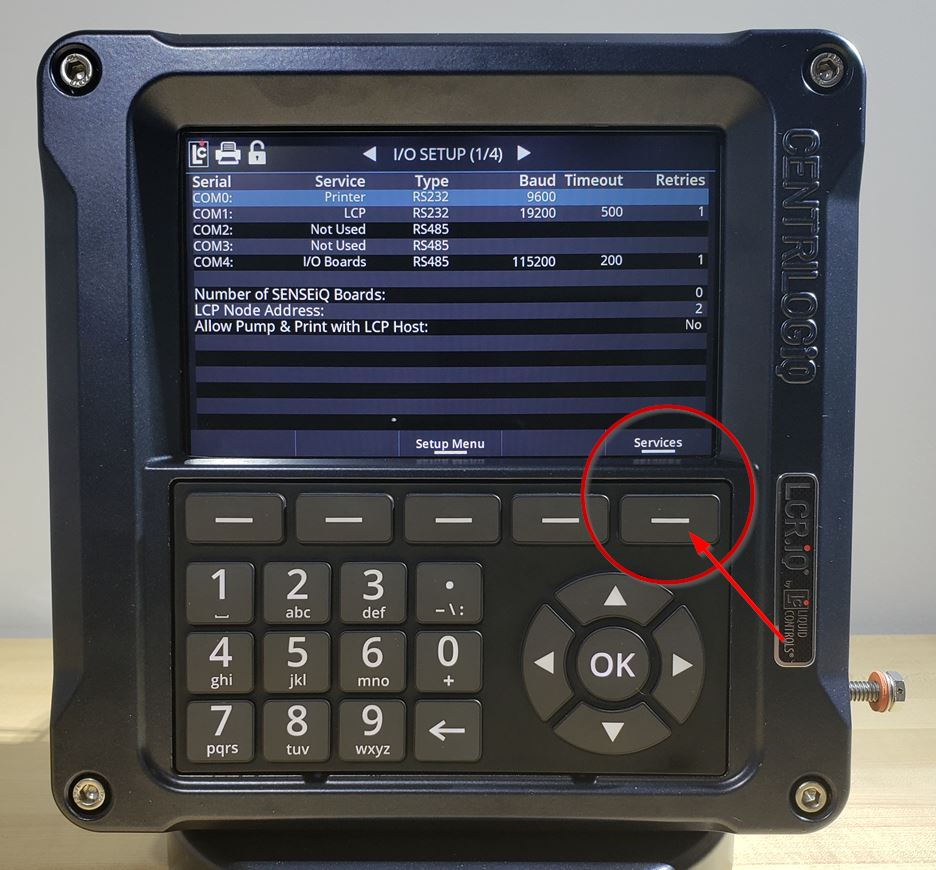

  To make sure these are turned on press the Services button when you are on the I/O Setup Screen.

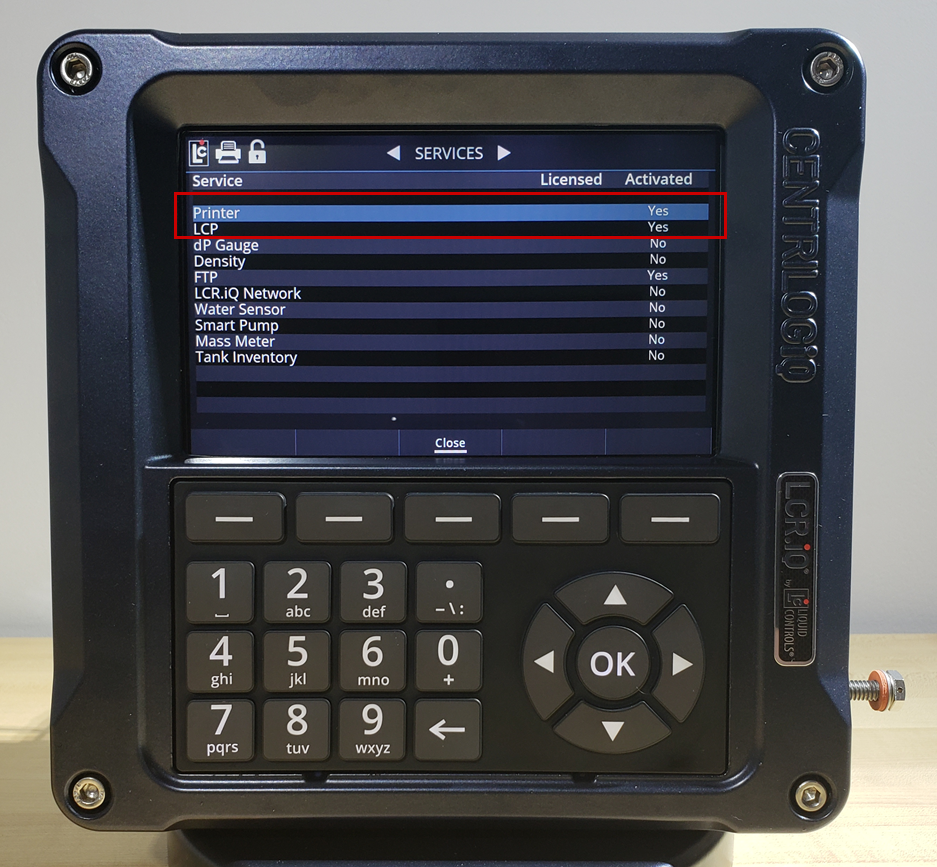

  Make sure that Printer and LCP are both Activated by being set to Yes in the Services screen
